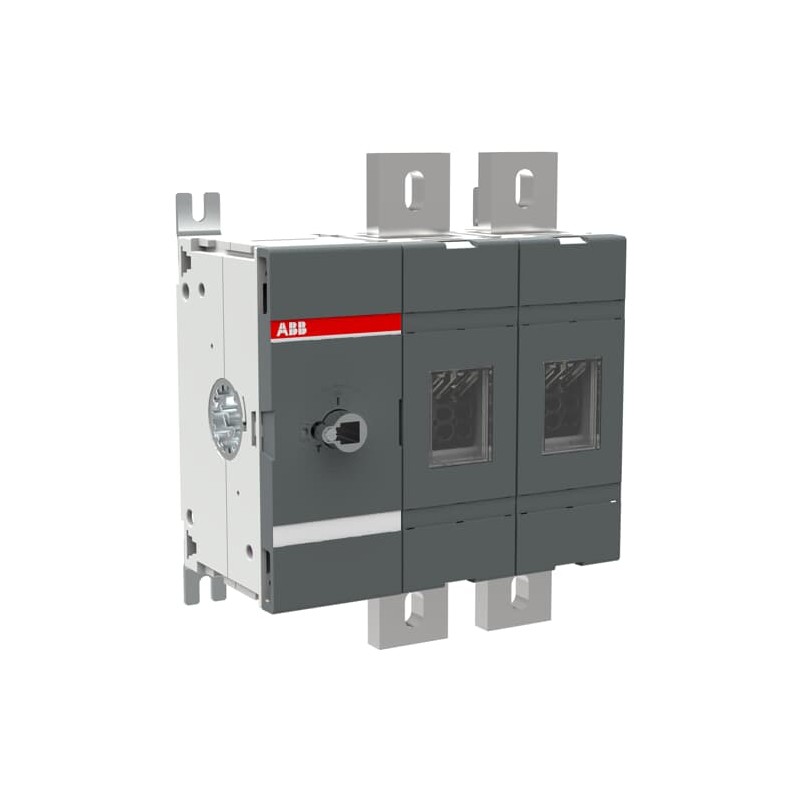

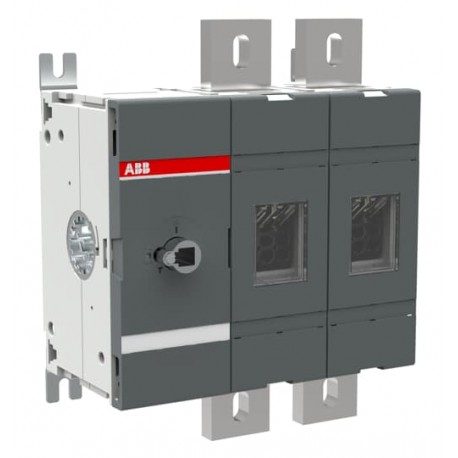

1SCA106135R1001 ABB Disconnector switch OT1250E02

Reference: 1SCA106135R1001

Manufacturer: ABB

Description:

Disconnector switch OT1250E02

OT1250E02 SWITCH-DISCONNECTOR

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 728,90 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions	1SCC301120M0201
Environmental Information	1SCC301233D0201
Environmental Product Declaration - EPD	1SCC301300D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information	1SCC301020C0201
Instructions and Manuals	1SCC301047M0213
Mechanical Drawings	1SCC301701F0001
	1SCC301700F0001
	OT1250E02.igs
Environmental Product Declaration - EPD	1SCC301300D0201
Environmental
Degree of Protection	Front IP00
Environmental Information	1SCC301233D0201
Pollution Degree	3
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country or Territory of Origin	Finland
Dimensions
Product Net Width	254.5 mm
Product Net Height	306 mm
Product Net Depth / Length	145.5 mm
Product Net Weight	10.5 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	400 mm
Package Level 1 Depth / Length	435 mm
Package Level 1 Height	170 mm
Package Level 1 Gross Weight	11.8 kg
Package Level 1 EAN	6417019398877
Technical
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 1250 A
Conventional Thermal Current (I_the)	Fully Enclosed 1250 A
Degree of Protection	Front IP00
Distance Between Phases	Standard
Handle Type	Handle and shaft not included
Mechanical Durability	6000
Mounting Type	Base mounting
Number of Poles	2P
Operating Mode	Front
Pollution Degree	3
Position of Line Terminals	Top In - Bottom Out
	Bottom In - Top Out
Power Loss	at Rated Operating Conditions per Pole 29 W
Rated Impulse Withstand Voltage (U_imp)	12 kV
Rated Insulation Voltage (U_i)	acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (I_e)	(380 ... 415 V) 1250 A
	(500 V) 1250 A
	(690 V) 1250 A
	(1000 V) 1250 A
Rated Operational Current AC-22A (I_e)	(380 ... 415 V) 1250 A
	(500 V) 1250 A
	(690 V) 1250 A
Rated Operational Current AC-23A (I_e)	(380 ... 415 V) 1250 A
	(500 V) 1250 A
	(690 V) 1250 A
Rated Operational Power AC-23A (P_e)	(400 ... 415 V) 710 kW
	(500 V) 900 kW
	(690 V) 1200 kW
Rated Operational Voltage	Main Circuit 1000 V
Rated Short-Circuit Making Capacity (I_cm)	(690 V) 110 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	for 1 s 50 kA
Special Functions	No
Standards	IEC 60947-3
Switches Operating Mechanism	Mechanism at the End of the Switch
	02 (Left Side)
Terminal Type	Lug terminals
Tightening Torque	acc. IEC 60947-1 50 … 75 N·m
Technical UL/CSA
Tightening Torque	acc. IEC 60947-1 50 … 75 N·m
Certificates and Declarations
A2L Certificate – IEC	1SCC301338D0201
Declaration of Conformity - CE	1SCC301155D2704
DNV GL Certificate	1SCC301184D0203
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122233
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA106135R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)

Feature valueYes

Feature nameVersion as maintenance-/service switch (EF006986)

Feature valueYes

Feature nameVersion as safety switch (EF006985)

Feature valueNo

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo

Feature nameVersion as reversing switch (EF009408)

Feature valueNo

Feature nameNumber of switches (EF005586)

Feature value1

Feature nameMax. rated operation voltage Ue AC (EF007355)

Feature value1000 V

Feature nameRated operating voltage (EF001435)

Feature value1000 V

Feature nameRated permanent current Iu (EF001389)

Feature value1250 A

Feature nameRated permanent current at AC-23, 400 V (EF011777)

Feature value1250 A

Feature nameRated permanent current at AC-21, 400 V (EF009165)

Feature value1250 A

Feature nameRated short-time withstand current lcw (EF007050)

Feature value50 kA

Feature nameRated operation power at AC-23, 400 V (EF007027)

Feature value710 kW

Feature nameSwitching power at 400 V (EF009166)

Feature value710 kW

Feature nameNumber of poles (EF001391)

Feature value2

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameMotor drive optional (EF007386)

Feature valueNo

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameVoltage release optional (EF007491)

Feature valueNo

Feature nameDevice construction (EF008240)

Feature valueComplete device in housing

Feature nameSuitable for front mounting 4-hole (EF007247)

Feature valueNo

Feature nameSuitable for front mounting centre (EF007248)

Feature valueNo

Feature nameSuitable for distribution board installation (EF007262)

Feature valueYes

Feature nameType of control element (EF006976)

Feature valueLong turning handle

Feature nameInterlockable (EF006281)

Feature valueNo

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameDegree of protection (IP), front side (EF003118)

Feature valueIP00

Feature nameDegree of protection (NEMA) (EF011959)

Feature valueOther
