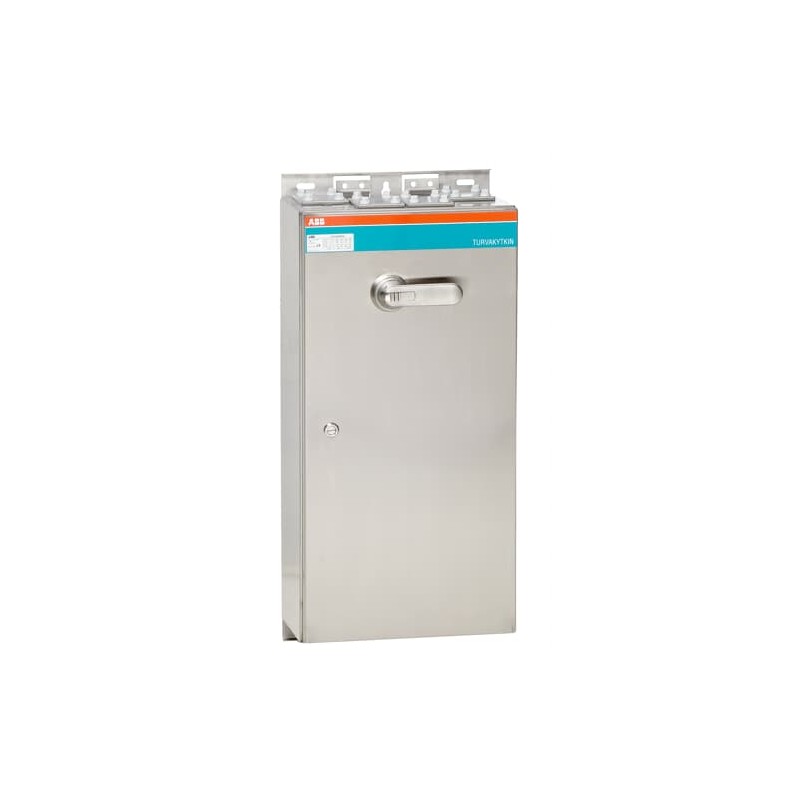

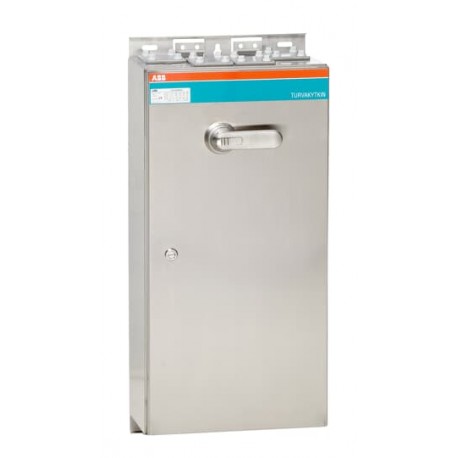

1SCA102320R1001 ABB Interruption. OT250ESUR3TZ box security
1SCA102320R1001
ABB
Interruption. OT250ESUR3TZ box security
Switch box safety OT250ESUR3TZ
OT250ESUR3TZ Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | e949bdbb-2025-49b6-b21b-c73e0061766a Finland |
| Simplified SCIP | 6d93a75c-377e-4a59-8df3-bd798bb88467 Germany |
| 4e0fb26f-e1d4-4827-a69a-0643148300a6 Poland | |
| b6005bf3-84a9-4213-8e04-ddc8d0f53b3d Belgium | |
| 81e19763-a808-48e6-9619-88723638f1a8 Hungary | |
| fc240c6c-6189-4617-a0c9-515debd5e150 Spain | |
| 4d56621f-cec0-4c8c-831c-e179873ee67e Poland | |
| 515c5ee0-43fe-4a50-ba10-b8a9d5d62106 Greece | |
| 3459213c-2f78-48c6-8a5b-88f118332064 Bulgaria | |
| f63803e1-45c5-4a57-8718-2c34dde4672b Portugal | |
| 003ca4de-8e6b-452d-bed8-d498d3e53999 Estonia | |
| 64ffb951-d29e-4f53-9a24-d08bb9c70cde Sweden | |
| b00549aa-4ef2-4799-a29f-15bd2ae8a06a Hungary | |
| f8d347f1-2e7a-422d-9395-1487d8fc138f Czech Republic | |
| 8f3bf4b9-db6d-46bd-86fd-3612047a02f5 France | |
| abb16399-e9eb-4adb-945c-7bf13503dfcd Poland | |
| 46fcd1d3-f9d8-4fcd-948e-0f81d5a9698e Germany | |
| f9990e5f-53be-4d1d-9134-ac527a245e66 Germany | |
| d02dd6c5-90b7-4abc-98e3-072b563a308b France | |
| 148a8a9c-4986-423b-93af-337561535655 Sweden | |
| a9617ce0-755b-4ea5-bc34-20d9663ca240 Netherlands | |
| 87c4ecce-d896-410a-a2fa-2a2f71b7eca6 Italy | |
| 69be95c8-f2d8-4dc9-9436-394c67d99015 Germany | |
| cbb76c9c-c6f4-432d-9350-b19c9faeb045 Denmark | |
| 1dd8f470-34c3-4425-bc54-21f9c431ae93 Norway | |
| 84b4ea62-8e75-41da-a7f6-59d8c09fe17b Germany | |
| 1b62abfd-7692-4e40-8e88-5ca140c46986 Belgium | |
| e382872e-6f00-4010-b6b1-866b442c3118 Croatia | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340008M0004 |
| Mechanical Drawings | OTRK804023PBL4R.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 800 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 31.75 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 910 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 33.9 kg |
| Package Level 1 EAN | 6417019371092 |
| Technical | |
| Cable Entry Position | Bottom/Bottom |
| Cable Outlets Per Side | Blank / 4xring-flange+ø25.5mm |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Stainless steel |
| Handle Color | Stainless Steel |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW |
| (500 V) 160 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642116 |
| E-Number (Sweden) | 3135029 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 132 kW |
| Switching power at 400 V (EF009166) | 132 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Grey |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA102320R1001 1SCA102320R1001 EN_1SCA102320R1001.pdf | 206 Kbytes |
|
