ABBManual Switches1SCA022828R1000 ABB Int. Boxed disconnector OT800ELCC3AZ

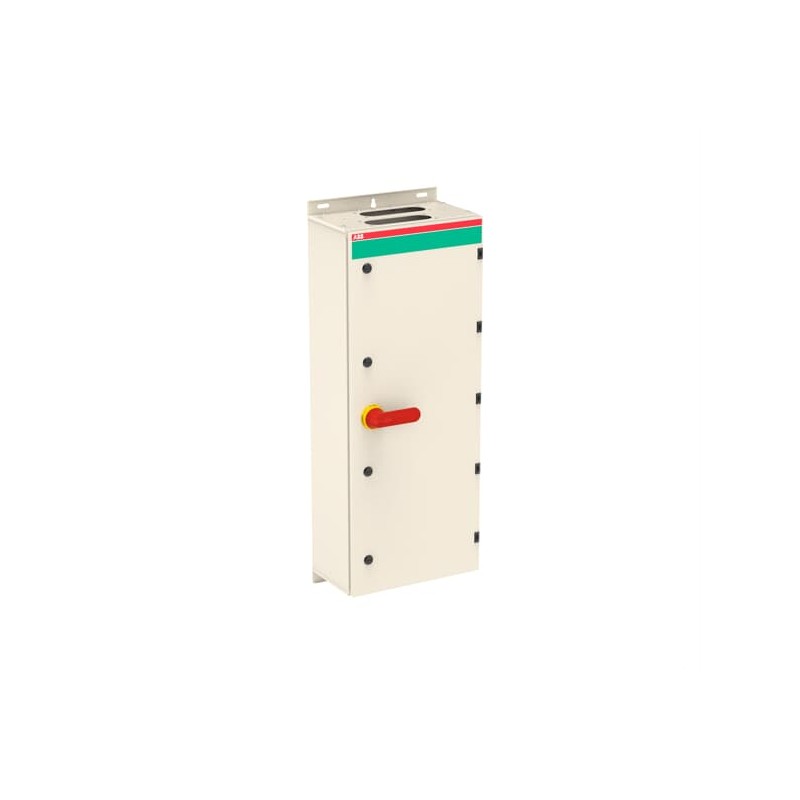

ABB 1SCA022828R1000 1SCA022828R1000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022828R1000 ABB Int. Boxed disconnector OT800ELCC3AZ

Reference: 1SCA022828R1000

Manufacturer: ABB

Description:

Int. Boxed disconnector OT800ELCC3AZ
OT800ELCC3AZ Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 2.561,01 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340016M0005
Mechanical DrawingsOTKM104023P2C.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width400 mm
Product Net Height1000 mm
Product Net Depth / Length230 mm
Product Net Weight28.55 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width415 mm
Package Level 1 Depth / Length1110 mm
Package Level 1 Height325 mm
Package Level 1 Gross Weight31 kg
Package Level 1 EAN6417019285450
Technical
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xC-flange / 2xC-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm
Connecting Capacity Main CircuitHole Diameter 12 mm
Screw Clamp / PE Terminal 4pc,25 ... 120 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 720 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialSteel sheet
Handle ColorRed / Yellow
Handle TypePistol handle
Impact Resistance RatingHousing IK09
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts2 NO, 1 NC
Neutral TypeNo Neutral Terminal
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO2
Number of Poles3P
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 40 W
Rated Conditional Short-Circuit Current (Inc)90 kA
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 720 A
(500 V) 720 A
(690 V) 720 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 720 A
(500 V) 720 A
(690 V) 720 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 400 kW
(500 V) 500 kW
(690 V) 710 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 80 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 20 kA
Recommended Screw DriverMain Circuit M12
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 75 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M12
Tightening TorqueMain Circuit 75 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340042D2703
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

ETIM for 1SCA022828R1000 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value720 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value720 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value20 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value400 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value400 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
