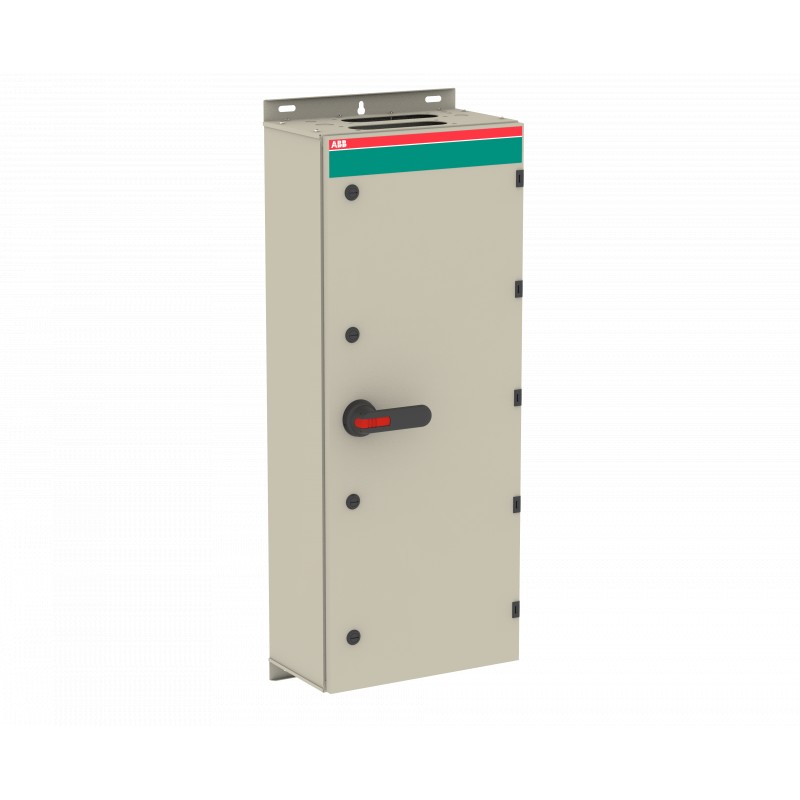

1SCA022828R0700 ABB Int. Boxed disconnector OT800ELCC3TZ
1SCA022828R0700
ABB
Int. Boxed disconnector OT800ELCC3TZ
OT800ELCC3TZ Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 015379b5-8d7d-47ac-bae4-1d69dc763810 Finland |
| Simplified SCIP | e74f227c-f1f8-4f81-b514-1d6f79246415 Germany |
| 8ed66ae8-01b8-440c-8752-30fb18c853ad Germany | |
| 18193631-27d0-432e-8f0a-08fefd4492b5 Belgium | |
| 1abc9493-ef1d-43ba-8a00-8ccd21e1dea5 France | |
| e09f0cc3-8147-4375-b5d7-caf00cb4ef3e Germany | |
| 4ea48930-4c23-4ecc-9821-9f5a2b554a9b Denmark | |
| 95199191-ef63-44a5-88d2-d880f7f0a996 Estonia | |
| 21369755-66d5-4472-a599-74c1acee6772 Germany | |
| 485368ed-0b17-4225-b2cf-6b4c36aeab8a Germany | |
| 4bafa168-f578-4715-8061-7db2eb2a3143 Sweden | |
| f1167c23-9f64-4e47-9eee-34010e480dd9 Sweden | |
| b3cc91ef-ba3e-422e-8d7c-cd71c9baadbf Bulgaria | |
| 33a6988f-1ccb-4730-94ac-c0c548227df3 France | |
| 0ad6a22b-ceb4-4285-9372-be658041a3de Poland | |
| 7ea9817d-9278-44c1-8bec-fa3f282963a2 Poland | |
| ce685ad8-2330-4e99-b897-411cfe5ca3f9 Spain | |
| 9f3c4924-91cc-4d82-af63-6ab5b38addc0 Norway | |
| 1ed4f1dc-9f37-4f0c-b269-d49ffdba5524 Belgium | |
| 4755c587-b49d-46a3-9e46-975f583bdf23 Czech Republic | |
| 2aa18f69-c7ef-4ba6-b090-c08495eff285 Croatia | |
| bc13fbcd-5a34-4bc2-8708-96abbb716946 Portugal | |
| 011bdd07-a69d-4d85-8502-7af1a1268cbd Greece | |
| 6bf3d89d-0b89-4041-a426-f0f35bbd5342 Italy | |
| a18ef458-832d-4343-aed9-c950765a3d1b Hungary | |
| 37f35b37-1905-4969-bfa1-cdda03dda226 Poland | |
| ee8e070b-012d-4235-8ea5-8d8b03e113a0 Netherlands | |
| 36b9131c-4c97-4718-820d-f0c0e5c11dd3 Hungary | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM104023P2C.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 29.35 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 1110 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 31.8 kg |
| Package Level 1 EAN | 6417019285429 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xC-flange / 2xC-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 720 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 40 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 720 A |
| (500 V) 720 A | |
| (690 V) 720 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 720 A |
| (500 V) 720 A | |
| (690 V) 720 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 400 kW |
| (500 V) 500 kW | |
| (690 V) 710 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 75 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340042D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642504 |
| E-Number (Sweden) | 3140615 |
