ABBManual Switches1SCA022825R7550 ABB Fuse switch OS800B03P

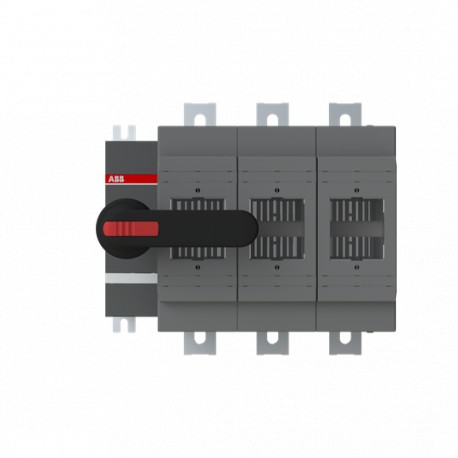

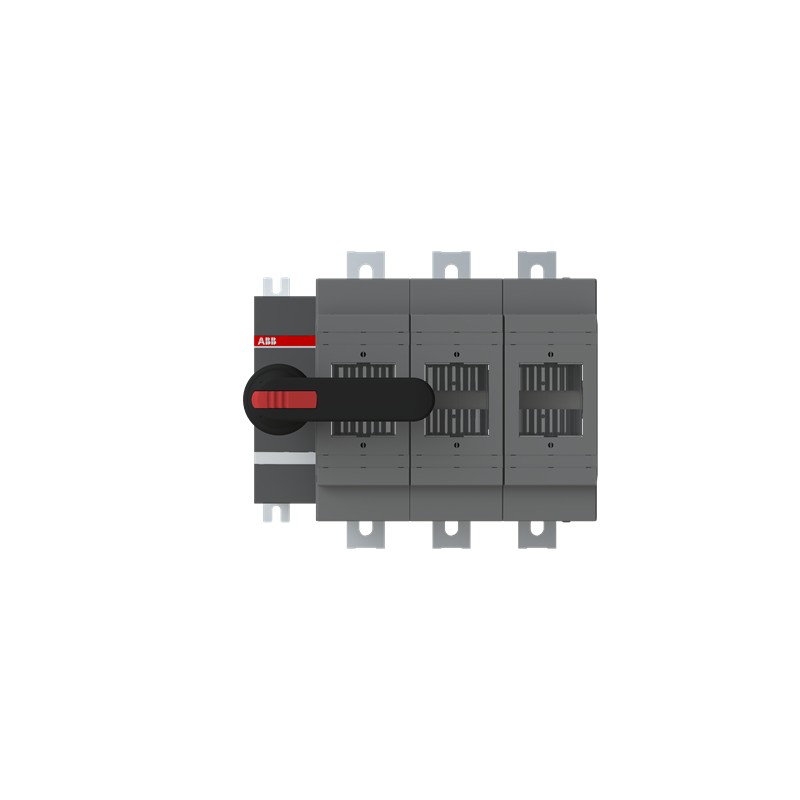

ABB 1SCA022825R7550 1SCA022825R7550 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022825R7550 ABB Fuse switch OS800B03P

Reference: 1SCA022825R7550

Manufacturer: ABB

Description:

Fuse switch OS800B03P
OS800B03P SWITCH FUSE

Categories:

  • Low-voltage industrial components > Fuse switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.274,67 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Environmental Product Declaration - EPD1SCC311202D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311016M0210
Mechanical Drawingsos800b03n3.stp
Environmental Product Declaration - EPD1SCC311202D0201
Environmental
Degree of Protectionacc. to IEC 60529 IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width343 mm
Product Net Height306 mm
Product Net Depth / Length233 mm
Product Net Weight13.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width328 mm
Package Level 1 Depth / Length365 mm
Package Level 1 Height260 mm
Package Level 1 Gross Weight13.5 kg
Package Level 1 EAN6417019283913
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 800 A
Conventional Thermal Current (Ithe)Fully Enclosed 720 A
Degree of Protectionacc. to IEC 60529 IP20
Fuse SizeC1-C3
Fuse SystemBritish Standard
Handle TypePistol handle
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 75 W
Rated Conditional Short-Circuit Current (Inc)(500 V) 100 kA
(690 V) 80 kA
Rated Current (In)Main Circuit 800 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(500 V) 800 A
(690 V) 800 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 800 A
(500 V) 800 A
(690 V) 800 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 800 A
(500 V) 800 A
(690 V) 800 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 250 kW
(400 V) 450 kW
(415 V) 450 kW
(500 V) 560 kW
(690 V) 710 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 18 kiloampere rms
StandardsIEC 60947-3
Switches Operating Mechanism03 (Left Side)
Terminal TypeLug terminals
Terminal Width39 mm
Tightening Torque50 ... 75 N·m
Technical UL/CSA
Tightening Torque50 ... 75 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
ATEX CertificateNo certification needed
CCC CertificateCCC OS630-800 2016
Declaration of Conformity - CE1SCC311112D2704
DNV GL Certificate1SCC311131D0203
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA022825R7550 Low-voltage industrial controls and switchgear (EC001040)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value720 A
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value710 kW
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value80 kA
Feature nameRated short-time withstand current lcw (EF007050)
Feature value18 kA
Feature nameSuitable for fuses (EF006692)
Feature valueShape C1-C3
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameCable entry (EF000537)
Feature valueOther
Feature nameEquipped with connectors (EF011696)
Feature valueYes
Feature nameSuitable for floor mounting (EF007243)
Feature valueNo
Feature nameSuitable for front mounting (EF007246)
Feature valueNo
Feature nameSuitable for busbar mounting (EF007259)
Feature valueYes
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature namePosition control element (EF009410)
Feature valueLeft
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
