ABBManual Switches1SCA022812R7690 ABB Int. Boxed disconnector OTP125BA6M

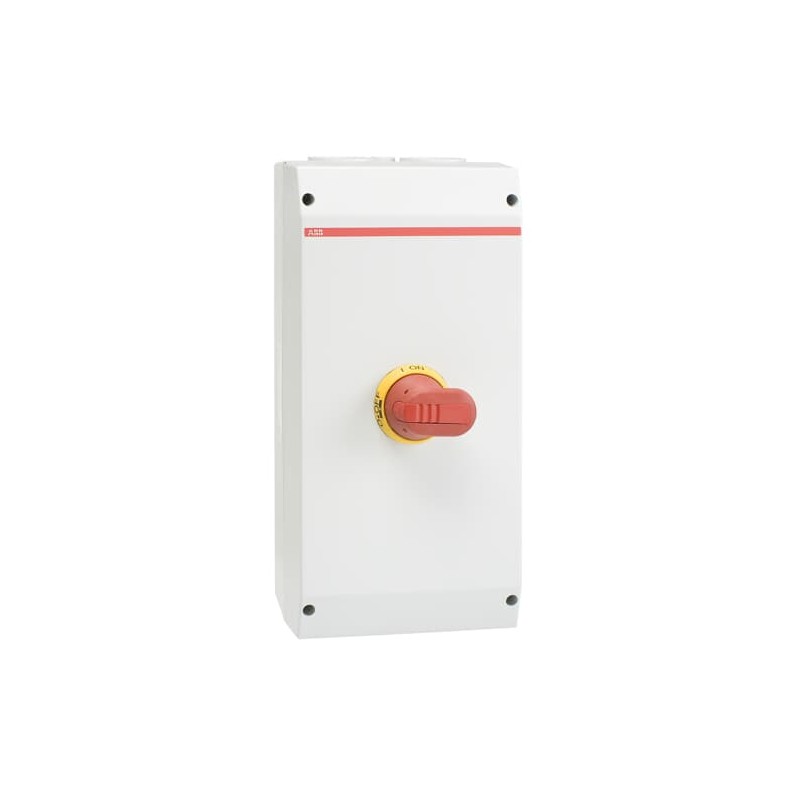

ABB 1SCA022812R7690 1SCA022812R7690 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022812R7690 ABB Int. Boxed disconnector OTP125BA6M

Reference: 1SCA022812R7690

Manufacturer: ABB

Description:

Int. Boxed disconnector OTP125BA6M
OTP125BA6M Enclosed Switch Disconnector

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 305,52 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPb4185607-8eba-465b-bbbd-1eaf372595e9 Finland
Simplified SCIPf0a541e8-91bb-4096-b437-45681bd91834 Germany
9c617643-b2e5-4a3a-9462-a5dbf02b5255 Germany
147e8f27-5a97-438c-89ea-1b69269d4ddb Portugal
308fb714-6cb2-42bc-b7e8-f6d0b02d272f Bulgaria
a2491aa6-81fc-40f2-9870-4c9c2005b909 Germany
e22e8e95-20e5-451d-a8b4-fd55f248260f Germany
37a03ece-18a6-4308-8a22-28ad996bf6e0 France
5488e95f-74e3-4934-b61d-87a239f61445 Hungary
33b5aca5-3fe7-45a2-8e3f-ee9514cb1787 Belgium
06fd5d65-3f24-459d-a02c-d0d507355ede Denmark
19690d18-8cdb-4e72-921e-28ab24705b82 France
ea5049bb-a63a-4975-83ea-3b12eae5e525 Poland
f8e7b741-0c33-4d31-b698-c7c57b283a45 Sweden
1f695634-ef88-4437-bf00-f0ccd1f4bb25 Sweden
7c4f4b89-87f4-4349-a8fd-2cd73ddea771 Italy
d1eac47f-b9d7-48ed-a2a9-2a4d9f6be284 Netherlands
0526d35a-78b1-4ab9-9bf6-d938af9c4143 Poland
67c964a1-6f99-429e-a6a3-a28982a67a3b Estonia
02c94d5d-4002-4d36-8c5a-d651b4f90f32 Hungary
1f8f7b7b-dc76-4814-b943-034de22cd72a Poland
c7ced8aa-1736-4656-a20f-80d2bffcadbb Spain
2b49039c-0882-4ab8-9d9c-3ac9d7d18314 Belgium
7148ff1d-de87-473a-98de-95923ca7b244 Norway
e94b44f0-85d4-47f4-86ba-c33471c5d1b0 Greece
ce57d5e3-51a1-4b9b-950e-4d0940189afb Croatia
2fd57fdc-a1b9-4627-ac97-2429f0d490f4 Germany
33af60cb-a7c2-4670-93a8-1e1ae02d67d6 Czech Republic
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340002M0012
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTP80GBA6B
Country or Territory of OriginFinland
Dimensions
Product Net Width200 mm
Product Net Height400 mm
Product Net Depth / Length140 mm
Product Net Weight3 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width213 mm
Package Level 1 Depth / Length417 mm
Package Level 1 Height197 mm
Package Level 1 Gross Weight3.2 kg
Package Level 1 EAN6417019274928
Technical
Cable Cross-Section10 ... 70 mm²
Cable Entry PositionTop and/or Bottom
Cable Outlets Per Side2xM50+M16 / 2xM50+M16
Connecting Capacity Main CircuitScrew Clamp 10 ... 70 mm²
Screw Clamp / PE Terminal 4pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 125 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorRed / Yellow
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts0 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO0
Number of Poles6P
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 6.3 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 125 A
(690 V) 125 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 90 A
(500 V) 70 A
(690 V) 50 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 45 kW
(500 V) 45 kW
(690 V) 45 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 3.6 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kA
Recommended Screw DriverMain Circuit Hexagon 4
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 6 N·m
Wire Stripping Length20 mm
Technical UL/CSA
Wire Stripping Length20 mm
Recommended Screw DriverMain Circuit Hexagon 4
Tightening TorqueMain Circuit 6 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA022812R7690 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value125 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value90 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value2.5 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value45 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value45 kW
Feature nameNumber of poles (EF001391)
Feature value6
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
