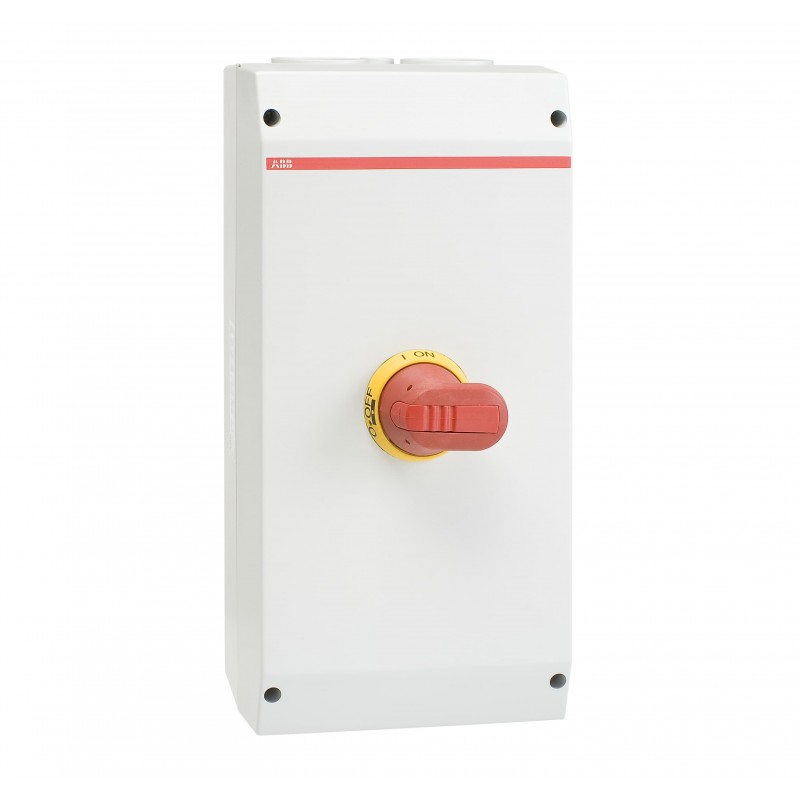

1SCA022812R4080 ABB Box disconnect switch OTP90A6M
1SCA022812R4080
ABB
Box disconnect switch OTP90A6M
OTP90A6M Safety switch
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 57f94368-24ae-4e4b-8547-a1f2e2bc92a5 Finland |
| Simplified SCIP | b85157b8-efc5-4540-8687-df0da550abf4 Germany |
| f8c3953e-747d-4054-a280-6023cf477aa7 Belgium | |
| 478fb6c9-c9f5-4495-9935-ed54b433bcae Germany | |
| 1af71adc-ae12-4880-9874-8fdc9b920125 Denmark | |
| d24fe1dc-67bb-4b27-aaaf-2c59c43e11a7 Norway | |
| d439b8c3-93fd-4b84-b51a-eaeed5649a9a Germany | |
| 33c81e68-4d7f-43b4-889c-e6df962637d1 Croatia | |
| af85dbf9-fbfa-4f7a-a92c-7b5aeb3b540f Poland | |
| bb967c26-a7ee-40e0-80d6-7bf96db9ca99 Hungary | |
| a19d2f3b-dde5-4d8d-baac-b16d0895fd00 Belgium | |
| edfaab45-5b08-4a65-8264-77dea2755b6d Spain | |
| 044e1fdd-8566-41f8-947a-df1a981fa31d Italy | |
| 54ff92ef-80b7-4f99-8eb4-2ad8785d3a36 Sweden | |
| 47736ff7-1ea2-46d0-bf56-1d1efd9931e1 France | |
| 407265e4-7680-4b3d-a6f1-9fffcc3dd50d Netherlands | |
| 9f73ad25-366e-404b-a208-a0f593250c75 Poland | |
| 161da807-dfd7-46dc-ae4c-07005a627184 Sweden | |
| 0dcf0af7-748b-4537-96c8-a130401601fd Poland | |
| a34d4814-15b4-43b3-a6f0-c29ba6eb62d4 Bulgaria | |
| 78763dd2-8c82-4c35-980a-7f70e706ec55 Portugal | |
| 96393167-d05b-4e3e-808e-74c64cdf4fb9 Greece | |
| dd9bd7d6-4f17-42ef-b709-88a37273bdfc Estonia | |
| c34f7de6-b480-4229-9082-ccf58a7094ec Hungary | |
| 8b457a9e-c016-4fcd-8bf9-f9708dcc2662 Czech Republic | |
| a3b5033b-c96e-48dd-ac7d-79a7c43914d4 France | |
| 9e08e0bd-0037-42d4-8719-ed35ebaec34b Germany | |
| 3215cf02-83fe-4abf-957f-a69254c3c1ae Germany | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340002M0012 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Last Ordering Date | 2026-08-31 All Countries |
| Replacement Product ID (NEW) | OTP80GA6B |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 200 mm |
| Product Net Height | 400 mm |
| Product Net Depth / Length | 140 mm |
| Product Net Weight | 3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 213 mm |
| Package Level 1 Depth / Length | 417 mm |
| Package Level 1 Height | 197 mm |
| Package Level 1 Gross Weight | 3.2 kg |
| Package Level 1 EAN | 6417019274553 |
| Technical | |
| Cable Cross-Section | 10 ... 70 mm² |
| Cable Entry Position | Top and/or Bottom |
| Cable Outlets Per Side | 2xM50+M16 / 2xM50+M16 |
| Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm² |
| Screw Clamp / PE Terminal 4pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 6P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.3 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A |
| (500 V) 125 A | |
| (690 V) 125 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 90 A |
| (500 V) 70 A | |
| (690 V) 50 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 45 kW |
| (500 V) 45 kW | |
| (690 V) 45 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | 20 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 20 mm |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| BV Certificate | 1SCC340018D0204 |
| Declaration of Conformity - CE | 1SCC340003D2704 |
| DNV GL Certificate | 1SCC340045D0203 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Norway) | 1428223 |
