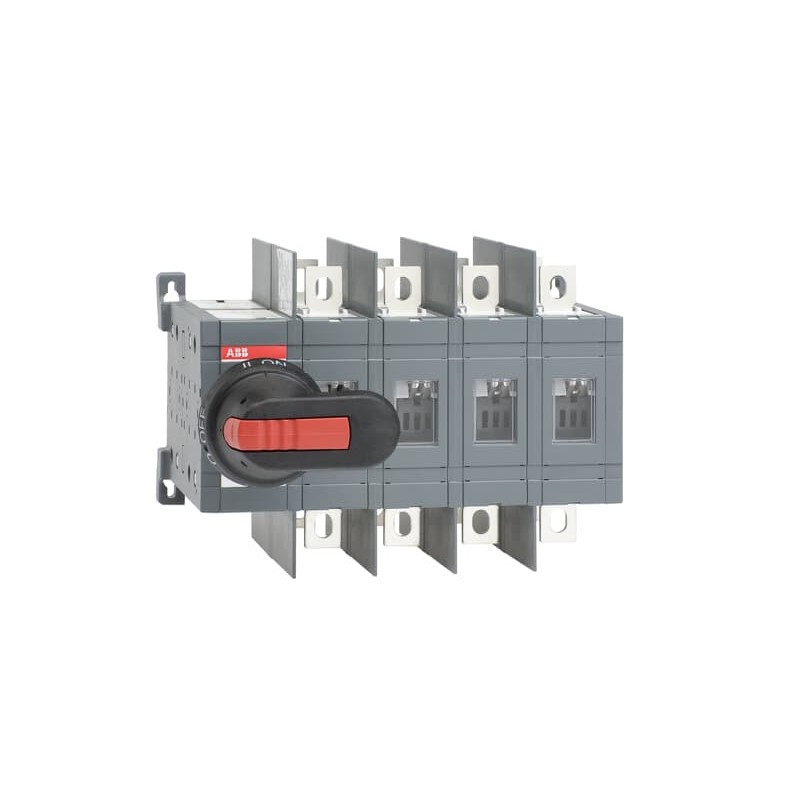

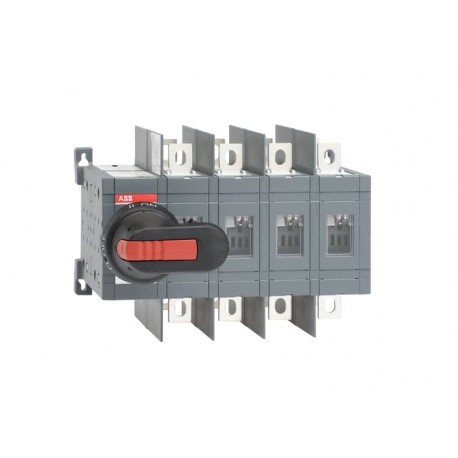

1SCA022771R6210 ABB OT200U04CP switch switch
1SCA022771R6210
ABB
OT200U04CP switch switch
OT200U04CP CHANGE-OVER SWITCH
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- OT200U04CP
- Product ID:
- 1SCA022771R6210
- EAN:
- 6417019251806
- Catalog Description:
- OT200U04CP CHANGE-OVER SWITCH
- Long Description:
- The change-over switches include a black handle IP65
see the table below, Nema type 1, 3R, 12, a shaft and a bolt set for the cable connection and a set of phase separators.
Circular Value
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108467A5658
- Environmental Information:
- 1SCC303050D0201
- REACH Declaration:
- 1SCC011021D0201
- RoHS Information:
- 1SCC011020D0201
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
- Country of Origin:
- Finland (FI)
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC301020C0201
- Instructions and Manuals:
- No Instructions and Manuals needed
Dimensions
- Product Net Width:
- 237mm
- Product Net Height:
- 150mm
- Product Net Depth / Length:
- 160mm
- Product Net Weight:
- 4.18kg
9.22 lb
Technical
- Rated Operational Current AC-21A (Ie):
- (380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
- Rated Operational Current AC-22A (Ie):
- (380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
- Rated Operational Current AC-23A (Ie):
- (380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
- Rated Operational Current AC-31B (Ie):
- (380 ... 415 V) 250 A
- Rated Operational Current AC-33B (Ie):
- (380 ... 415 V) 250 A
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 250 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- 1000 V
- Rated Short-time Withstand Current Low Voltage (Icw):
- for 1 s 8 kiloampere rms
- Pollution Degree:
- 3
- Handle Color:
- Black
- Handle Type:
- Handle and shaft included
- Fourth Pole Position:
- Right Side
- Fourth Pole Type:
- Switched - Simultaneous Function
- Switches Operating Mechanism:
- Mechanism at the End of the Switch
04 (Left Side)
- Distance Between Phases:
- Standard
- Position of Line Terminals:
- Top In - Bottom Out, Bottom In - Top Out
- Operating Mode:
- Front operated
- Standards:
- UL 98 / IEC60947-3
- Mounting Type:
- Base mounting
- Number of Poles:
- 4
- Degree of Protection:
- Front IP20
- Mechanical Durability:
- 8000 cycle
- Transition Type:
- Open
Technical UL/CSA
- Ampere Rating:
- 200 A
- Horsepower Rating UL/CSA:
- (acc. to UL 240 V) 75 Hp
(acc. to UL 480 V) 150 Hp
(acc. to UL 600 V) 200 Hp
Environmental
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Environmental Information:
- 1SCC303050D0201
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SCC303006D0202
- Environmental Information:
- 1SCC303050D0201
- Instructions and Manuals:
- No Instructions and Manuals needed
- REACH Declaration:
- 1SCC011021D0201
- RoHS Information:
- 1SCC011020D0201
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 186 mm
7.32 in
- Package Level 1 Depth / Length:
- 300 mm
11.81 in
- Package Level 1 Height:
- 185 mm
7.28 in
- Package Level 1 Gross Weight:
- 4.45 kg
9.81 lb
- Package Level 1 EAN:
- 6417019251806
Classifications
- Object Classification Code:
- Q
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
- ETIM 7:
- EC000216 - Switch disconnector
- ETIM 8:
- EC000216 - Switch disconnector
- UNSPSC:
- 39122233
- eClass:
- V11.1 : 27371403
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 200 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 200 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Other |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
