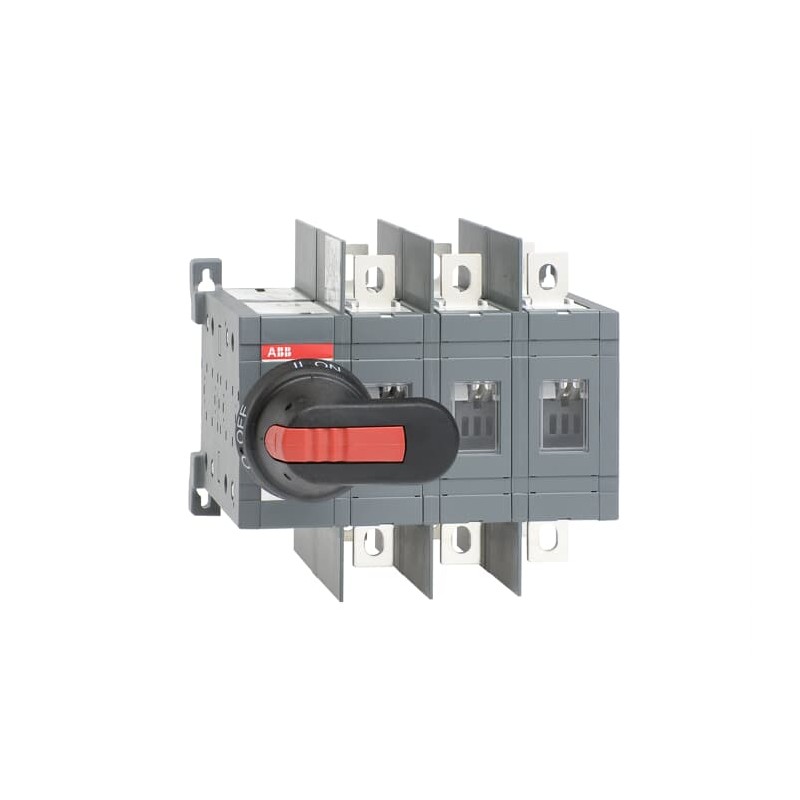

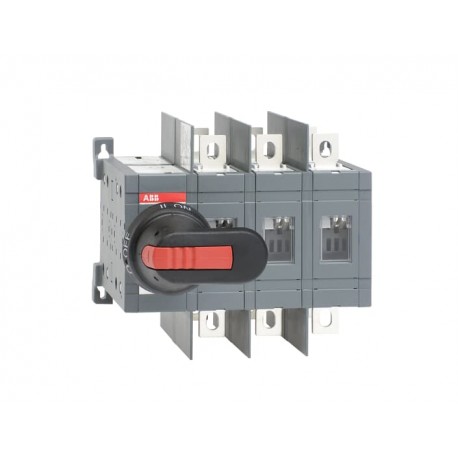

1SCA022771R5910 ABB Disconnector switch OT200U03CP
1SCA022771R5910
ABB
Disconnector switch OT200U03CP
OT200U03CP CHANGE-OVER SWITCH
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303050M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d7d08b2e-196e-4a48-a5fe-589f2726e1c0 Finland |
| Simplified SCIP | cb58f1d7-1344-4948-9869-71a9b85ab3a2 Germany |
| a14a0b8e-d2fa-4ed0-873b-b8c08fe5c2a0 Spain | |
| 51f59be5-c060-4d28-af07-27ea485ba036 Netherlands | |
| af6ee29a-5846-45e7-a095-f34ce7e651ce Estonia | |
| c9743e3a-ac17-4c16-98ec-0bd8d45cbd3a Hungary | |
| 009cf714-1503-4e55-8fa8-1b30fe50dfe6 France | |
| c9023803-6d7c-449c-802f-4924889da437 Poland | |
| d9cabbf2-99fa-473c-8b0e-ae1c394a3f66 Poland | |
| 14ec72cd-2128-4f73-ad93-84dcbff862a5 Sweden | |
| 0266809e-3278-488e-b424-4eae8cb5c3cd Portugal | |
| b7cf036e-ef1c-422b-af34-8cae4548169d Bulgaria | |
| 8794478d-160c-4b06-a8ee-aa7f93d5c831 Czech Republic | |
| b18b0d93-d991-43b2-b6dd-173a2ea3a138 Croatia | |
| 46eeae79-92a9-42b8-9109-c86081848d26 Germany | |
| 4934d5ed-a288-4ad0-aa38-7583e264a362 Denmark | |
| b9682cd3-1feb-41d8-87fc-64f3f98ea3b1 Germany | |
| c854b53c-755a-4c0a-b64f-50ca6438395d Italy | |
| b26841a7-62fe-434b-93ae-d778f75fc00d Belgium | |
| cef27fed-6435-44c9-a15e-b3a843ae360e Germany | |
| cadd0ea9-df0c-4150-975c-130c46b0e603 Sweden | |
| 52f4fb22-780e-464d-ace4-d2c57e3e29ef France | |
| 3e19d7b7-7b79-43c7-9ec4-33c346d0f65a Germany | |
| 99face1a-b186-4b90-91f5-81b695d1d6d3 Hungary | |
| 773127c8-def7-458e-9aa5-e0eaa0457bc2 Greece | |
| e6dbe489-51ca-48b6-8c4d-556fd205b36a Poland | |
| d9bc31d8-23ce-4439-9b8a-e5e89b59c3e7 Norway | |
| f685c5d9-5d7e-41e1-9e23-df3fa7a620d1 Belgium | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 194 mm |
| 7.64 in | |
| Product Net Height | 150 mm |
| 5.91 in | |
| Product Net Depth / Length | 160 mm |
| 6.3 in | |
| Product Net Weight | 2.9 kg |
| 6.39 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 183 mm |
| 7.2 in | |
| Package Level 1 Depth / Length | 260 mm |
| 10.24 in | |
| Package Level 1 Height | 185 mm |
| 7.28 in | |
| Package Level 1 Gross Weight | 3.5 kg |
| 7.72 lb | |
| Package Level 1 EAN | 6417019251783 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 8000 cycle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | UL 98 / IEC60947-6-1 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Terminal Type | Screw Terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 75 Hp |
| (acc. to UL 480 V) 150 Hp | |
| (acc. to UL 600 V) 200 Hp | |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303001D2704 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 200 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 200 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Other |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
