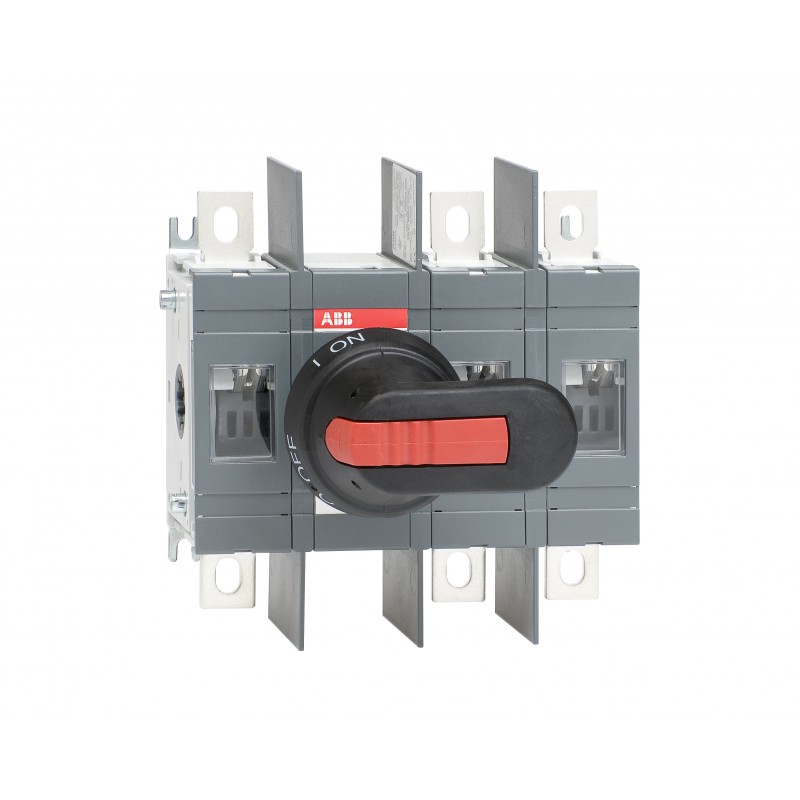

1SCA022752R2010 ABB Disconnector switch OT200U12P
1SCA022752R2010
ABB
Disconnector switch OT200U12P
OT200U12P SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a8b8e640-06a9-4f00-8dcf-1401e66b0599 Finland |
| Simplified SCIP | 58843525-8e46-4986-97c8-a6c427cccd51 Germany |
| 1ad5bf58-0c9c-4fc7-b496-5d0eb9009ab1 Netherlands | |
| faac3558-5eb5-4c4c-b218-cdd9f4f24705 Belgium | |
| 8edbdd6d-ccb9-4fb1-907b-76a5179b0d36 Germany | |
| a71560c2-2ae9-4cd6-8a77-127465b560b4 Estonia | |
| cc905ed4-291f-4270-92a0-2e7c51e0aadb Portugal | |
| 7b368679-a3ea-41be-a894-062ffaa91247 Greece | |
| 52ecf241-417d-4f41-8064-5f50cb814342 Norway | |
| 83672e87-5a82-4022-b91d-b9e94fbf0297 Belgium | |
| 70172030-dfa4-43f7-af68-23f0fd2e0899 Italy | |
| 34c187cd-0891-4f35-ad80-74e841ad82b0 Poland | |
| b1497bda-778d-46d2-b3d8-f59034efc7ca Poland | |
| 617189b5-d261-4428-b2e5-ccd53da9765e Sweden | |
| f4e0b3a9-b636-4517-bf87-e8fa3f3fc5d9 Poland | |
| e6ee4131-58b7-4238-a8f6-2864ee4c6e20 Germany | |
| 001b4f6b-ca2e-4b29-b2e2-78dec4ba0a8d Sweden | |
| 00c8cd12-a2d0-4a5e-b5b1-147126bd4810 France | |
| 12281cb3-5aaa-44c0-9f96-853cf23d3bfc Bulgaria | |
| a524b84a-ec06-4b82-bd4f-3e709b6c94e3 Hungary | |
| 7374e5db-8425-440c-88dd-f17dd1a0a033 Spain | |
| 8a941017-2110-424a-bae4-f70aff01b1c4 Czech Republic | |
| 07fb0eaa-af51-4dc7-9be1-60548be186ec Croatia | |
| ac59510b-e455-42d2-9f4a-fa7a9185efcb Denmark | |
| a21038f0-f8d7-44cd-9494-898a7cc0b175 Germany | |
| d6ad6b24-c23d-43e1-98a1-f2661c3e8997 France | |
| 9758b6e6-b7a4-4697-8c41-b691ee833d1d Germany | |
| be676752-da84-4e62-9c68-7860480cce3f Hungary | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301031M0220 |
| Mechanical Drawings | 1SCC301244F0001 |
| 1SCC301243F0001 | |
| OT200-250U12-121.stp | |
| OT200U12.igs | |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 174.5 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 190 mm |
| 7.5 in | |
| Package Level 1 Depth / Length | 290 mm |
| 11.4 in | |
| Package Level 1 Height | 110 mm |
| 4.3 in | |
| Package Level 1 Gross Weight | 1.6 kg |
| 3.5 lb | |
| Package Level 1 EAN | 6417019244419 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 12 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 22.6 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 60 Hp |
| (acc. to UL 208 V) 60 Hp | |
| (acc. to UL 240 V) 75 Hp | |
| (acc. to UL 480 V) 150 Hp | |
| (acc. to UL 600 V) 200 Hp | |
| Tightening Torque | acc. IEC 60947-1 22.6 N·m |
| Certificates and Declarations | |
| BV Certificate | 1SCC301103D0201 |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| GL Certificate | 1SCC301139D0201 |
| LR Certificate | 1SCC301144D0201 |
| UL Certificate | cULus certificate OT200-400 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660852 |
