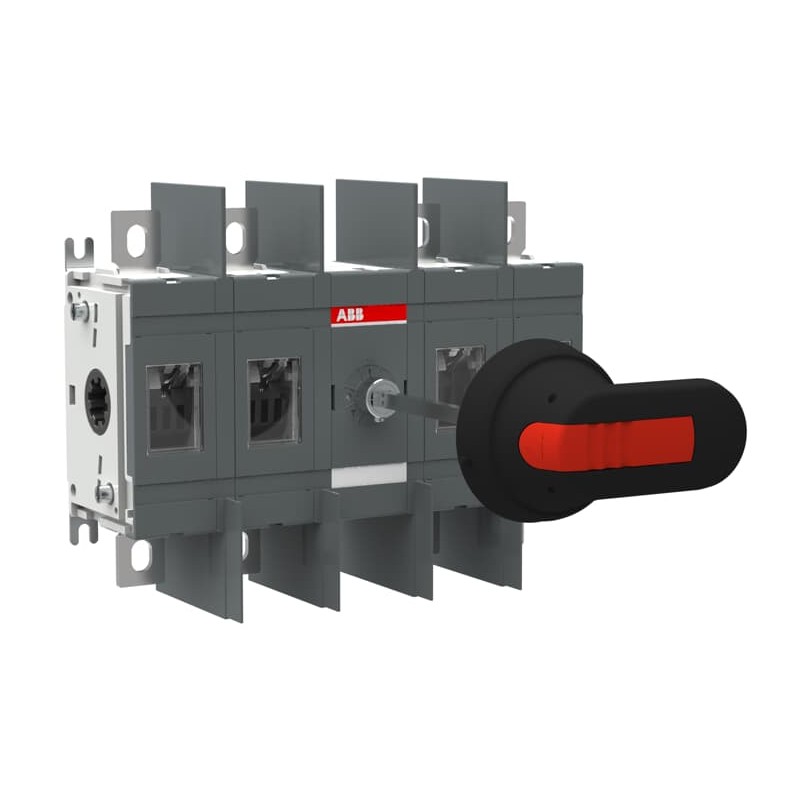

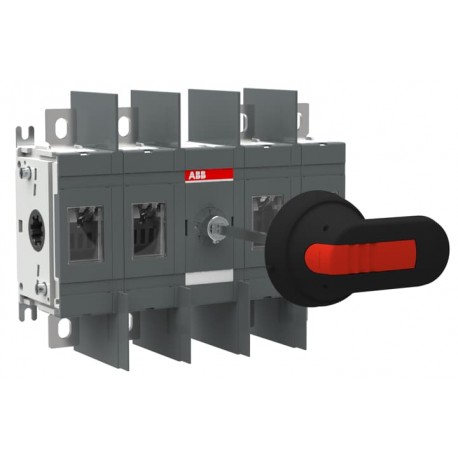

1SCA022745R0180 ABB Disconnector switch OT250E22WP
1SCA022745R0180
ABB
Disconnector switch OT250E22WP
OT250E22WP SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 24e7bcf0-e35a-4b96-b1f3-6b3b43f631cc Finland |
| Simplified SCIP | b38aacee-9d76-46ba-a7e0-c848749cc170 Germany |
| d893f64e-ef5d-4f0b-87f1-322066e38431 Belgium | |
| ebe7b07a-3028-4abc-8245-0d1337cd00ce Spain | |
| 9d3d48ea-9d41-44cf-ad6d-67fb27f989d3 Denmark | |
| 4b7c2ac4-0c74-4e30-b77d-54721a04240d Poland | |
| 931d3ee7-ee72-4607-82e9-5fd31a970132 Belgium | |
| 51e12de3-dc64-43bd-81fb-6e750f0f8512 Greece | |
| d951497f-1e8b-4aeb-be96-dbadead3904a Portugal | |
| 1615577e-3b83-4767-bf03-881be70c8293 Germany | |
| 800c49fa-9671-4324-ad1f-7a0fe381ed74 Netherlands | |
| a8785ec3-ef97-475f-84d2-2e4496de1c40 Bulgaria | |
| c7ebc7a3-bc43-4825-9228-bd88ed1b2a98 Sweden | |
| 1d2e1eb3-6fa1-482d-bc4b-02fe1c1402ce Germany | |
| e7bb434a-7130-4064-a776-9e1f4310d500 Hungary | |
| 5415d596-a1f0-4bce-bd62-06c70abd09d4 France | |
| d7d5c644-ab0f-4347-8c1c-67c55ef0140f Germany | |
| 5ad525f9-0ff4-4eac-8415-d9ce3e637411 Italy | |
| 91f7f4af-9840-44b9-b8e5-e851be62101a Croatia | |
| ab098d88-80d4-41a3-b59f-49ea5bcc14a3 Poland | |
| 9c3f1022-42bd-465c-bb99-12a18d59fd5a Czech Republic | |
| 81fc4ef5-5e2c-4ce1-8be4-5f83a8a8f864 Hungary | |
| 7a5ae061-0585-43a6-beb6-372c1f18522b Estonia | |
| 63e0bc41-bad1-4686-8e84-e8cd1552c64b Norway | |
| 2bfab2b3-0bc2-4e84-84f6-a65bbcd23a55 Germany | |
| 1e5ec2a5-293f-46b8-93ee-4d392b82c057 Sweden | |
| 3ec8b294-0ae1-49d9-8f69-a5cb73441dfb France | |
| a4240d34-59c9-4fb1-a162-4aa853974742 Poland | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301031M0220 |
| Mechanical Drawings | 1SCC301296F0001 |
| 1SCC301295F0001 | |
| OT200-250E22W.stp | |
| OT200-250E22W.igs | |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 217.5 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 190 mm |
| 7.5 in | |
| Package Level 1 Depth / Length | 290 mm |
| 11.4 in | |
| Package Level 1 Height | 110 mm |
| 4.3 in | |
| Package Level 1 Gross Weight | 2.2 kg |
| 4.6 lb | |
| Package Level 1 EAN | 6417019241708 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Wide phase distance |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA |
| (355 A fuse, 690 V) 80 kA | |
| (250 A fuse, 690 V) 100 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| (400 ... 415 V) 145 kW | |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | Wide phase distance |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301337D0201 |
| ATEX Certificate | No certification needed |
| BV Certificate | 1SCC301103D0201 |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| DNV GL Certificate | 1SCC301174D0204 |
| GL Certificate | 1SCC301139D0201 |
| LR Certificate | 1SCC301144D0201 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661334 |
| E-Number (Norway) | 4337887 |
| E-Number (Sweden) | 3171193 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 250 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 145 kW |
| Switching power at 400 V (EF009166) | 145 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 100 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Degree of protection (NEMA) (EF011959) | Other |
