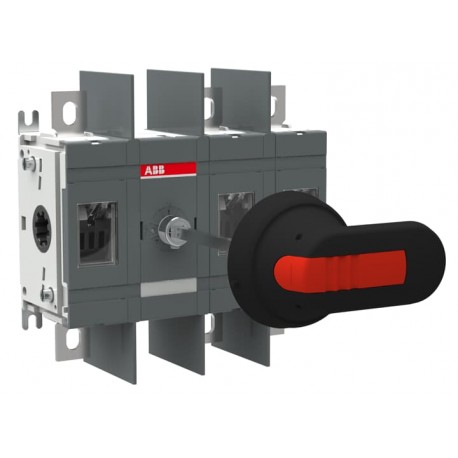

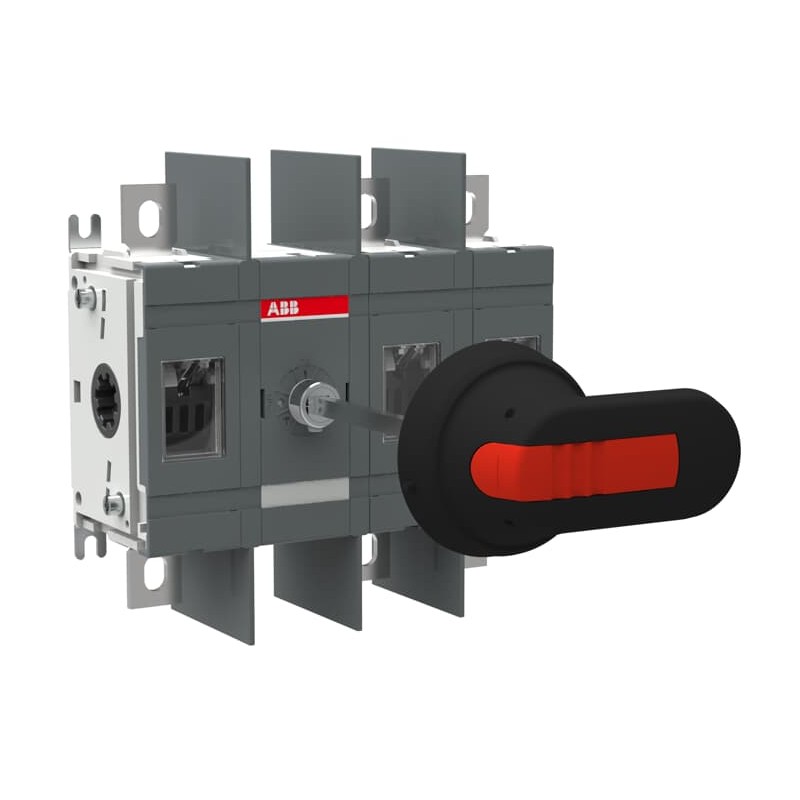

1SCA022745R0000 ABB Disconnector switch OT250E12WP

Reference: 1SCA022745R0000

Manufacturer: ABB

Description:

Disconnector switch OT250E12WP

OT250E12WP SWITCH-DISCONNECTOR

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 213,14 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions	1SCC301117M0201
Environmental Information	1SCC301265D0201
Environmental Product Declaration - EPD	1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	abf2ff94-3064-4e3e-bb29-dbff40b347d6 Finland
Simplified SCIP	1c93b357-5438-4177-b4e3-17e634c2e522 Germany
	9143f3a2-1531-4d7f-a5fb-f85e6875a7d9 Sweden
	dc7d42b0-0cc9-4c7f-97f7-013bbf42dda4 Poland
	79382cdf-f04d-4e8e-b6d5-05ccbd6ae995 Germany
	a4e99a20-a91d-465f-981f-0e3eb4329f1c Poland
	9109410c-4031-49d2-a49d-c5b386738507 Spain
	cc8b3a0c-a305-42df-add8-66998244fd16 Denmark
	9fd94788-3bcf-40ae-9ccb-e9064d892cd9 Belgium
	09efe703-2023-404c-bc32-a58eac735586 Belgium
	e5a2db91-f5fc-46af-a346-b291386db86f Greece
	2ae5992d-591d-430f-954a-e7c34074494d Portugal
	f881e589-1599-41c2-9ac3-fae3c5b5ff80 Netherlands
	8f63c77a-35c4-4ffb-8744-5af8fb33a0fb Germany
	e15f2f56-9d79-4e01-8b9c-735d11b43dec Sweden
	f4b7ce54-223c-429a-b300-e5a03f91f479 Germany
	dd82f87a-f81a-42cd-bd4e-2ab23130f1a5 France
	9fee1051-9dda-4aa3-9e9d-36a4a7aba434 Hungary
	b16f84b8-6379-4542-b738-5e5ff3b97940 Italy
	9c00bda7-23e5-499d-a9b5-0d464dc8ad71 Germany
	549cebe2-55ad-4899-b18d-8f865ce228b6 Czech Republic
	0a9e895b-09a6-4e04-a3dd-16bd511dd721 Poland
	57179fdc-50b9-4f56-aa46-2802a773c7f1 Estonia
	26a2aabe-f2e3-4192-9a97-59d5c4fb8641 Hungary
	5d7e6a19-5059-4799-abc5-53fec007aa65 Croatia
	72d14a51-d64b-45ac-826a-d55e6276b9ca Norway
	2e437ca1-cc6d-47b6-9c98-afbe1de05702 France
	c22b521e-9ecf-485f-b17b-3a7b62cec57b Bulgaria
Toxic Substances Control Act - TSCA	1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information	1SCC301020C0201
Instructions and Manuals	1SCC301031M0220
Mechanical Drawings	1SCC301294F0001
	1SCC301293F0001
Environmental Product Declaration - EPD	1SCC301282D0201
Environmental
Degree of Protection	Front IP00
Environmental Information	1SCC301265D0201
Pollution Degree	3
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country or Territory of Origin	Finland
Dimensions
Product Net Width	174.5 mm
Product Net Height	170 mm
Product Net Depth / Length	82.5 mm
Product Net Weight	1.5 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	190 mm
	7.5 in
Package Level 1 Depth / Length	290 mm
	11.4 in
Package Level 1 Height	110 mm
	4.3 in
Package Level 1 Gross Weight	1.7 kg
	3.7 lb
Package Level 1 EAN	6417019241692
Technical
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 250 A
Conventional Thermal Current (I_the)	Fully Enclosed 250 A
Degree of Protection	Front IP00
Distance Between Phases	Wide phase distance
Handle Color	Black
Handle Type	Handle and shaft included
Mechanical Durability	20000
Mounting Type	Base mounting
Number of Poles	3P
Operating Mode	Front
Pollution Degree	3
Position of Line Terminals	Top In - Bottom Out
	Bottom In - Top Out
Power Loss	at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (I_nc)	(315 A fuse, 500 V) 100 kA
	(355 A fuse, 690 V) 80 kA
	(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (U_imp)	12 kV
Rated Insulation Voltage (U_i)	acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (I_e)	(380 ... 415 V) 250 A
	(500 V) 250 A
	(690 V) 250 A
Rated Operational Current AC-22A (I_e)	(380 ... 415 V) 250 A
	(500 V) 250 A
	(690 V) 250 A
Rated Operational Current AC-23A (I_e)	(380 ... 415 V) 250 A
	(500 V) 250 A
	(690 V) 250 A
Rated Operational Power AC-23A (P_e)	(220 ... 240 V) 75 kW
	(400 ... 415 V) 145 kW
	(500 V) 170 kW
	(690 V) 250 kW
Rated Operational Voltage	Main Circuit 1000 V
Rated Short-Circuit Making Capacity (I_cm)	(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	for 1 s 8 kA
Special Functions	Wide phase distance
Standards	IEC 60947-3
Switches Operating Mechanism	Mechanism Between the Poles
	12 (Between the Poles)
Terminal Type	Lug terminals
Terminal Width	20 mm
Tightening Torque	acc. IEC 60947-1 15 … 22 N·m
Technical UL/CSA
Tightening Torque	acc. IEC 60947-1 15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC	1SCC301337D0201
ATEX Certificate	No certification needed
BV Certificate	1SCC301103D0201
Declaration of Conformity - CE	1SCC301131D2705
DNV GL Certificate	1SCC301174D0204
GL Certificate	1SCC301139D0201
LR Certificate	1SCC301144D0201
UL Certificate	No certification needed
VDE Certificate	No certification needed
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122221
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	3661332
E-Number (Norway)	4337886
E-Number (Sweden)	3171192

ETIM for 1SCA022745R0000 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)

Feature valueYes

Feature nameVersion as maintenance-/service switch (EF006986)

Feature valueYes

Feature nameVersion as safety switch (EF006985)

Feature valueNo

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo

Feature nameVersion as reversing switch (EF009408)

Feature valueNo

Feature nameNumber of switches (EF005586)

Feature value1

Feature nameMax. rated operation voltage Ue AC (EF007355)

Feature value1000 V

Feature nameRated operating voltage (EF001435)

Feature value1000 V

Feature nameRated permanent current Iu (EF001389)

Feature value250 A

Feature nameRated permanent current at AC-23, 400 V (EF011777)

Feature value250 A

Feature nameRated permanent current at AC-21, 400 V (EF009165)

Feature value250 A

Feature nameRated short-time withstand current lcw (EF007050)

Feature value8 kA

Feature nameRated operation power at AC-23, 400 V (EF007027)

Feature value145 kW

Feature nameSwitching power at 400 V (EF009166)

Feature value145 kW

Feature nameConditioned rated short-circuit current Iq (EF001444)

Feature value100 kA

Feature nameNumber of poles (EF001391)

Feature value3

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameMotor drive optional (EF007386)

Feature valueNo

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameVoltage release optional (EF007491)

Feature valueNo

Feature nameDevice construction (EF008240)

Feature valueComplete device in housing

Feature nameSuitable for front mounting 4-hole (EF007247)

Feature valueNo

Feature nameSuitable for front mounting centre (EF007248)

Feature valueNo

Feature nameSuitable for distribution board installation (EF007262)

Feature valueYes

Feature nameColour control element (EF007167)

Feature valueBlack

Feature nameType of control element (EF006976)

Feature valueLong turning handle

Feature nameInterlockable (EF006281)

Feature valueNo

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameDegree of protection (IP), front side (EF003118)

Feature valueIP00

Feature nameDegree of protection (NEMA) (EF011959)

Feature valueOther
