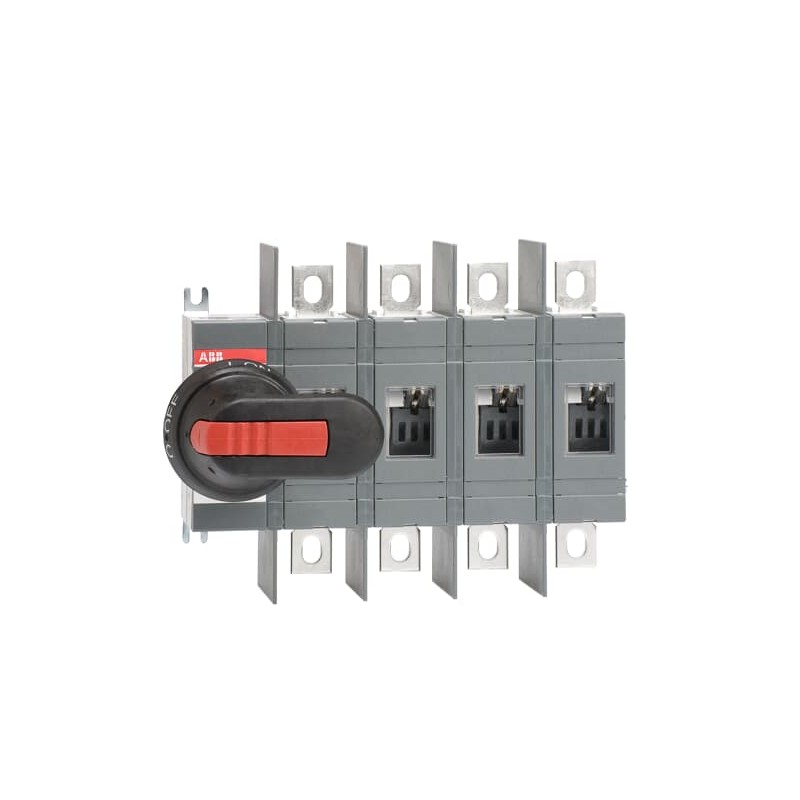

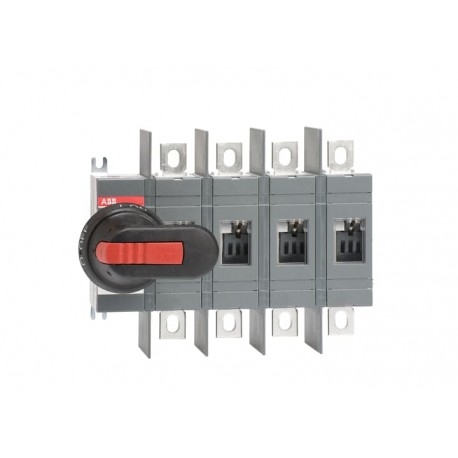

1SCA022744R3810 ABB Disconnector switch OT250E04WP

Reference: 1SCA022744R3810

Manufacturer: ABB

Description:

Disconnector switch OT250E04WP

OT250E04WP SWITCH-DISCONNECTOR

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 246,49 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions	1SCC301117M0201
Environmental Information	1SCC301265D0201
Environmental Product Declaration - EPD	1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	5b97369b-b1f4-424c-a7bf-8d439c90eab3 Finland
Simplified SCIP	56d52026-ac15-4d87-8c1c-1c24b2249265 Germany
	7a8caffa-0679-4b9d-a22b-2b4f6d825589 Poland
	bbe9acc6-4116-4782-8a62-8feef14939f1 Portugal
	501a2fdd-dcf0-4192-8f0d-a1b0e2839b29 Estonia
	9c4fd489-a0f8-48bd-934a-d837f0ef5640 Germany
	4b4bb0f8-a938-43b6-953f-c65fc785efa7 Greece
	93a6f6b7-037b-40f2-807e-3011f6949521 Bulgaria
	751d6895-dd14-4108-835e-912254541152 Belgium
	705ccc3e-3852-487a-8726-4ec1e60cca46 Norway
	108ab57f-197c-446e-8023-076375ffd7af Poland
	86463a29-8c0b-4b60-b27a-7934843e6fbd Belgium
	3c6c3506-a4a4-4fda-a15d-b71fcf8d6400 Spain
	d54f75b9-0874-4558-a4f0-796cac3c1a44 Sweden
	17db4e05-ea6a-4f9b-9939-55fb5ed92601 Hungary
	842946c3-4998-472e-bcf7-36ef106212b8 Czech Republic
	c127f881-3104-4b79-bef9-ce9dc959aee9 Croatia
	905be291-ff9d-44e8-8f42-26bf08e0bb1b Denmark
	9b539209-62e8-4aad-9be0-442ea5f5f4c8 Poland
	8aa2f3aa-3365-4d4b-b743-e34569d77c8b Germany
	2c6761d8-e7c8-4216-95eb-2274cd83f9d8 Italy
	96c0fb5c-2b8f-4ba9-866c-28f73bc8b2f0 Germany
	5e9c7c2e-b989-4e06-aeb2-5efa58968347 Hungary
	7a9cd371-1326-405a-81ff-c9460dce0cc8 Netherlands
	3755dd94-95fc-49f6-a74c-861ad90898ad France
	8dfc2321-2ac8-4bee-a908-141642f5f6e7 Germany
	6e7feab9-7fc8-4341-855d-3a84e92602aa Sweden
	23d2b547-4913-4f68-b007-97e2e1aab15c France
Toxic Substances Control Act - TSCA	1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information	1SCC301020C0201
Instructions and Manuals	1SCC301031M0220
Mechanical Drawings	1SCC301292F0001
	1SCC301291F0001
	OT200-250E04W.stp
	OT200-250E04W.igs
Environmental Product Declaration - EPD	1SCC301282D0201
Environmental
Degree of Protection	Front IP00
Environmental Information	1SCC301265D0201
Pollution Degree	3
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country or Territory of Origin	Finland
Dimensions
Product Net Width	212.5 mm
Product Net Height	170 mm
Product Net Depth / Length	82.5 mm
Product Net Weight	2.1 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	190 mm
	7.5 in
Package Level 1 Depth / Length	290 mm
	11.4 in
Package Level 1 Height	110 mm
	4.3 in
Package Level 1 Gross Weight	2.2 kg
	4.6 lb
Package Level 1 EAN	6417019241449
Technical
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 250 A
Conventional Thermal Current (I_the)	Fully Enclosed 250 A
Degree of Protection	Front IP00
Distance Between Phases	Wide phase distance
Fourth Pole Position	Right Side
Fourth Pole Type	Switched - Simultaneous Function
Handle Color	Black
Handle Type	Handle and shaft included
Mechanical Durability	20000
Mounting Type	Base mounting
Number of Poles	4P
Operating Mode	Front
Pollution Degree	3
Position of Line Terminals	Top In - Bottom Out
	Bottom In - Top Out
Power Loss	at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (I_nc)	(315 A fuse, 500 V) 100 kA
	(355 A fuse, 690 V) 80 kA
	(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (U_imp)	12 kV
Rated Insulation Voltage (U_i)	acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (I_e)	(380 ... 415 V) 250 A
	(500 V) 250 A
	(690 V) 250 A
Rated Operational Current AC-22A (I_e)	(380 ... 415 V) 250 A
	(500 V) 250 A
	(690 V) 250 A
Rated Operational Current AC-23A (I_e)	(380 ... 415 V) 250 A
	(500 V) 250 A
	(690 V) 250 A
Rated Operational Power AC-23A (P_e)	(220 ... 240 V) 75 kW
	(400 ... 415 V) 145 kW
	(500 V) 170 kW
	(690 V) 250 kW
Rated Operational Voltage	Main Circuit 1000 V
Rated Short-Circuit Making Capacity (I_cm)	(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	for 1 s 8 kA
Special Functions	Wide phase distance
Standards	IEC 60947-3
Switches Operating Mechanism	Mechanism at the End of the Switch
	04 (Left Side)
Terminal Type	Lug terminals
Terminal Width	20 mm
Tightening Torque	acc. IEC 60947-1 15 … 22 N·m
Technical UL/CSA
Tightening Torque	acc. IEC 60947-1 15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC	1SCC301337D0201
ATEX Certificate	No certification needed
BV Certificate	1SCC301103D0201
Declaration of Conformity - CE	1SCC301131D2705
DNV GL Certificate	1SCC301174D0204
GL Certificate	1SCC301139D0201
LR Certificate	1SCC301144D0201
UL Certificate	No certification needed
VDE Certificate	No certification needed
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122221
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	3661330
E-Number (Norway)	4337885
E-Number (Sweden)	3171191

ETIM for 1SCA022744R3810 Low-voltage industrial controls and switchgear (EC000216)
