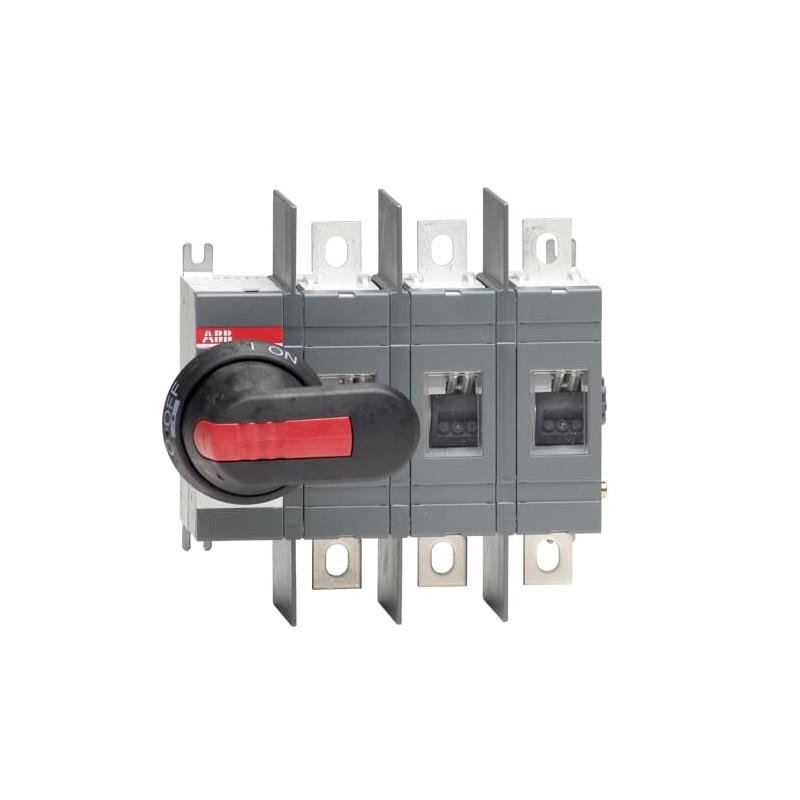

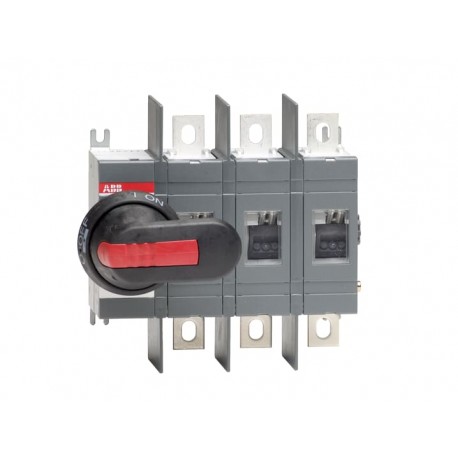

1SCA022744R3560 ABB Disconnector switch OT250E03WP

Reference: 1SCA022744R3560

Manufacturer: ABB

Description:

Disconnector switch OT250E03WP

OT250E03WP SWITCH-DISCONNECTOR

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 213,14 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions	1SCC301117M0201
Environmental Information	1SCC301265D0201
Environmental Product Declaration - EPD	1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	9d2fd67a-f690-4bf2-b98b-8d1174018ee9 Finland
Simplified SCIP	ab95594a-afae-43d6-b9d4-9693f3d1ed0b Germany
	1c66e088-2940-40c2-a266-cca7762f8ee8 Belgium
	7c377033-a217-4b8d-a9c2-75a24b0a2d8f Italy
	4b495af2-e067-4217-9dcd-107678ff1413 Germany
	ec62897e-a723-4ece-b6c5-c942e2fc6503 Hungary
	2098dd86-fae7-4fe7-a7ac-3f1e6729262a Netherlands
	f5fb0cb5-75fb-46c7-a1cb-04e6c3d7c60c Sweden
	2189db65-0c68-42fc-8491-c652ffaa92d0 Poland
	bb37739a-45e0-4765-8fd4-afdd2fe2d8a8 Sweden
	ff2cb2e1-73ad-4af3-b605-9f2112a2cfa1 Germany
	53c247a3-ea1d-4488-a91a-a46139162232 Portugal
	30aa7913-265a-43a6-8ece-75919e3615d3 Poland
	f37d1b84-ee7a-4369-a190-809344fc7ffa Estonia
	006669de-fd9a-4905-8d7f-e4fb6190d563 Greece
	6f0e0560-4060-4df5-b979-0e3c3f72c62f Bulgaria
	dec43b05-783a-4935-be7c-922b30e339bd Norway
	aa4fd932-1cf1-46c6-a478-c507aa7ef8a0 France
	16110378-d1c0-46d1-9c84-d9a3faee245e Poland
	9c5e5a1f-057a-439a-a5d8-61cdd0852be8 Spain
	74e6ea84-c8bc-4cd1-8b26-6bfcd6de58c3 Belgium
	8a2b0926-999b-44a0-af9f-57eb00240450 Hungary
	910c4e23-6a9f-485e-93ef-bed8730c69df Czech Republic
	fda1dead-6015-42eb-90d1-c3636681e9a6 Germany
	b44f5f6f-711a-4466-8655-fe9a1f84d190 Denmark
	1b8e8ad8-8fd0-420c-b99e-cc9f50d0eea5 Croatia
	1f63380c-2bf4-4f3b-98b8-711074efc6d7 France
	ea8683a2-cc66-424b-8750-26456e08e6b8 Germany
Toxic Substances Control Act - TSCA	1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information	1SCC301020C0201
Instructions and Manuals	1SCC301031M0220
Mechanical Drawings	1SCC301290F0001
	1SCC301289F0001
	OT200-250E03W.stp
	OT200-250E03W.igs
Environmental Product Declaration - EPD	1SCC301282D0201
Environmental
Degree of Protection	Front IP00
Environmental Information	1SCC301265D0201
Pollution Degree	3
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country or Territory of Origin	Finland
Dimensions
Product Net Width	169.5 mm
Product Net Height	170 mm
Product Net Depth / Length	82.5 mm
Product Net Weight	1.5 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	190 mm
	7.5 in
Package Level 1 Depth / Length	290 mm
	11.4 in
Package Level 1 Height	110 mm
	4.3 in
Package Level 1 Gross Weight	1.7 kg
	3.7 lb
Package Level 1 EAN	6417019241418
Technical
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 250 A
Conventional Thermal Current (I_the)	Fully Enclosed 250 A
Degree of Protection	Front IP00
Distance Between Phases	Wide phase distance
Handle Color	Black
Handle Type	Handle and shaft included
Mechanical Durability	20000
Mounting Type	Base mounting
Number of Poles	3P
Operating Mode	Front
Pollution Degree	3
Position of Line Terminals	Top In - Bottom Out
	Bottom In - Top Out
Power Loss	at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (I_nc)	(315 A fuse, 500 V) 100 kA
	(355 A fuse, 690 V) 80 kA
	(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (U_imp)	12 kV
Rated Insulation Voltage (U_i)	acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (I_e)	(380 ... 415 V) 250 A
	(500 V) 250 A
	(690 V) 250 A
Rated Operational Current AC-22A (I_e)	(380 ... 415 V) 250 A
	(500 V) 250 A
	(690 V) 250 A
Rated Operational Current AC-23A (I_e)	(380 ... 415 V) 250 A
	(500 V) 250 A
	(690 V) 250 A
Rated Operational Power AC-23A (P_e)	(220 ... 240 V) 75 kW
	(400 ... 415 V) 145 kW
	(500 V) 170 kW
	(690 V) 250 kW
Rated Operational Voltage	Main Circuit 1000 V
Rated Short-Circuit Making Capacity (I_cm)	(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	for 1 s 8 kA
Special Functions	Wide phase distance
Standards	IEC 60947-3
Switches Operating Mechanism	Mechanism at the End of the Switch
	03 (Left Side)
Terminal Type	Lug terminals
Terminal Width	20 mm
Tightening Torque	acc. IEC 60947-1 15 … 22 N·m
Technical UL/CSA
Tightening Torque	acc. IEC 60947-1 15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC	1SCC301337D0201
ATEX Certificate	No certification needed
BV Certificate	1SCC301103D0201
Declaration of Conformity - CE	1SCC301131D2705
DNV GL Certificate	1SCC301174D0204
GL Certificate	1SCC301139D0201
LR Certificate	1SCC301144D0201
UL Certificate	No certification needed
VDE Certificate	No certification needed
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122221
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	3661328
E-Number (Norway)	4337884
E-Number (Sweden)	3171190

ETIM for 1SCA022744R3560 Low-voltage industrial controls and switchgear (EC000216)
