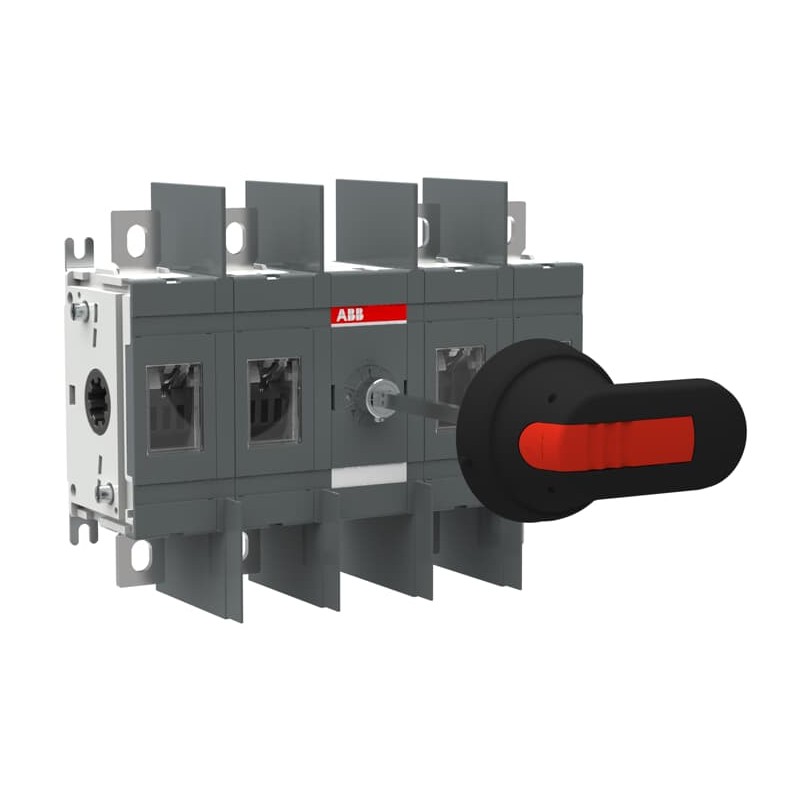

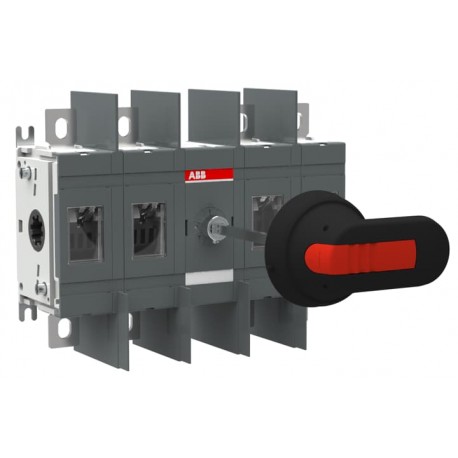

1SCA022744R3300 ABB Disconnector switch OT200E22WP
1SCA022744R3300
ABB
Disconnector switch OT200E22WP
OT200E22WP SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 3730119c-4d9b-4114-a6ed-d984e2a688c3 Finland |
| Simplified SCIP | 8898763a-ee0c-440c-b871-efb3b0a1e2d0 Germany |
| d58b0a5e-1c81-4e45-aa27-06306b87b64e Portugal | |
| 8a4949f1-f170-4966-9494-9f44ebd87513 Poland | |
| 0e79b20b-4d3f-4c68-a267-5408a0a7b4aa Croatia | |
| 933a9138-025a-4a86-a1ef-34d698e19333 Germany | |
| 7be3265b-fe00-487c-9453-5960b7c079b8 Belgium | |
| c5fdaef4-b50d-4388-9628-9c907e1ef65f Denmark | |
| 5ed668b7-9a61-43f3-8cf8-6faa40939e25 Germany | |
| 19f0a1e4-54c0-449a-876d-19f80b9ac85a Sweden | |
| fae1f70c-ce09-4f3b-83be-065db6269153 Bulgaria | |
| 2f289856-daa5-4187-9f5c-6773bd6c068f Hungary | |
| d21e0cb5-040a-4f9d-9183-fcf7a2245c87 Germany | |
| 23c201d8-e73f-4e9a-b7bd-bd25054ccb4a France | |
| 6b52e89e-1ff1-4216-8311-4910f608014f Italy | |
| 53e7b861-47e5-4f0b-ae73-8ae722668507 France | |
| 932e74b6-0fdd-4b6a-a3f4-8819f06ffd0d Hungary | |
| 2502610e-959d-475c-a8c7-57447ce2e153 Estonia | |
| bd6c7858-a381-4494-a4bd-681842feb1d3 Netherlands | |
| f0854ee9-f59f-4db7-9785-efc1e77e9e43 Sweden | |
| 024237bb-d75f-4b72-af2d-669bb146bbce Germany | |
| aa70cccb-7d66-4115-8b0d-934e7b575611 Spain | |
| 75686dac-3894-4f8d-b63b-c1dac6ad8298 Belgium | |
| 675a8151-663f-45a3-9cf8-588bbdf6d0e8 Norway | |
| 40463db5-b928-4ed3-af0b-2a78ed525e46 Poland | |
| 892d6fe7-e3df-454e-b56c-5b49ed1cb65a Greece | |
| 0b8de3d5-0b5c-457c-830d-f2852d4cb934 Czech Republic | |
| f12ac7de-bec3-4a88-ba90-7fca5b127f69 Poland | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301031M0220 |
| Mechanical Drawings | 1SCC301296F0001 |
| 1SCC301295F0001 | |
| OT200-250E22W.stp | |
| OT200-250E22W.igs | |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 217.5 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 190 mm |
| 7.5 in | |
| Package Level 1 Depth / Length | 290 mm |
| 11.4 in | |
| Package Level 1 Height | 110 mm |
| 4.3 in | |
| Package Level 1 Gross Weight | 2.4 kg |
| 5.3 lb | |
| Package Level 1 EAN | 6417019241395 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Wide phase distance |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 4.0 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA |
| (355 A fuse, 690 V) 80 kA | |
| (250 A fuse, 690 V) 100 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 ... 415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | Wide phase distance |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301337D0201 |
| ATEX Certificate | No certification needed |
| BV Certificate | 1SCC301103D0201 |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| DNV GL Certificate | 1SCC301174D0204 |
| GL Certificate | 1SCC301139D0201 |
| LR Certificate | 1SCC301144D0201 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661324 |
| E-Number (Norway) | 4337883 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 200 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 200 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 200 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 110 kW |
| Switching power at 400 V (EF009166) | 110 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 100 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Degree of protection (NEMA) (EF011959) | Other |
