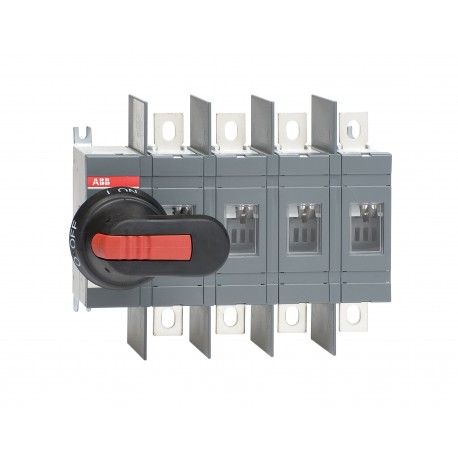

1SCA022744R3130 ABB Disconnector switch OT200E04WP
1SCA022744R3130
ABB
Disconnector switch OT200E04WP
OT200E04WP SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 38c7f0e2-afdb-437f-bade-e99da7597d4a Finland |
| Simplified SCIP | 13ef30fb-8f17-44e1-97ee-eca47022b2b0 Germany |
| b52ab488-d178-48a0-9be2-190579665b92 Bulgaria | |
| 25b682b1-f2b9-4d49-9b75-6e6c90cdb808 Sweden | |
| c7da4c6c-577c-41d8-8952-8f33230ab414 France | |
| 3d1a096f-2fac-4f4f-920a-a708015be157 Germany | |
| 4c5fa768-6999-4cd0-8664-706bdc4eb983 Belgium | |
| 7b26ef58-78dc-4b7b-809f-0ba986f1e1c6 Estonia | |
| 9e91db4e-54ab-446a-a754-52af98a3b52b Denmark | |
| dfc42749-58ad-4fa0-845a-2863c121d2b9 France | |
| 1740113b-d32b-4b3d-9bec-1f04900f6591 Poland | |
| 74b2dac4-8074-493f-9bcc-d7c2caa6a991 Hungary | |
| 079064e7-b493-49e3-bd30-58f791906f19 Italy | |
| 57074ea9-b786-416b-b988-36adcf209ed7 Germany | |
| c3888305-fb1f-4d12-94c6-d9624edded58 Netherlands | |
| 52d8fe1c-c655-49fd-9d94-2488588d16df Hungary | |
| 5ef355d7-4470-43d7-bbc4-12848042572d Norway | |
| 368714d4-fd78-4479-813c-4f235bb14f2b Sweden | |
| bbe8c4fa-dd14-4427-80d2-812bfb6d2fc8 Czech Republic | |
| 884cee89-0ee6-4d9e-a472-44ed52ef965a Poland | |
| e6d202d7-b157-4381-9dec-249db8e8c200 Germany | |
| 1bbf9cfe-9618-48d6-8492-2572f678b5c0 Croatia | |
| 1eac861d-ee08-4e06-9ca8-c9166db2e3ea Germany | |
| 1626d49b-6c31-4962-8a94-c52ea37ff8de Belgium | |
| 3d9bd5f9-d4dc-408c-9ee2-61b989554c12 Spain | |
| b28db08f-faf1-4bac-a1a0-0a249febc7b5 Poland | |
| bc5a05eb-e246-4c20-89e3-6c4ba1114022 Portugal | |
| ce18a56b-9708-4efa-9020-c768ca8cfe41 Greece | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301031M0220 |
| Mechanical Drawings | 1SCC301292F0001 |
| 1SCC301291F0001 | |
| OT200-250E04W.stp | |
| OT200-250E04W.igs | |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 212.5 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.075 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 190 mm |
| Package Level 1 Depth / Length | 110 mm |
| Package Level 1 Height | 290 mm |
| Package Level 1 Gross Weight | 2.245 kg |
| Package Level 1 EAN | 6417019241371 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Wide phase distance |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 4.0 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA |
| (355 A fuse, 690 V) 80 kA | |
| (250 A fuse, 690 V) 100 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 ... 415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | Wide phase distance |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301337D0201 |
| ATEX Certificate | No certification needed |
| BV Certificate | 1SCC301103D0201 |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| DNV GL Certificate | 1SCC301174D0204 |
| GL Certificate | 1SCC301139D0201 |
| LR Certificate | 1SCC301144D0201 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661320 |
| E-Number (Norway) | 4337881 |
| E-Number (Sweden) | 3171187 |
