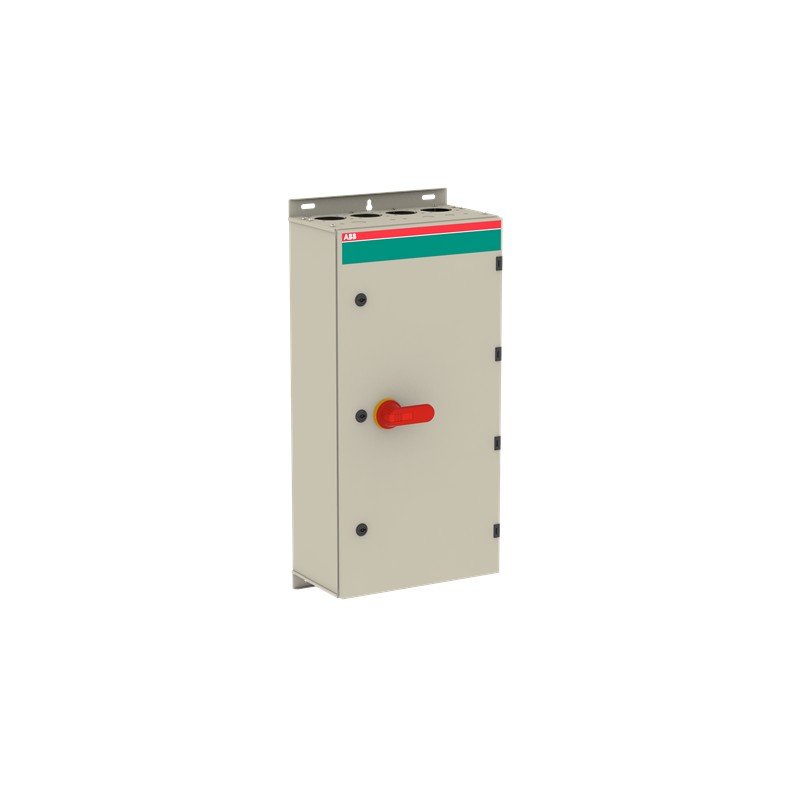

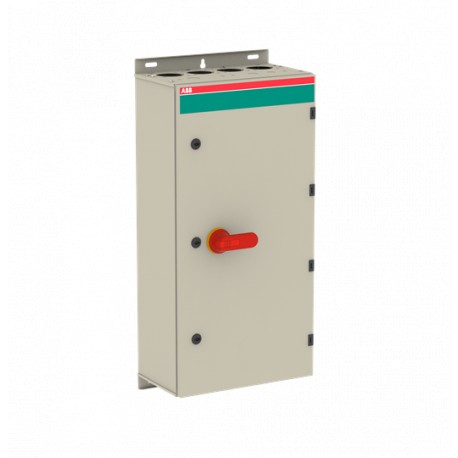

1SCA022742R3700 ABB Int. Section. boxed EMC OT400DTRR3AZ
Reference: 1SCA022742R3700
Manufacturer: ABB
Description:
Int. Section. boxed EMC OT400DTRR3AZ
OT400DTRR3AZ EMC safety switch
Categories:
- Low-voltage industrial components > Switch disconnector
- ABB > Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
- More Info
- ETIM
- Reviews
LAST VIEWED
MORE INFO
| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 659a29ba-6cb8-42dc-a155-417083529295 Finland |
| Simplified SCIP | d0bd2b64-8737-44c9-944a-e458e759f4c6 Germany |
| 996e48e0-aead-4b20-a5b3-55025024573b Poland | |
| 66823b88-99a2-46e8-b015-86aae5651be1 Germany | |
| 228b35dc-c616-4012-9572-286692787c75 Hungary | |
| e2308402-70a6-4d89-8afa-b85c7d73b647 Netherlands | |
| 1e023997-12d9-456e-86fd-57418a6ba71c Denmark | |
| 898c5b26-6da9-4f51-8b29-2c29da9932ae France | |
| ce315ee9-1571-49dd-8c0d-1c6616dc5bc0 Poland | |
| 3f8b7554-d04c-47dc-8900-5bc8b3d260e2 Belgium | |
| c4d1f723-cf31-4ee0-884d-fee7cd851224 Sweden | |
| 38cc55f1-9258-4003-91cf-c48d42700383 Croatia | |
| 298bb1e5-0daf-4d8e-9797-6965168f482c Czech Republic | |
| e2cdc82d-b70d-4180-aa55-45ad9a8b3e73 Norway | |
| ec7c8c0e-4f13-4042-bca9-9d12b510abe3 Italy | |
| 4ff50238-a5a5-4579-8358-2a31b228d983 France | |
| 23c08fb0-44b8-40cc-bfbd-fa29c9fc30d6 Greece | |
| 48ec507a-f95a-484a-a1c8-a0d35a65aebe Sweden | |
| 0114b9b2-2f5d-46c0-b6d8-942a3590c2e9 Portugal | |
| 257ad917-8e2d-4244-9525-651dd253461a Bulgaria | |
| a0e645be-5036-4ddb-b3e5-5609ab22de07 Poland | |
| 572f6b29-13b8-40fa-bccb-893e366907ee Belgium | |
| 3a4d09ef-da85-4e17-9844-f0f69ccec8b5 Spain | |
| ac1deda8-2dd1-456b-a950-fc5b71ce859d Hungary | |
| 8adab06d-0e11-400d-88b1-4d326bd61154 Germany | |
| 1eb5c46e-2851-41ac-a1e6-7a0b7e4f8c31 Germany | |
| b88b1426-7dd1-42bb-b18b-b5335d31ea53 Germany | |
| c39aa03c-2ad8-48c5-998c-4b6b852f5911 Estonia | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM804023P4R.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 800 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 24.85 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 910 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 27 kg |
| Package Level 1 EAN | 6417019240565 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW |
| (500 V) 280 kW | |
| (690 V) 355 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 44 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M10 |
| Tightening Torque | Main Circuit 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
ETIM for 1SCA022742R3700 Low-voltage industrial controls and switchgear (EC000216)
Feature name
Feature value
Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value400 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value400 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value15 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value220 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value220 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
