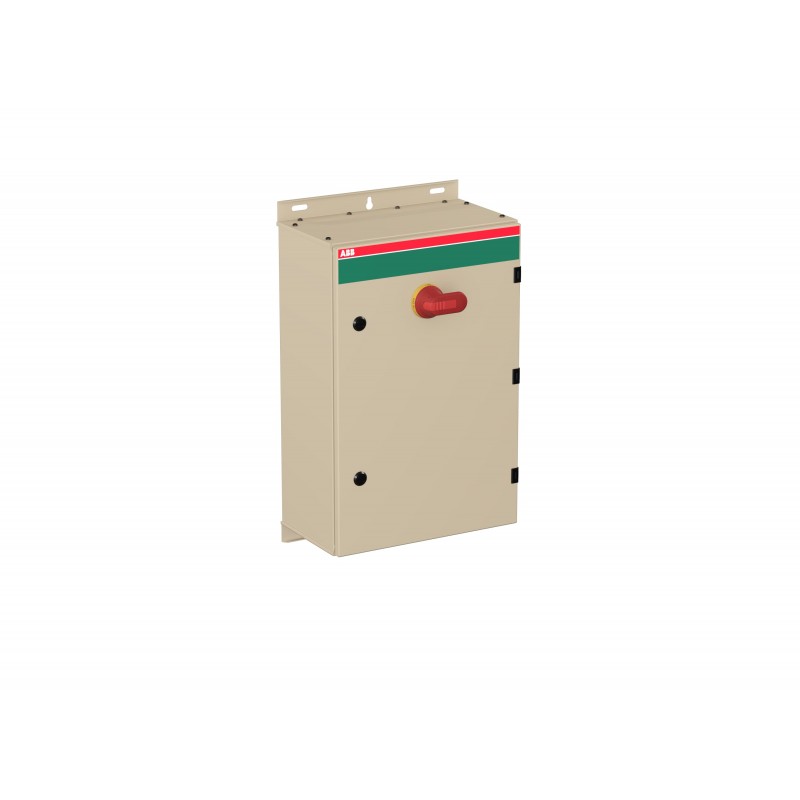

1SCA022700R6340 ABB Int. Boxed disconnector OT200KUUR3AZ

Reference: 1SCA022700R6340

Manufacturer: ABB

Description:

Int. Boxed disconnector OT200KUUR3AZ
OT200KUUR3AZ EMC safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.398,99 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Information1SCC340075D0201
Toxic Substances Control Act - TSCA1SCC340095D0201
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country of OriginFinland (FI)
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340016M0005
Mechanical DrawingsOTKM604023PBL4R.stp
Dimensions
Product Net Width400 mm
Product Net Height600 mm
Product Net Depth / Length230 mm
Product Net Weight21.91 kg
Technical
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 160 kW
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Rated Conditional Short-Circuit Current (Inc)40.5 kA
Power Lossat Rated Operating Conditions per Pole 4 W
Pollution Degree3
Handle ColorRed / Yellow
Handle TypePistol handle
StandardsIEC 60947-1, -3
Special FunctionsEMC
Number of Poles3
Neutral TypeNo neutral terminal
Connecting Capacity Main CircuitHole Diameter 8 mm
Screw Clamp / PE Terminal 2pc,10 ... 70 mm²
Recommended Screw DriverMain Circuit M8
Cable Entry PositionBottom/Bottom
Cable Outlets Per SideBlank / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm
Degree of Protectionacc. to IEC 60529 IP65
Impact Resistance RatingHousing IK09
Enclosure MaterialSteel sheet
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts2 NO, 1 NC
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO2
Tightening TorqueMain Circuit 22 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M8
Tightening TorqueMain Circuit 22 N·m
Environmental
RoHS StatusFollowing EU Directive 2011/65/EU
Toxic Substances Control Act - TSCA1SCC340095D0201
Certificates and Declarations
Declaration of Conformity - CE1SCC340025D2704
REACH Declaration1SCC340076D0201
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width415 mm
Package Level 1 Depth / Length710 mm
Package Level 1 Height325 mm
Package Level 1 Gross Weight23.6 kg
Package Level 1 EAN6417019223681
Classifications
Object Classification CodeQ
ETIM 7EC000216 - Switch disconnector
ETIM 8EC000216 - Switch disconnector
ETIM 9EC000216 - Switch disconnector (low voltage)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

ETIM for 1SCA022700R6340 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueYes
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value200 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value200 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value200 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value110 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value110 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameHousing colour (EF000136)
Feature valueOther
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameWith pre-assembled cabling (EF016444)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWidth (EF000008)
Feature value400 mm
Feature nameHeight (EF000040)
Feature value600 mm
Feature nameDepth (EF000049)
Feature value230 mm
