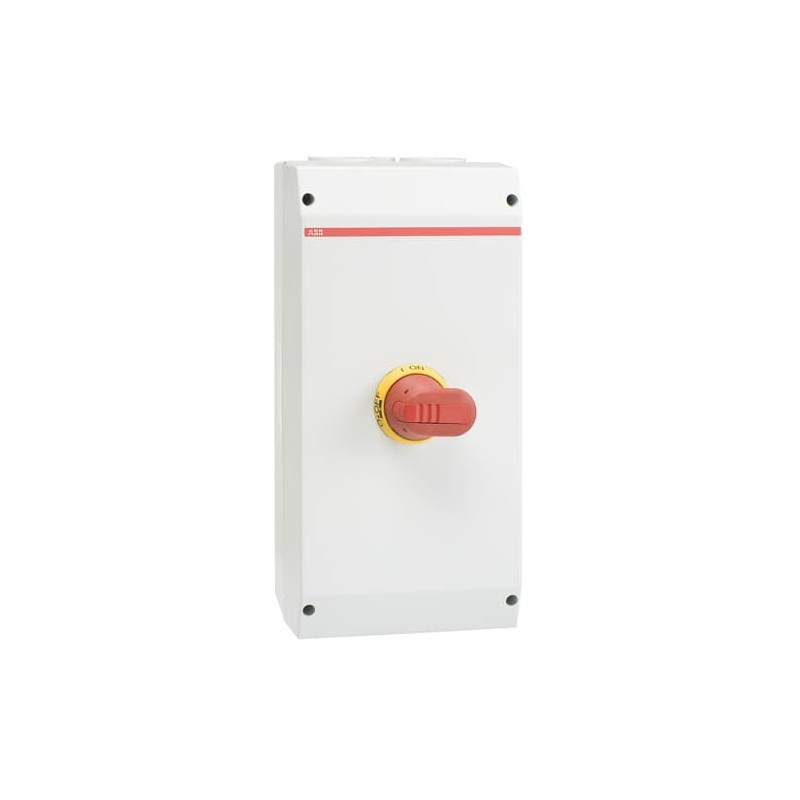

1SCA022615R0500 ABB Int. Boxed disconnector EMC OTE25A6B 6P
1SCA022615R0500
ABB
Int. Boxed disconnector EMC OTE25A6B 6P
OTE25A6B EMC safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 0633c75f-c489-4445-958e-31312f74301a Finland |
| Simplified SCIP | 9e31437b-f090-482b-af44-23f615c6b52f Germany |
| 93ba0b0e-baeb-4c5f-af92-7bf2ac6cca0a Greece | |
| 2f515993-e643-45a8-bcb7-f4d83e0ac237 Belgium | |
| 46fb1466-397d-4ae5-a22f-dc7989efc199 Germany | |
| f4d5d4df-9347-4207-8221-f0a61b6e7e2f Czech Republic | |
| b6a7ee86-253d-4ebf-9770-fa98e6fe69fc Croatia | |
| 15556f79-0351-481c-bd96-15b408c18ecd Hungary | |
| e74f13a9-30a4-4b57-911b-f66363150dfb Germany | |
| b10c33fe-1b30-423c-ad81-16b8a8d94477 Portugal | |
| 0cdac2ab-58de-4a93-b7c5-d2abfd86744b Bulgaria | |
| 90ed6267-a295-4101-9269-76a093eedc3f Germany | |
| de4bca24-ac23-44ed-8cd4-d7333e712ba0 France | |
| 3cc7b06d-9ffe-47e8-82fd-1bb6bf7c7f37 Hungary | |
| 8d288082-290d-4bff-8745-38d7a1e0dae4 Italy | |
| b955e366-2dc6-45f3-aa14-1ea9205de7ed Estonia | |
| 0f6355e3-0c68-4ef4-893a-7d909dbfd8a2 Belgium | |
| 0bd77090-c061-4bcf-a50b-7376d757fd53 Sweden | |
| 38e2bcd6-1690-49a5-b942-5af34c85d048 France | |
| 16371bfd-7fac-4ee9-b576-a7fd8575d426 Poland | |
| 28b0b3f2-5d9e-4ab1-a2e4-9286316d8a59 Poland | |
| bb77bb31-4f00-4587-b98e-943d0fdbdf76 Netherlands | |
| 96508db3-3080-45dd-b0bc-275dfaa23558 Sweden | |
| 806d0063-83a6-4ca3-b1b7-a3e15dd2a260 Denmark | |
| 97f615e6-989e-46e9-a3b8-dae0ea50115c Germany | |
| 0cb016d8-782e-4b37-a950-7bf02aa6df58 Poland | |
| a9fb03e9-4333-4026-aa75-ed569f43eacd Spain | |
| b0be3a1e-2acc-470f-8d76-8c74d6a296c9 Norway | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340003M0016 |
| 9AKK108466A4485 | |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Last Ordering Date | 2026-08-31 All Countries |
| Replacement Product ID (NEW) | OTE25GA6M |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 200 mm |
| Product Net Height | 400 mm |
| Product Net Depth / Length | 140 mm |
| Product Net Weight | 3.9 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 213 mm |
| Package Level 1 Depth / Length | 417 mm |
| Package Level 1 Height | 197 mm |
| Package Level 1 Gross Weight | 4.1 kg |
| Package Level 1 EAN | 6417019200279 |
| Technical | |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Top and/or Bottom |
| Cable Outlets Per Side | I-flange / I-flange |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm² |
| Screw Clamp / PE Terminal 4pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 6P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 45 A |
| (500 V) 45 A | |
| (690 V) 45 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 30 A |
| (500 V) 30 A | |
| (690 V) 20 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 15 kW |
| (500 V) 15 kW | |
| (690 V) 15 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 1.4 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kA |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | 13 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 13 mm |
| Tightening Torque | Main Circuit 2 N·m |
| Certificates and Declarations | |
| BV Certificate | 1SCC340018D0204 |
| Declaration of Conformity - CE | 1SCC340004D2705 |
| DNV GL Certificate | 1SCC340045D0203 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 750 V |
| Rated operating voltage (EF001435) | 750 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 30 A |
| Rated short-time withstand current lcw (EF007050) | 1 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 15 kW |
| Switching power at 400 V (EF009166) | 15 kW |
| Number of poles (EF001391) | 6 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
