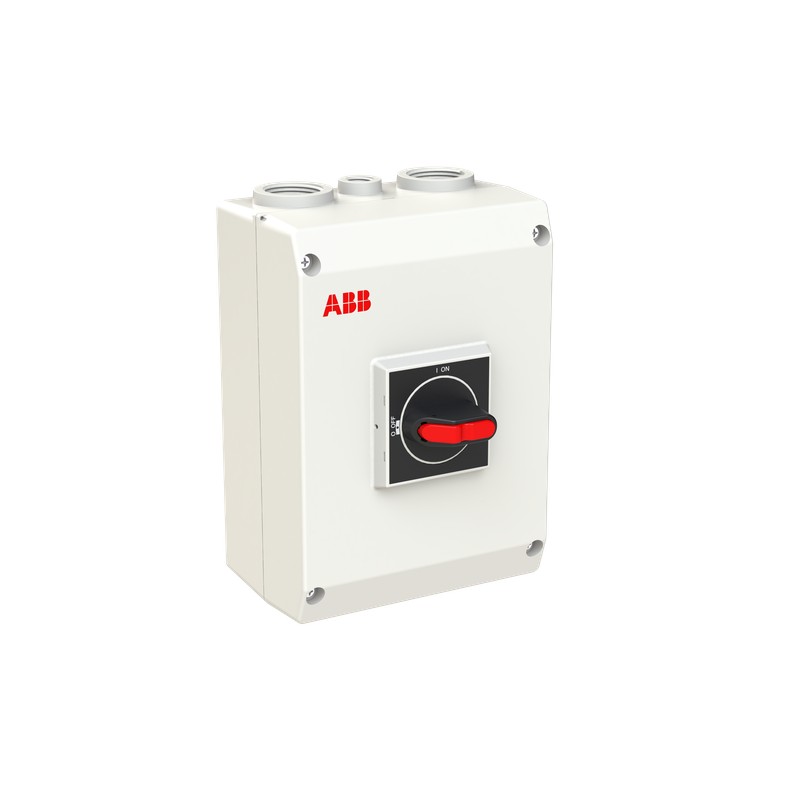

1SCA022613R2270 ABB Int. Boxed disconnector OTE25T3M

Reference: 1SCA022613R2270

Manufacturer: ABB

Description:

Int. Boxed disconnector OTE25T3M
OTE25T3M EMC safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 156,29 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP7cb3f5c9-d8c9-4f6b-9827-325a06e71c27 Finland
Simplified SCIP2d83f539-9375-4788-b365-5072eba1ca62 Germany
d36ede16-2542-4bdc-b41e-c57cb7ffd700 Bulgaria
d2d039b2-1be7-48ac-b645-ed54b3900eb4 Sweden
2d27b05f-c75a-4c11-9cf0-db3e2628e033 Poland
05bb4fd2-e096-4c5b-bdfe-fd94853fe875 France
470b6a79-36ab-49b4-b984-1af620cbe2d5 Germany
55c88af4-d5f6-4deb-845b-aee6e9d877b6 Germany
c77c18dd-bfa1-4237-8b05-ea05027a05e4 Sweden
53ca0321-d565-4e62-a04e-79c5295593ef Belgium
478993ea-6888-4880-8cf5-f28589f4faa4 Italy
d44a1754-ded2-45ca-9a41-e14dafb8b6fa Germany
2b04bd61-701d-4bcd-b805-9b7ae1894792 Hungary
144a92ff-04b2-427f-a558-f2d0e22be185 Spain
b37f6af1-b8e5-4bcd-bcfb-5906adc3c972 Poland
e2895251-7027-4670-8782-72df19498066 Norway
6abda426-ef2c-4daa-a6c0-3215cce7056e Hungary
c6f10c3b-ea3e-4fd5-968a-ccbcd8d7a33a Belgium
8ee262f6-6c0f-48e5-9b08-37c66bbfd060 Greece
24d3f085-7c26-4fa6-8d1f-f1899dc2623f Portugal
96c993e0-5248-4a3a-903e-5bf562a1a895 Estonia
239b8bef-5bad-4722-ab64-6c0f34e57ff1 Poland
a29eb366-6456-43ec-8dad-8a22458eb940 Netherlands
4fbd5af4-5373-41c4-830d-b98b52213b98 France
2cdb76fc-9358-4aa0-8a2a-67d7ce8e1f1a Czech Republic
88d23449-0bf7-42eb-a4bd-44cebf20282a Croatia
de57b55f-199e-4726-9e1a-ce4687d53ad2 Germany
92d24c9f-6e0e-4905-81e0-af4f73cd049f Denmark
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340003M0016
9AKK108466A4485
Mechanical DrawingsOTPK201490SM32.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTE40GT3M
Country or Territory of OriginFinland
Dimensions
Product Net Width145 mm
Product Net Height200 mm
Product Net Depth / Length90 mm
Product Net Weight0.8 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width162 mm
Package Level 1 Depth / Length222 mm
Package Level 1 Height148 mm
Package Level 1 Gross Weight0.9 kg
Package Level 1 EAN6417019199665
Technical
Cable Cross-Section1.5 ... 35 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xM32+M16 / 2xM32+M16
ColorRAL7035
Connecting Capacity Main CircuitScrew Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 63 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorBlack
Handle TypeSelector handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts1 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO1
Number of Poles3P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of Neutral TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 2.8 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 45 A
(500 V) 45 A
(690 V) 45 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 30 A
(500 V) 30 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 15 kW
(500 V) 15 kW
(690 V) 15 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 1.4 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 1 kA
Recommended Screw DriverMain Circuit Pozidriv 2
Special FunctionsEMC
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 2 N·m
Wire Stripping Length13 mm
Technical UL/CSA
Wire Stripping Length13 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening TorqueMain Circuit 2 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340004D2705
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3642654
E-Number (Norway)1429404
E-Number (Sweden)3140412

ETIM for 1SCA022613R2270 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value63 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value30 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value1 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value15 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value15 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value1
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
