ABBManual Switches1SCA022613R1200 ABB Int. Boxed disconnector OTP63A3M

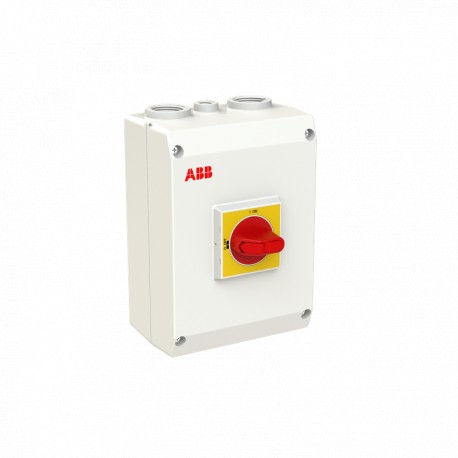

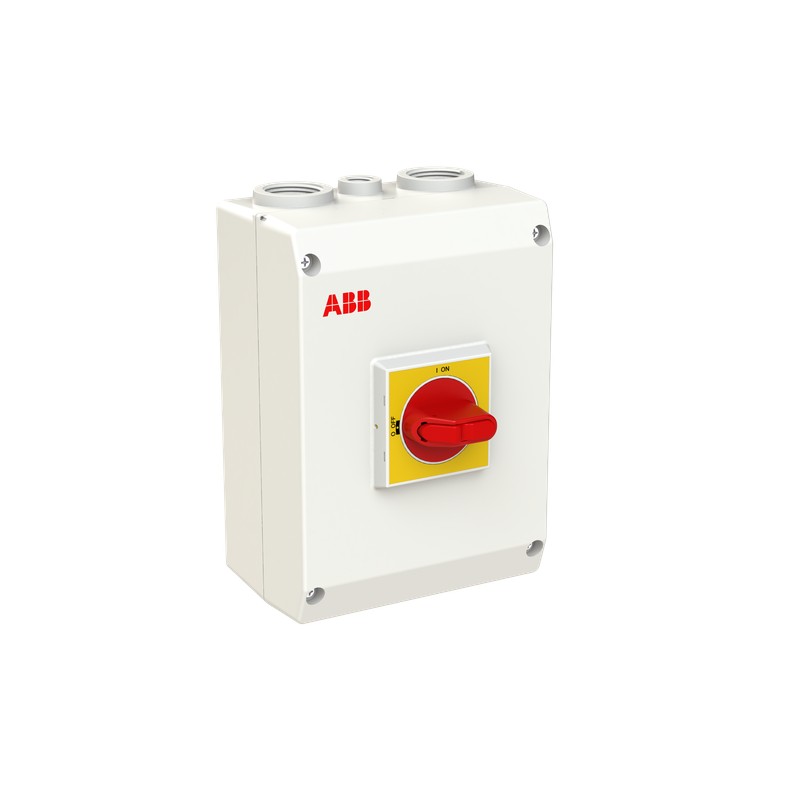

ABB 1SCA022613R1200 1SCA022613R1200 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022613R1200 ABB Int. Boxed disconnector OTP63A3M

Reference: 1SCA022613R1200

Manufacturer: ABB

Description:

Int. Boxed disconnector OTP63A3M
OTP63A3M Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 154,65 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP9748a569-f49c-4e34-be11-081a27efba67 Finland
Simplified SCIPc73f6865-a4aa-4493-9c01-0aa871dbd90a Sweden
d219df4a-7ac3-44a6-8e48-246da9afde77 Greece
aaeae332-d8cf-4532-8e67-0ab12aeb9f0c Sweden
ac50492f-9325-4559-bead-2688a112d6e2 Portugal
5cb28dc4-6851-434f-86ef-1057619f977d Poland
bb6d39aa-a3ab-469b-a2b8-023b076ec33d Netherlands
20cf5998-0d4c-4db2-9dc3-4147596f16b6 Croatia
2db47e4b-d3a1-4630-b7f1-7a37d78ddbc0 Germany
b94186a8-2973-4b9c-9955-eaec407beed6 Bulgaria
5ad4e126-06da-4b1b-a2a5-1a0917a010ad Estonia
187a412b-8980-4ce1-9011-d3cb31de62fe Hungary
e48c3262-ce37-42a1-a2a0-b73f5dba622f Denmark
b64cf8f6-b339-4b3b-bf94-65bac5100b0e Czech Republic
2a1ac0c6-e612-4c8d-90b6-15ae43895533 Spain
8f3e27ba-f71e-4b9c-9a41-db691c5bc0fe Hungary
73330b33-4442-4e1b-bad9-75969ef0e5be France
e0d17870-3d53-4852-b673-c8118d7e5052 Belgium
dc17b332-5ea2-4b80-89ae-8b258f196e45 Germany
3e9cf074-953d-400e-970f-a03d2eccba35 Germany
64f58e5b-2d17-4ece-b8c4-563023867656 Germany
5304d65e-e138-4399-a7f6-fcfa9a0ff2c9 Italy
872c92fd-5792-425c-b38f-d986cd966d3f Norway
d6fbcd69-a38e-41c4-a764-140cc1dd8b64 Belgium
f5f57448-3400-4222-aa0f-442eb9d19a51 Poland
d5eab47e-5204-459f-80ff-4e7389e41919 Poland
7912118b-423e-436b-803e-782b97fac456 France
c76ab271-7c2e-46cd-8d91-5c52f34e605d Germany
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340002M0012
Mechanical DrawingsOTPK201490SM32.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTP63GA3M
Country or Territory of OriginFinland
Dimensions
Product Net Width145 mm
Product Net Height200 mm
Product Net Depth / Length90 mm
Product Net Weight2.3 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width162 mm
Package Level 1 Depth / Length222 mm
Package Level 1 Height148 mm
Package Level 1 Gross Weight2.4 kg
Package Level 1 EAN6417019199566
Technical
Cable Cross-Section10 ... 70 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xM32+M16 / 2xM32+M16
ColorRAL7035
Connecting Capacity Main CircuitScrew Clamp 10 ... 70 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 115 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorRed / Yellow
Handle TypeSelector handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts1 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO1
Number of Poles3P
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 63 A
(500 V) 50 A
(690 V) 35 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 30 kW
(500 V) 30 kW
(690 V) 30 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 3.6 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kA
Recommended Screw DriverMain Circuit Hexagon 4
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 6 N·m
Wire Stripping Length20 mm
Technical UL/CSA
Wire Stripping Length20 mm
Recommended Screw DriverMain Circuit Hexagon 4
Tightening TorqueMain Circuit 6 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway)1429405

ETIM for 1SCA022613R1200 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value115 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value63 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value2.5 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value30 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value30 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value1
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
