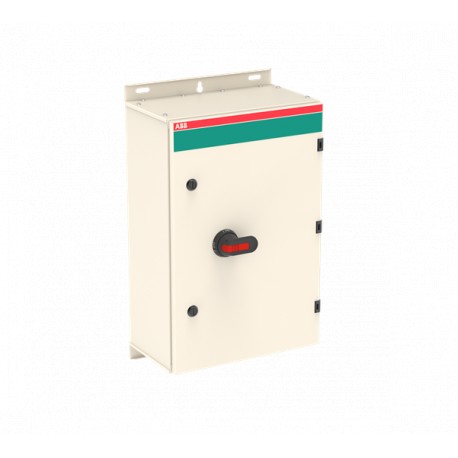

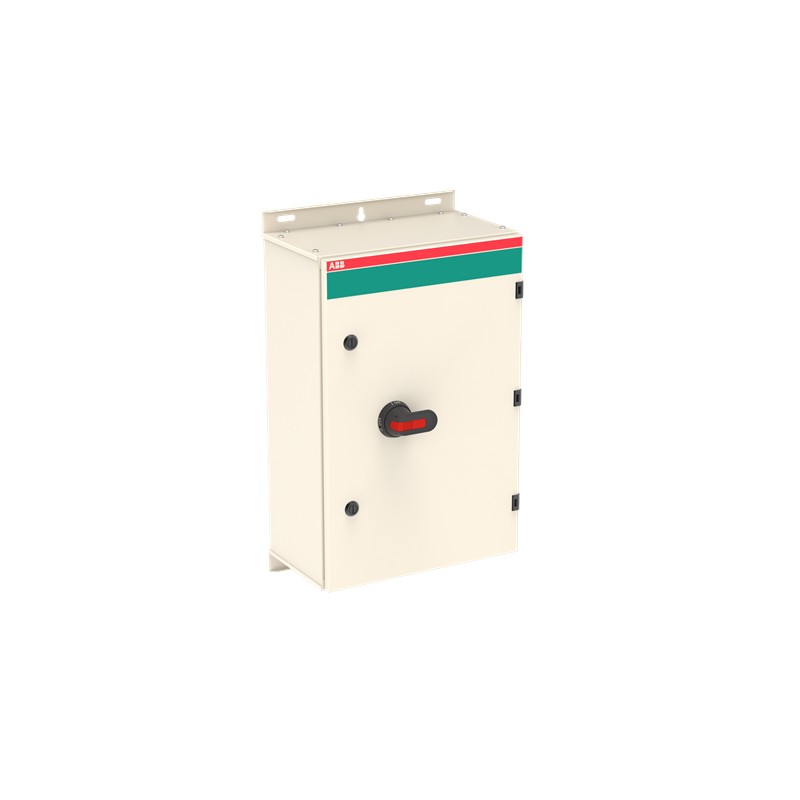

1SCA022602R0710 ABB Int. Boxed disconnector OT250KLUU3BZ
1SCA022602R0710
ABB
Int. Boxed disconnector OT250KLUU3BZ
OT250KLUU3BZ Encl. Switch Disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | bcc8b84f-d36c-4221-9d0c-d2f2916a7838 Finland |
| Simplified SCIP | 10b3ed92-b349-4c22-a2ad-85b9a7548b74 Germany |
| 820b8909-7de9-4b98-a3e4-1353aa22b8b2 Germany | |
| 60d767d3-795e-45a6-9405-0864e7067e9b Germany | |
| b19ed835-4e07-4733-952c-85e30246db49 Czech Republic | |
| daa8761b-214e-4839-adda-27ba925fe3f5 Croatia | |
| c7f88f37-a37c-488f-bcbd-81ee51539220 Spain | |
| bde0235f-78a7-4bbf-8eb2-c69b27e06266 Hungary | |
| 58ba43e7-74b3-4319-8cd7-1041e9270c90 Belgium | |
| 4188ba47-d479-498e-a13d-e1c344207c57 Poland | |
| a06b10d9-f83e-4e8b-85e9-83af4ab2e64d Sweden | |
| 255e9dee-d0be-41cb-8feb-8d4d2bb3ce07 Italy | |
| f5ee481a-988a-4277-bcbf-7c9870e6e588 Sweden | |
| db8d5efc-0743-4e06-9dbe-035960fc4872 France | |
| b929ded6-3635-4bbb-af17-f30c7e76df27 Germany | |
| ecd6dc35-d5bf-4285-a378-0034bfd708f4 Germany | |
| bc0a8fe7-a0a2-49e1-9065-f98ce2e1be0f France | |
| 24273e66-79fd-4f54-81cf-d280f6862f07 Hungary | |
| 35601eeb-1604-4137-9790-9159c8949bc5 Portugal | |
| dfe1d377-5586-4af7-8c9d-4471a5647295 Greece | |
| 5d5a6ebb-a120-47a2-9f00-ef99d57bc0f2 Bulgaria | |
| 5f1179e5-bd36-4fe0-9dc5-5d6aef4075fb Poland | |
| 82afc978-a8dc-4b46-ba50-09f08a12d911 Norway | |
| 3c0b7bd3-c894-4651-9e58-37fdf48b9c53 Belgium | |
| 0038e334-6f0e-489c-8306-f1cc09dd0c00 Estonia | |
| 9812582f-69a9-488c-8ba7-02afe5006a7a Netherlands | |
| d1d3eb72-5d24-4c41-9a5f-1e5a92cabe49 Poland | |
| daf7991b-e618-4b4d-9580-a132520795a5 Denmark | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM604023PBL.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 15.81 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 17.5 kg |
| Package Level 1 EAN | 6417019195162 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 4pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW |
| (500 V) 160 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 132 kW |
| Switching power at 400 V (EF009166) | 132 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
