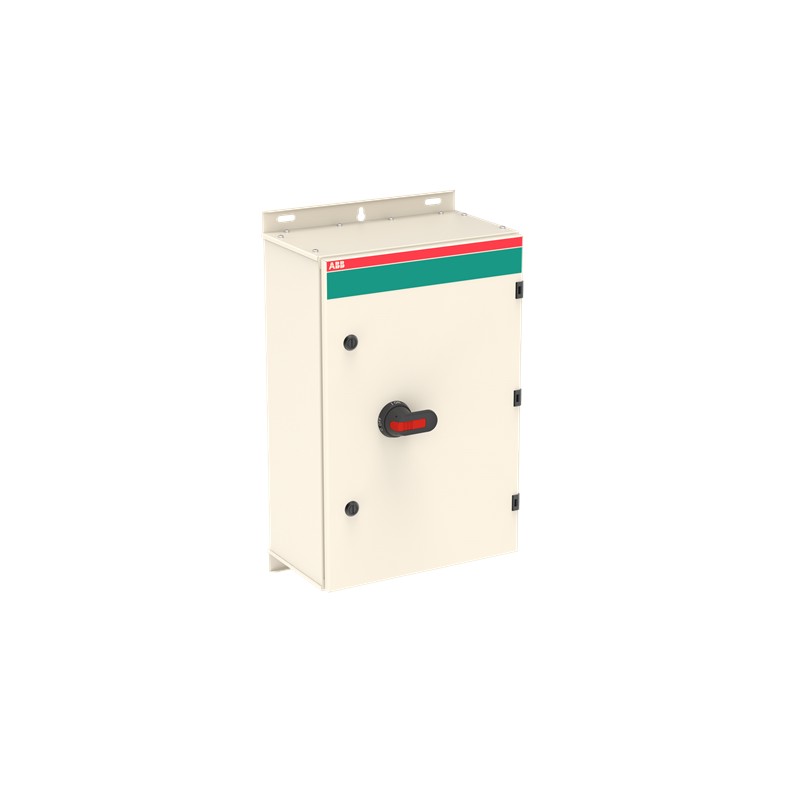

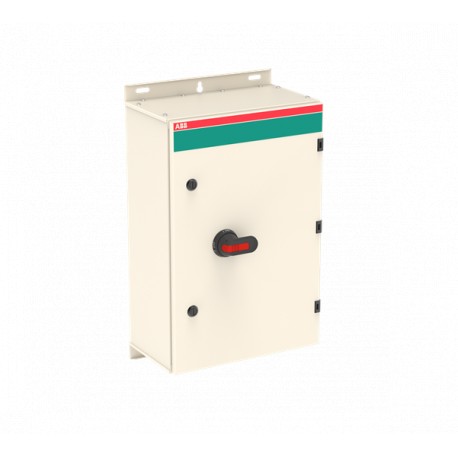

1SCA022602R0630 ABB Int. Boxed disconnector OT200KLUU3BZ
1SCA022602R0630
ABB
Int. Boxed disconnector OT200KLUU3BZ
OT200KLUU3BZ Encl. Switch Disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a825c878-8c1b-4303-9516-05b78fbb5e4d Finland |
| Simplified SCIP | 112c8426-c2c3-473c-ae49-ed2caf9acf1d Germany |
| 26051be3-618e-4bdf-a704-8df2d3a93fab Bulgaria | |
| 659c0f5b-2b98-4a40-85fe-eb7d99775393 Sweden | |
| be307161-6fb9-4d4f-9c1d-8e2b7b6c2d6c Italy | |
| a0a63681-42cc-4a6f-b7a6-61e77f206dcd France | |
| 94873881-9a27-4424-8dbb-b7586fbcc7ad Netherlands | |
| 6b70fcb8-3349-4dcc-b9a6-732334518763 Portugal | |
| 40b77fce-88ca-4b4e-8d64-3b1d4b3570d8 Greece | |
| 3d23e172-c2f6-46ed-9d7c-c801be447e39 Poland | |
| 6c3d1b8e-6c04-4e23-83dd-dffa9655af4c Norway | |
| 7471afb0-b7a7-4c9f-88ab-6374ea478720 Belgium | |
| c1b7d95f-62b5-464e-ad3b-3a25e1cf6fd1 Poland | |
| 0267fcc2-a750-4478-a1be-7bc7bcf41091 Poland | |
| 4f5e4b97-3e43-4472-bf85-16bbba7c7ee3 Estonia | |
| 4da69bb9-0584-432d-9b0e-6e09a5634cc1 Germany | |
| e6093420-bb64-45a0-b402-a1ef2aa64ecd Germany | |
| 51b7cac4-0414-4942-a8c3-6564329c93cc France | |
| f23fbbb7-2f33-4654-ac95-b4b2be857136 Sweden | |
| b9201bce-a882-4ba1-84a8-2ffbe7724386 Germany | |
| bab663e1-d21f-41b9-a86e-2c1f1800c197 Denmark | |
| 2178fb62-1293-41b1-ab5c-671ac6819725 Germany | |
| 7bd3d22c-63de-45b0-bb78-2c9f4826810d Croatia | |
| 62001f29-195a-459a-9333-077e2850c237 Czech Republic | |
| 2603dfb7-1fa5-499c-9ef4-0a8d8ee6da8a Hungary | |
| 1e3a13aa-1edc-4af6-949e-9fc958eb1827 Belgium | |
| 895099f0-eb3a-41f7-8f0a-554e7e7b2ac8 Hungary | |
| 89e5de08-706d-497d-a849-06e30019c295 Spain | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM604023PBL.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 15.61 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 17.3 kg |
| Package Level 1 EAN | 6417019195155 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 4pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| (500 V) 132 kW | |
| (690 V) 160 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 200 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 200 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 110 kW |
| Switching power at 400 V (EF009166) | 110 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
