ABBManual Switches1SCA022580R8170 ABB Int. Boxed disconnector OTL36T6B

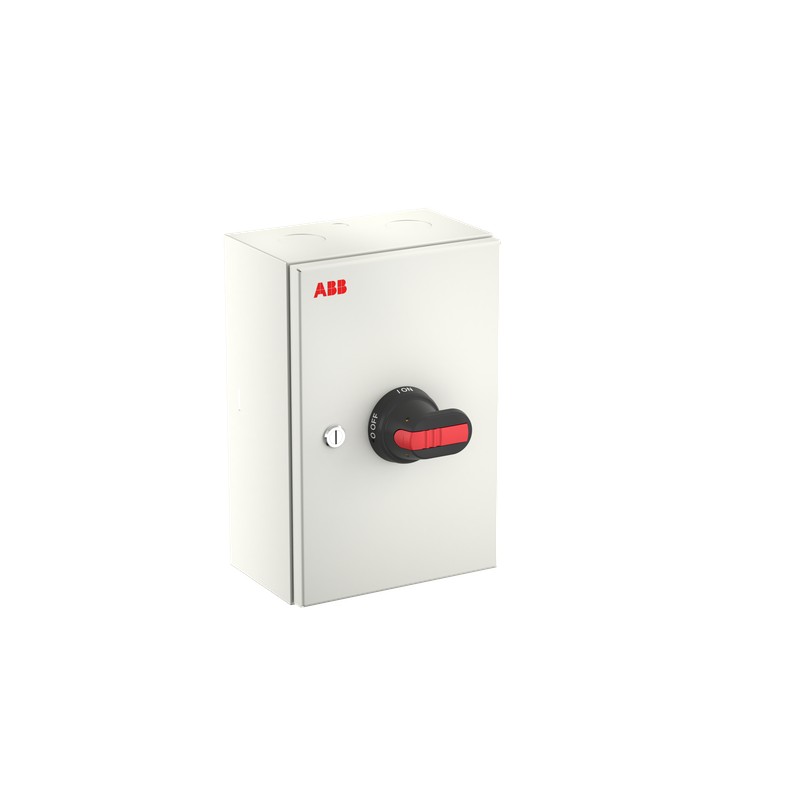

ABB 1SCA022580R8170 1SCA022580R8170 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022580R8170 ABB Int. Boxed disconnector OTL36T6B

Reference: 1SCA022580R8170

Manufacturer: ABB

Description:

Int. Boxed disconnector OTL36T6B
OTL36T6B Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 329,33 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP714c55ed-5f37-4a85-88d8-dae98d03abb2 Finland
Simplified SCIPb7fd313e-b252-4c20-b1bd-0469318e1c30 Germany
4fc8f021-e0c5-4b31-99a5-81c959af49c7 Spain
8ac90d2f-4780-429b-b590-239febd88b21 Denmark
8b31ab48-6e96-48d3-83be-89ad569995fb Belgium
5a648cc0-f48a-4bad-9ae4-8fb9281ad2cf Hungary
3d5291a1-45e1-42b5-8589-8f108d5a1e8b Estonia
19a0e6b9-f40a-4a0c-8bc3-7ec251d00756 Greece
1d186cce-a713-425a-9ce6-49f8b6f11286 Portugal
7e4a847b-d8ce-4f70-bc8e-facea2109ef7 Poland
2b2b449b-2f4c-44b1-9996-d8578d6a7bfc Netherlands
3edf0a59-91f1-4f1f-95d1-213a6315a00e France
b9d1b1fa-a4b9-4e2f-b9de-c30efb0f2fa9 Poland
6ffa161b-8d1e-49fe-8854-c5d4d9f6fee8 Germany
6aa3023b-1207-42b3-ba8b-bf64ce89c141 Germany
1b40e06b-a66a-43ab-a5a1-549bfbb723bd Croatia
f0d53495-9564-4d50-8195-52b991f77270 Germany
a3bb93be-775b-48aa-ad7e-562ea1342f86 Sweden
5bb1311a-5f11-4515-bdc9-7525cb3c244e Hungary
22c3980a-bdd3-4091-8555-bdc50aef104f Germany
2ab72b2f-85ee-4fca-ac47-f7adf00a5468 Czech Republic
228d9992-4459-4664-8a49-78788c551044 France
773d1736-4791-4b03-8fbc-817df93a99f0 Italy
894de335-0fbf-441e-87f6-48c36fc72d47 Norway
fff993bf-8241-4042-8c63-36e45bf9167c Belgium
5e99f7f0-ea72-479a-ac4a-0b00e189692e Poland
1d4b5094-91bf-4612-825c-2929e69e1c2a Sweden
54dc9066-8527-4be0-8cc0-826317bc5217 Bulgaria
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340006M0013
Mechanical DrawingsOTLK251611PBB.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTL63GT6M
Country or Territory of OriginBulgaria
Dimensions
Product Net Width165 mm
Product Net Height250 mm
Product Net Depth / Length110 mm
Product Net Weight3.2 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width212 mm
Package Level 1 Depth / Length313 mm
Package Level 1 Height191 mm
Package Level 1 Gross Weight3.4 kg
Package Level 1 EAN6417019187952
Technical
Cable Cross-Section1.5 ... 35 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per SideB-flange / B-flange
ColorRAL7035
Connecting Capacity Main CircuitScrew Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 2pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 80 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialSteel sheet
Handle ColorBlack
Handle TypePistol handle
Impact Resistance RatingHousing IK09
Maximum Mounted Auxiliary Contacts1 NO, 1 NC
Mounted Auxiliary Contacts1 NO, 0 NC
Neutral TypeNo Neutral Terminal
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO1
Number of Poles6P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 4.5 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 45 A
(500 V) 45 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 22 kW
(500 V) 22 kW
(690 V) 15 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 2.1 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 1.5 kA
Recommended Screw DriverMain Circuit Pozidriv 2
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 2 N·m
Wire Stripping Length13 mm
Technical UL/CSA
Wire Stripping Length13 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening TorqueMain Circuit 2 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340005D2704
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden)3140572

ETIM for 1SCA022580R8170 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value80 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value45 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value1.5 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value22 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value22 kW
Feature nameNumber of poles (EF001391)
Feature value6
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value1
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
