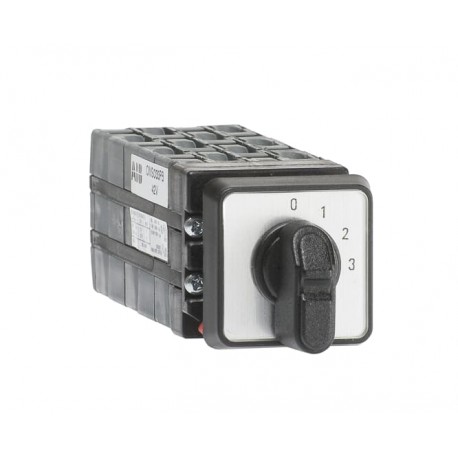

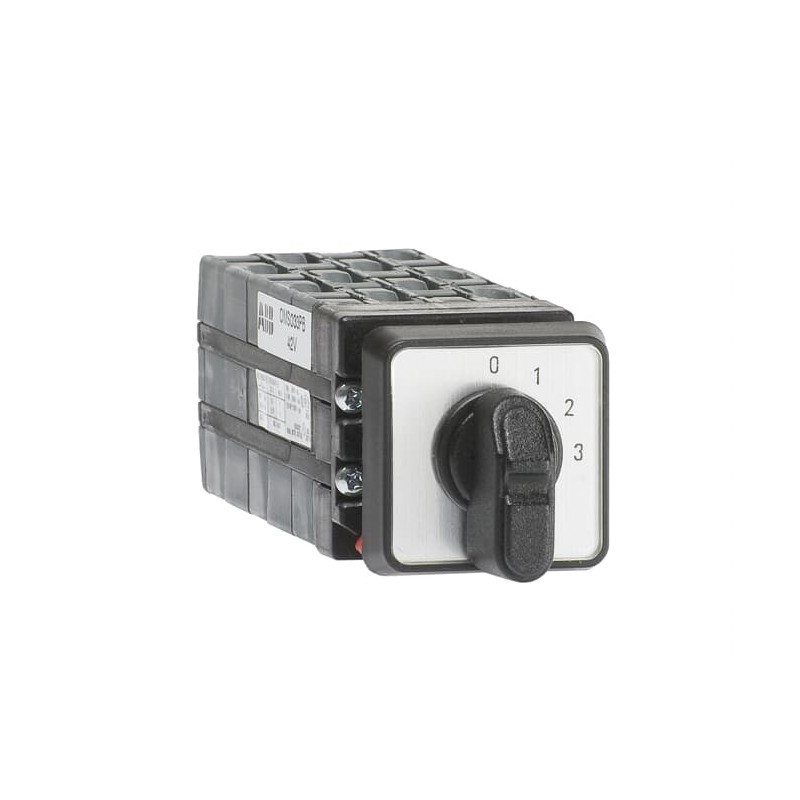

1SCA022533R1510 ABB OMSO33PB Cam switch
1SCA022533R1510
ABB
OMSO33PB Cam switch
Service Breakers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- OMSO33PB
- Product ID:
- 1SCA022533R1510
- EAN:
- 4034656521370
- Catalog Description:
- OMSO33PB Cam switch
- Long Description:
- Black handle and frontplate with standard text are included. Special engraved frontplates to be ordered as separate items.
Ordering
- Last Ordering Date:
- 2020-09-30 All Countries
- Replacement Product ID (NEW):
- 1SCA126566R1001
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC302003C0201
- Instructions and Manuals:
- 1SCC302004M0203
Dimensions
- Product Net Width:
- 30mm
- Product Net Height:
- 30mm
- Product Net Depth / Length:
- 91mm
- Product Net Weight:
- 0.07kg
Technical
- Rated Operational Current AC-22A (Ie):
- (500 V) 10 A
- Rated Operational Current DC-21B (Ie):
- (440 V) 10 A
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 10 A
- Rated Continuous Thermal Current:
- FullyEnclosed 10 A
- Rated Impulse Withstand Voltage (Uimp):
- 2.5 kV
- Rated Operational Voltage:
- 250 V
- Handle Type:
- Basic handle
- Special Functions:
- Multistep switch: 3-step, with 0-position: 12 o'clock, step angle 30°, front plate 0-1-2-3
- Color:
- Black
- Mounting Type:
- Snap-on door mounting
- Number of Contacts:
- 9
- Number of Poles:
- 3
- Enclosure Type:
- Not enclosed
- Terminal Type:
- Screw Terminals
Technical UL/CSA
- Ampere Rating UL/CSA:
- 600 V AC 10 A
Environmental
- Environmental Information:
- 1SCC302003D0201
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SCC302001D0204
- Environmental Information:
- 1SCC302003D0201
- Instructions and Manuals:
- 1SCC302004M0203
- RoHS Information:
- 1SCC302004D0201
Container Information
- Package Level 1 Units:
- 10 piece
- Package Level 1 Width:
- 30 mm
- Package Level 1 Depth / Length:
- 91 mm
- Package Level 1 Height:
- 30 mm
- Package Level 1 Gross Weight:
- 0.07 kg
- Package Level 1 EAN:
- 4034656521370
Classifications
- Object Classification Code:
- Q
- ETIM 5:
- EC002611 - Control switch
- ETIM 6:
- EC002611 - Control switch
- ETIM 7:
- EC002611 - Control switch
- UNSPSC:
- 39122217
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
