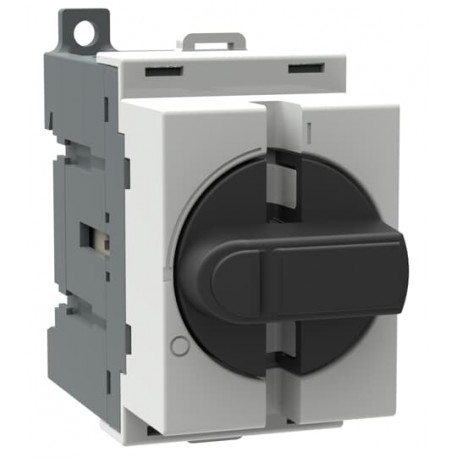

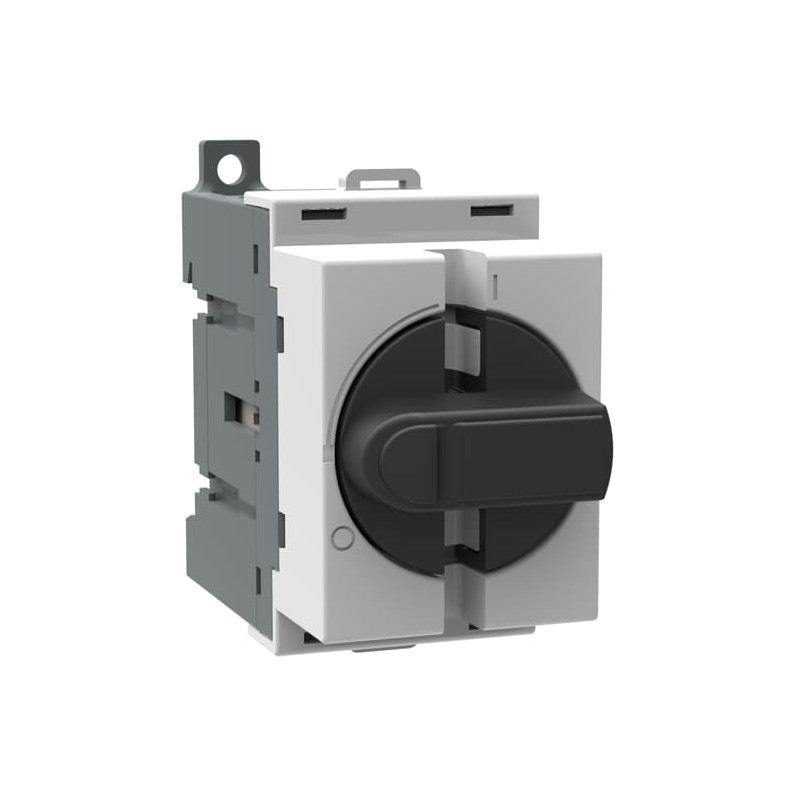

ABB 1SCA022497R0310 1SCA022497R0310 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022497R0310 ABB OT25M3 disconnect switch

Reference: 1SCA022497R0310

Manufacturer: ABB

Description:

OT25M3 disconnect switch
Switch disconnector OT25M3
OT25M3 SWITCH-DISCONNECTOR

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 35,51 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ABB EcoSolutions
Environmental Information1SCC301262D0201
Environmental Product Declaration - EPD1SCC301278D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301052M0006
Environmental Product Declaration - EPD1SCC301278D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC301262D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width68 mm
Product Net Height35 mm
Product Net Depth / Length73 mm
Product Net Weight0.09 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width82 mm
Package Level 1 Depth / Length103 mm
Package Level 1 Height86 mm
Package Level 1 Gross Weight0.1 kg
Package Level 1 EAN6417019158396
Technical
Cable Cross-SectionCu 0.75 ... 10 mm²
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 32 A
Conventional Thermal Current (Ithe)Fully Enclosed 32 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Handle TypeHandle and shaft not included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 0.6 W
Rated Conditional Short-Circuit Current (Inc)(40 A fuse, ≤415V) 50 kA
(25 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 25 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 25 A
(500 V) 25 A
(690 V) 25 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 20 A
(500 V) 20 A
(690 V) 11 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 4 kW
(400 ... 415 V) 9 kW
(500 V) 9 kW
(690 V) 9 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 0.71 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 0.5 kA
Special FunctionsNo
StandardsIEC 60947-3
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 0.8 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 0.8 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301335D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301166D2703
UL CertificateNo certification needed
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden)2102723

ETIM for 1SCA022497R0310 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value32 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value20 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value25 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value0.5 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value9 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value9 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
