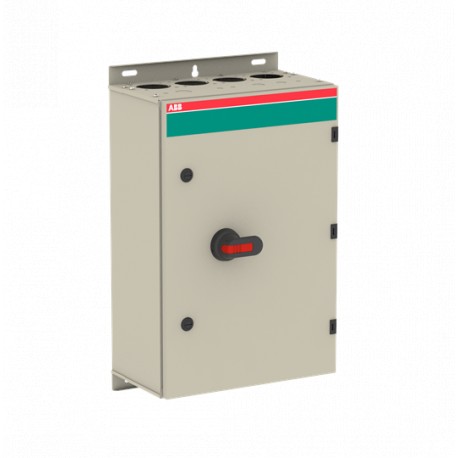

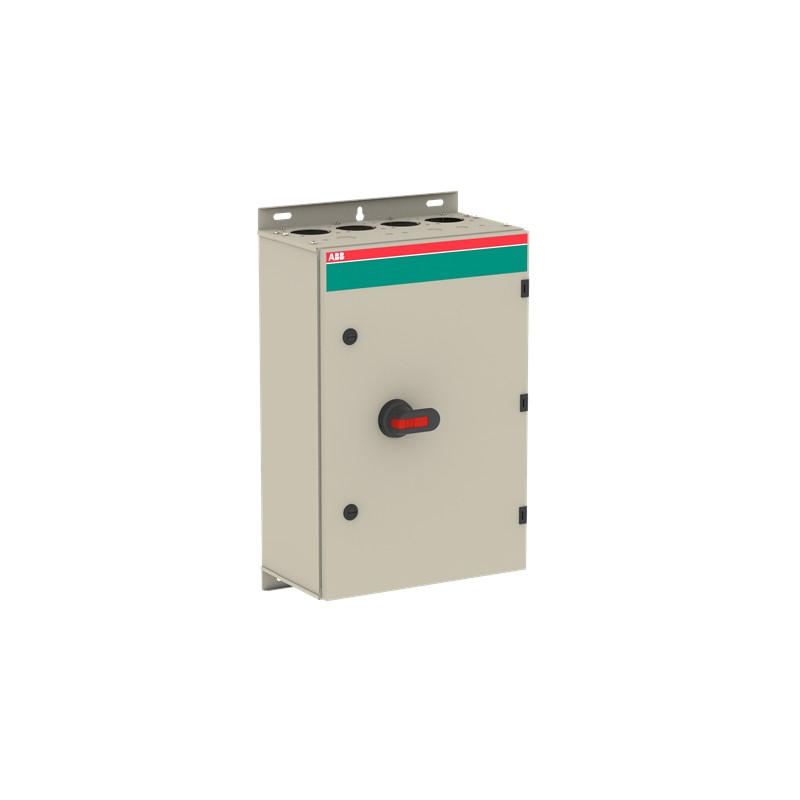

1SCA022461R5670 ABB Int. Boxed disconnector OT250KLRR4TZ
1SCA022461R5670
ABB
Int. Boxed disconnector OT250KLRR4TZ
OT250KLRR4TZ Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a658310c-e80a-4323-b5e9-407365d3a7b6 Finland |
| Simplified SCIP | fcfb0514-6d24-4830-97d3-3e91fd892077 Germany |
| f55e028d-52fa-42ce-b757-3c9ec73d53e8 Greece | |
| 9489c245-e479-4828-9148-605ee0c1ea94 Spain | |
| 77d25a41-24d4-4c1a-93ca-8cd5d5086a3a Germany | |
| 3db68693-0ff7-49cd-9856-546e62eff8c4 Denmark | |
| 1bdc0fc0-607d-4f88-8abb-45d5b68600d9 Belgium | |
| 4a4752ae-6d68-4221-8d58-a6383574c308 Croatia | |
| 4f9d683e-cea7-46ab-84bd-ce69c65dcfbc Czech Republic | |
| a9a534bb-46a5-4c5d-8585-0fde9d8a2ce9 Hungary | |
| f7dbfa2f-8f6a-47d0-9e89-9d0df479bcf5 Italy | |
| 3b0057f2-d267-4885-8cd9-e6a532484e79 Poland | |
| 52e0266f-f886-48a4-8a32-5566205e610a Netherlands | |
| 02919484-3f9a-4c50-988e-e6417ad7a9ee Poland | |
| 01f5ac01-125b-4152-bbe9-e7b7ced67c1e Bulgaria | |
| 9b81ac25-879a-42f3-a69a-5ce57ab831c5 Portugal | |
| fc1e446a-b1aa-4677-8d5e-d589d608f613 Sweden | |
| 8cd6bae3-2b7d-40a8-96af-7840e7d00386 France | |
| e6811f9d-2e01-4066-acce-0dec12e08fab Poland | |
| deab9e1f-7c01-43d7-bb27-4350c990005d Sweden | |
| 22667005-7818-4d6f-87e8-34cad53ca81f France | |
| 1555d90f-b88b-441d-8e0b-22900e62a89e Belgium | |
| 17e8ce1b-e400-4824-93e9-0d9015f13a0c Germany | |
| 5a7a99c9-66bd-4693-ae94-015b6234191b Hungary | |
| c9a5f92d-56fb-4554-8e5c-ca931870faf8 Estonia | |
| 3a788455-f3a1-4da7-be79-da64bdc77311 Germany | |
| 4fd0e9b2-13e3-4e56-9050-4443d86f6722 Norway | |
| 433e7e59-8ef5-4527-a40b-5c2c92b1bbd2 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM604023P4R.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 15.31 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 17 kg |
| Package Level 1 EAN | 6417019144504 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 4pc,10 ... 70+4pc M8 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW |
| (500 V) 160 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 132 kW |
| Switching power at 400 V (EF009166) | 132 kW |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
