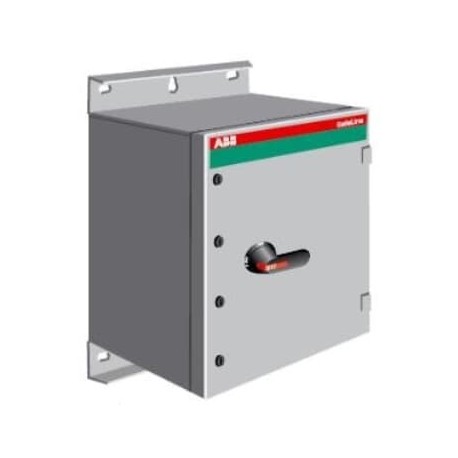

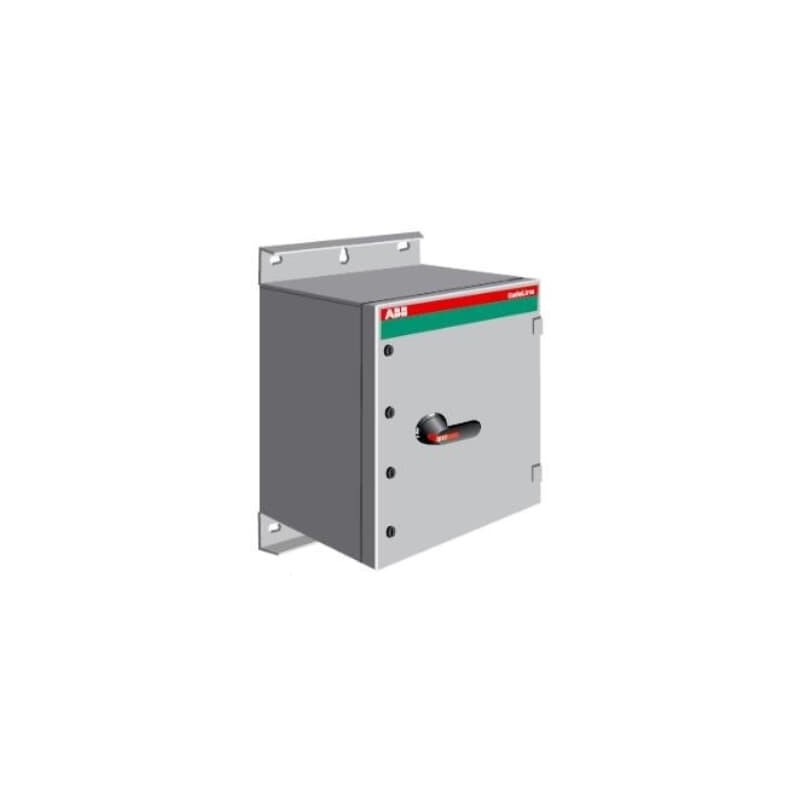

1SCA022460R9940 ABB Int. Boxed disconnector OT630KAUR6TZ
1SCA022460R9940
ABB
Int. Boxed disconnector OT630KAUR6TZ
OT630KAUR6TZ Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 6983add5-e216-44f8-b6f4-a68ab79f216f Finland |
| Simplified SCIP | e8e780c6-bfe8-4bd5-b106-aa8d8a3a2aa7 Germany |
| e6373067-2678-4e86-9d50-6a4e1a07d5fc Sweden | |
| 8c3f0723-4e81-4dd0-a213-ab412c541a80 Bulgaria | |
| 00034f6e-0f24-4e4d-b198-22908428af30 France | |
| 03382530-0fa6-424e-8326-c5da158047ff Poland | |
| e3644fd3-b11f-4176-8423-7b48fd9fba9d Estonia | |
| a46652cc-24d7-4bfe-b409-40d6503539aa Netherlands | |
| c67fa896-b859-4e7e-b9f9-315b061da1ce Portugal | |
| 39e591d1-a8df-4923-a2b2-db270541b50b Greece | |
| 65bad011-bfdd-4a03-8e56-a7619ece0d4c Hungary | |
| f63ab365-97b7-4532-a8b0-a1dda09929b4 Belgium | |
| 31adf7d8-b125-4e4e-9f37-919e968588bd Spain | |
| 9685e1d0-77eb-4e09-a4cd-3500de0a0ef6 Hungary | |
| 3b9c5871-52c1-482b-b535-af8f19a88158 Germany | |
| f3129f9e-0ea4-42d1-ae15-28298289487a Sweden | |
| 7476a1e8-a301-4347-9509-b6d7fd1746ad France | |
| 1a577843-02f1-408a-8383-7c053d67f313 Germany | |
| 66600d34-4bd8-44a4-9377-6b5034985a2d Germany | |
| e196c6fd-e38e-4023-83fa-0af20f83b7ae Poland | |
| 3a54667c-b171-44b8-b29d-e45ab70d0eec Norway | |
| 3bf312e4-f34a-4f7a-8453-83be36e578a6 Croatia | |
| 9c79385c-085a-4357-88d7-ad61d70ae4e0 Czech Republic | |
| f4cc169e-a136-4558-a8de-19ff1ea471fa Poland | |
| c941abc3-9dad-4467-a9b3-4bb5e4b0795d Belgium | |
| 2168ad6f-4b06-48d7-b0b0-4493cf483b22 Italy | |
| 4e4101a0-b417-4d4d-b9f5-d417090b9c5d Germany | |
| c11ab6d0-02a6-4cb9-8a4e-b9d48fc6015e Denmark | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM108033PBL8R.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 800 mm |
| Product Net Height | 1000 mm |
| Product Net Depth / Length | 330 mm |
| Product Net Weight | 39.8 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 815 mm |
| Package Level 1 Depth / Length | 1310 mm |
| Package Level 1 Height | 425 mm |
| Package Level 1 Gross Weight | 46 kg |
| Package Level 1 EAN | 6417019144177 |
| Technical | |
| Cable Entry Position | Bottom/Bottom |
| Cable Outlets Per Side | Blank / 8xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm |
| Screw Clamp / PE Terminal 8pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC |
| Mounted Auxiliary Contacts | 4 NO, 2 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 2 |
| Number of Auxiliary Contacts NO | 4 |
| Number of Poles | 6P |
| Pollution Degree | 3 |
| Position of Line Terminals | Bottom In - Bottom Out |
| Position of PE Terminals | Bottom In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 25 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A |
| (500 V) 570 A | |
| (690 V) 570 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A |
| (500 V) 570 A | |
| (690 V) 570 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW |
| (500 V) 400 kW | |
| (690 V) 560 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 75 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340029D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642851 |
| E-Number (Sweden) | 3135050 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 570 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 570 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 315 kW |
| Switching power at 400 V (EF009166) | 315 kW |
| Number of poles (EF001391) | 6 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Number of auxiliary contacts as normally open contact (EF001376) | 4 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
