ABBManual Switches1SCA022430R2380 ABB Int. Boxed disconnector OTP90T6B

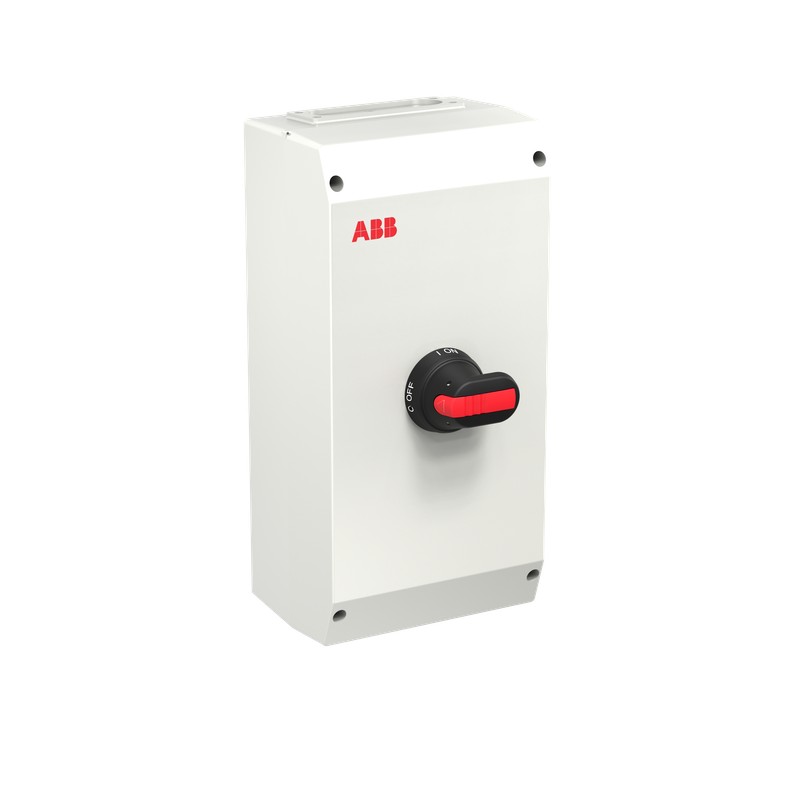

ABB 1SCA022430R2380 1SCA022430R2380 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022430R2380 ABB Int. Boxed disconnector OTP90T6B

Reference: 1SCA022430R2380

Manufacturer: ABB

Description:

Int. Boxed disconnector OTP90T6B
OTP90T6B Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 361,68 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP78dd431c-00a9-4440-86e5-f78b51ce8c49 Finland
Simplified SCIPb809b56d-5ec0-4c7e-87e1-0f97aac342f6 Germany
3f9b8226-090f-48ce-abf9-8b20bacfb147 Greece
51e4d3e4-13c8-4ad5-99de-66e1509241ec Estonia
abbc340f-c00c-4757-b94c-6b29e8b58d1c Czech Republic
f8c3d96f-cf5d-48df-9a3a-a13f4120e5a2 Croatia
4ceb1345-bb7a-4f0c-bdfc-a250156b5bca Poland
33c1d525-8faa-4c9c-b314-afd5f6dae1e7 Hungary
135a6fac-daf5-405f-aa98-1688303bb6a8 Poland
04661d14-a1a5-4b21-8bcf-9f4bda666234 Sweden
880e0b15-73e4-4e9e-9e64-ccbc042ea8d9 Bulgaria
dce8b0e7-4b34-4c3f-8d9b-16ab4f94f54f Portugal
72365eb1-94c5-45e4-8db9-17931a37b849 Spain
4bddd6c9-1230-437b-92ef-d1c7d6600a78 France
3fb8918a-f347-44c3-aea0-75e353635504 France
29a68093-6ee4-41c5-a96f-bb24071b6110 Hungary
ed0f77da-da4e-45bb-82a4-a1b0f71e1f0f Germany
07bd3bd4-82ce-455c-9a4a-0203ce70bdea Denmark
4f6beffb-4bbe-46eb-8fdd-bec458f658b7 Germany
dc4b6166-6782-4796-8f5d-705181d08efd Poland
7afa9b78-2ef2-4208-9a9f-555b716376d5 Norway
ca83284d-8aec-402b-90b2-3e6c4e3fe1e9 Belgium
f3bd856e-16d8-4d40-b49c-14be40e2c678 Italy
a5d19896-9591-4f18-9903-c91c23fad24f Netherlands
f92a5c80-96ad-4ce9-8ae8-0c60fca2c909 Belgium
7b569125-ea83-4577-b498-15d93f9fca42 Sweden
dbe6ba19-41ba-4c24-88f8-018bced19540 Germany
0fdfca6a-b349-411f-9190-4931be6da84c Germany
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340002M0012
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)No new type
Country or Territory of OriginFinland
Dimensions
Product Net Width200 mm
Product Net Height400 mm
Product Net Depth / Length140 mm
Product Net Weight3.1 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width213 mm
Package Level 1 Depth / Length417 mm
Package Level 1 Height197 mm
Package Level 1 Gross Weight3.3 kg
Package Level 1 EAN6417019135540
Technical
Cable Cross-Section10 ... 70 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per SideI-flange / I-flange
ColorRAL7035
Connecting Capacity Main CircuitScrew Clamp 10 ... 70 mm²
Screw Clamp / PE Terminal 4pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 125 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorBlack
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts1 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO1
Number of Poles6P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of Neutral TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 6.3 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 125 A
(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 90 A
(500 V) 70 A
(690 V) 50 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 45 kW
(500 V) 45 kW
(690 V) 45 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 3.6 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kA
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 6 N·m
Wire Stripping Length20 mm
Technical UL/CSA
Wire Stripping Length20 mm
Tightening TorqueMain Circuit 6 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3642329
E-Number (Norway)1428234
E-Number (Sweden)3140178

ETIM for 1SCA022430R2380 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value125 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value90 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value2.5 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value45 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value45 kW
Feature nameNumber of poles (EF001391)
Feature value6
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value1
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
