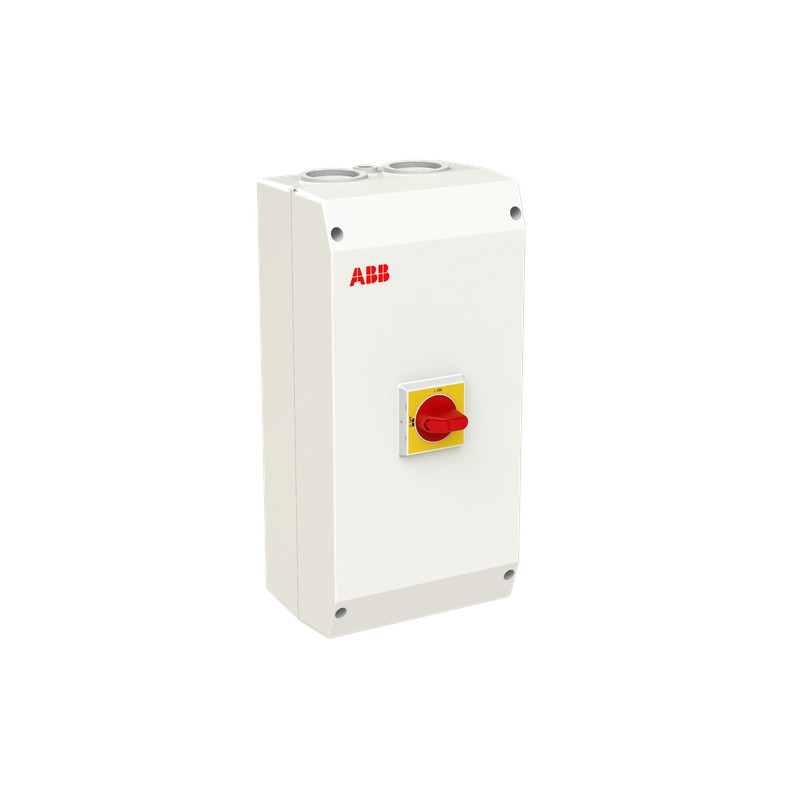

1SCA022430R0410 ABB Int. Boxed disconnector OTP90A3B

Reference: 1SCA022430R0410

Manufacturer: ABB

Description:

Int. Boxed disconnector OTP90A3B
OTP90A3B Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 274,43 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340002M0012
Mechanical DrawingsOTPK402014SI.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTP100GA3M
Country or Territory of OriginFinland
Dimensions
Product Net Width200 mm
Product Net Height400 mm
Product Net Depth / Length140 mm
Product Net Weight2.3 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width213 mm
Package Level 1 Depth / Length417 mm
Package Level 1 Height197 mm
Package Level 1 Gross Weight2.5 kg
Package Level 1 EAN6417019135472
Technical
Cable Cross-Section10 ... 70 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per SideI-flange / I-flange
ColorRAL7035
Connecting Capacity Main CircuitScrew Clamp 10 ... 70 mm²
Screw Clamp / PE Terminal 4pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 125 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorRed / Yellow
Handle TypeSelector handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts1 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO1
Number of Poles3P
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 6.3 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 125 A
(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 90 A
(500 V) 70 A
(690 V) 50 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 45 kW
(500 V) 45 kW
(690 V) 45 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 3.6 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kA
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 6 N·m
Wire Stripping Length20 mm
Technical UL/CSA
Wire Stripping Length20 mm
Tightening TorqueMain Circuit 6 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA022430R0410 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value125 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value90 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value2.5 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value45 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value45 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value1
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
