ABBManual Switches1SCA022401R7690 ABB Int. Boxed disconnector OTP125BA6U

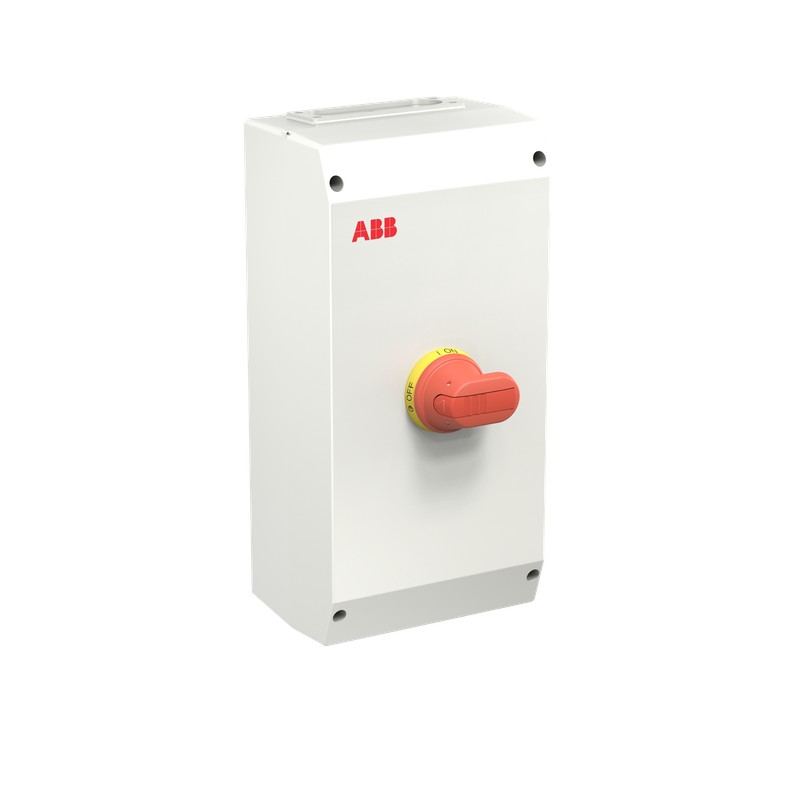

ABB 1SCA022401R7690 1SCA022401R7690 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022401R7690 ABB Int. Boxed disconnector OTP125BA6U

Reference: 1SCA022401R7690

Manufacturer: ABB

Description:

Int. Boxed disconnector OTP125BA6U
OTP125BA6U Enclosed Switch Disconnector

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 306,03 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP875dd48c-5695-40b9-9fa1-9f73c84d66a6 Finland
Simplified SCIP821af6f7-35f6-4517-b0fe-3033d8d28af1 Germany
cecb39e3-886e-4af2-a212-a0436de10a90 Greece
90bc2c80-cca5-4d04-9d0e-4d5c0d898970 Portugal
ce0aff7c-9e43-4274-aa40-194218efa543 Bulgaria
aa6b27e6-2c7c-4aa2-a9a7-a662dfcfc60f Sweden
605a5eaf-3ee5-4fe3-83d3-11927adc5df7 Denmark
9faf0b2c-4fc6-4740-95eb-475081bbeea9 Czech Republic
dabe5df7-e247-4b7c-853c-535582a9e362 Germany
2ed97428-8fb4-42bd-99fd-ac4e01a083e7 Croatia
80142dcf-52ff-401d-b000-19e8da760612 France
4b569348-b5e7-47e6-88e8-e8066b3b6858 Italy
044abab7-9a41-47c9-b571-2bc52fad9f97 Germany
98df2a65-3542-45f9-be6e-109d014b6899 Sweden
d5cca496-1acc-4595-a902-f2a71e8cecdb Germany
fca276e3-2031-4367-8cb8-2707e44d7fe0 France
b81db1f3-04e9-4c78-92b5-993a9a8b1e07 Estonia
a7d265be-a52a-4004-a001-0e159bfe41c4 Netherlands
a5057737-5715-48ff-b4df-c41194bbdfee Poland
7c629f3a-bb19-4196-ad91-b23ba499aba0 Hungary
8caece60-1d25-47cd-a3ac-0aa87af811bb Poland
4f7cee14-2163-4a0f-9633-daf88f4a9e1a Norway
723f5788-a8ff-471b-8b7c-2cd24b2c392f Belgium
368fb215-e179-43d4-b072-be9b59660620 Hungary
b91b02c8-09f6-46fe-afff-90f1a61ace25 Poland
2acb4960-cb4b-4859-a09f-059c8ffae99f Germany
36481a17-199c-483e-8083-9ab0153e201c Belgium
8445d599-b4e9-42b6-a69b-6a5ab70def51 Spain
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340002M0012
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)No new type
Country or Territory of OriginFinland
Dimensions
Product Net Width200 mm
Product Net Height400 mm
Product Net Depth / Length140 mm
Product Net Weight3 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width213 mm
Package Level 1 Depth / Length417 mm
Package Level 1 Height197 mm
Package Level 1 Gross Weight3.2 kg
Package Level 1 EAN6417019131610
Technical
Cable Cross-Section10 ... 70 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per SideBlank /Blank
ColorRAL7035
Connecting Capacity Main CircuitScrew Clamp 10 ... 70 mm²
Screw Clamp / PE Terminal 4pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 125 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorRed / Yellow
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts0 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO0
Number of Poles6P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of Neutral TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 6.3 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie)(500 V) 125 A
(380 ... 415 V) 125 A
(690 V) 125 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 125 A
(690 V) 125 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 90 A
(500 V) 70 A
(690 V) 50 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 45 kW
(500 V) 45 kW
(690 V) 45 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 3.6 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kA
Recommended Screw DriverMain Circuit Hexagon 4
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 6 N·m
Wire Stripping Length20 mm
Technical UL/CSA
Wire Stripping Length20 mm
Recommended Screw DriverMain Circuit Hexagon 4
Tightening TorqueMain Circuit 6 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA022401R7690 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value125 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value90 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value125 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value2.5 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value45 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value45 kW
Feature nameNumber of poles (EF001391)
Feature value6
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
