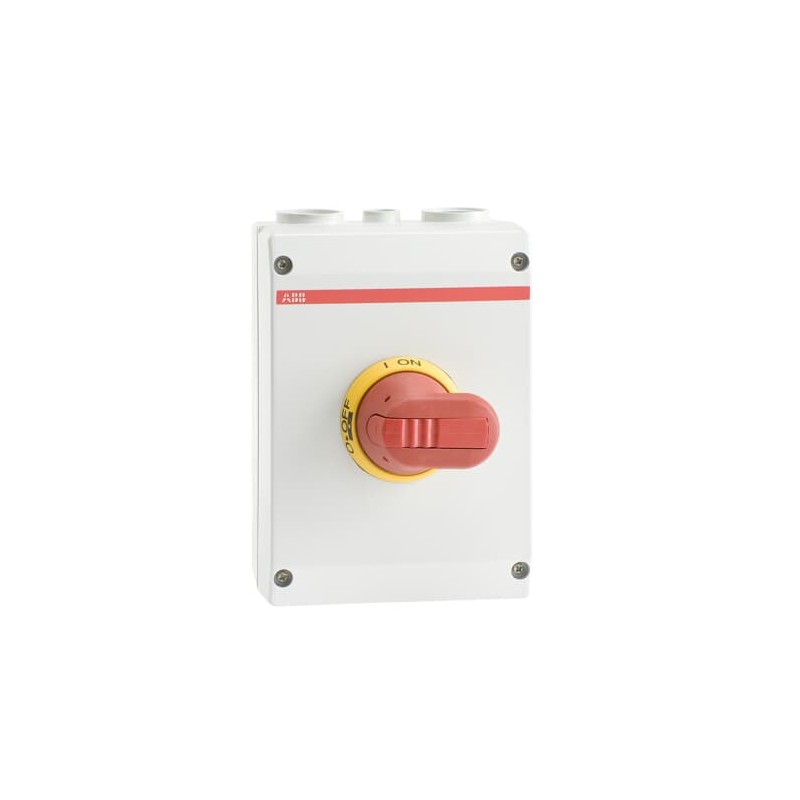

Images are for illustrative purposes only. Please refer to data sheet for details.

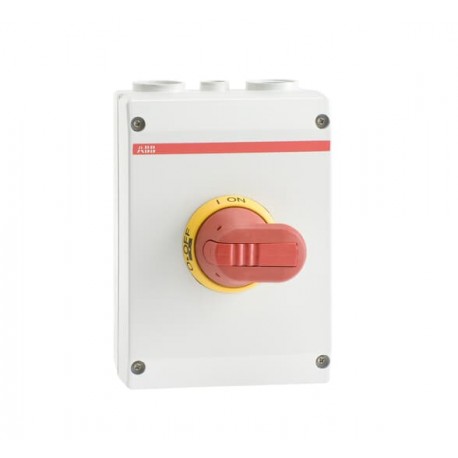

1SCA022401R7260 ABB Int. Boxed disconnector OTP63BA6M

Reference: 1SCA022401R7260

Manufacturer: ABB

Description:

Int. Boxed disconnector OTP63BA6M
OTP63BA6M Enclosed Switch Disconnector

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 214,27 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPf04ef0e6-bb5f-429d-8583-9607391dc9cf Finland
Simplified SCIPa947f3f9-9a36-4376-91f2-22335b579a4a Germany
528103f8-6a20-46a4-b3a7-b1ce131b7c9c Belgium
120602d4-73e6-47ca-8319-d37c84ebfd16 Croatia
0b1c42b5-d44a-4753-9a60-3faca4d61972 Germany
ffa423d5-f2e6-48d4-bff4-3444e24fe5fe Germany
5d236008-d76c-42aa-8094-08e56682c3e3 Denmark
54cb5167-f77c-427e-a384-8b80b38ce065 Czech Republic
2131772e-25f9-4299-bd8e-1983b2905991 Netherlands
a5ddbd49-dbeb-4310-87bd-bf824a91ab21 Portugal
503b7994-f15d-4870-b665-19876b0a75bc Bulgaria
d76d4318-0175-4dd8-af2b-f14cf80ce920 Sweden
40731f13-ab7c-4b3b-bd07-a7f5bea9351d France
734488ec-3b90-4c60-84d6-aa9a10f83bc6 Sweden
33b90682-3384-4873-bc6f-bb7b88f399d3 France
40102921-5fbb-4c10-8a7c-242eddba0e64 Germany
9eef29e3-c47e-4feb-8602-bc6f5a4354c9 Germany
0740ca9b-b914-4d58-966d-00d0b4148add Italy
e7396081-3fdf-4e8b-a1ae-ca299a46b63d Greece
82670761-80d9-46e2-bce6-6faaf1ad337a Poland
54a705eb-f5d9-457f-bb3b-e44d68388848 Spain
a3516f1e-4a15-4adc-8422-c55bc733ebf8 Poland
223d511b-6859-445b-9cf1-5e71c7263747 Norway
c5ef2ec4-7314-4941-bde2-c0de33164827 Estonia
24041783-f95e-4f19-b631-ed852309e535 Hungary
2c1de019-40ef-40ec-9114-c73e3872b22a Belgium
3a1482d3-437c-4d18-9ff1-2f7e9f713ae7 Poland
fc5810d1-efe6-4820-9bd8-0ac431fd22bf Hungary
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340002M0012
Mechanical DrawingsOTPK201490PM32.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTP63GBA6B
Country or Territory of OriginFinland
Dimensions
Product Net Width145 mm
Product Net Height200 mm
Product Net Depth / Length90 mm
Product Net Weight1.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width162 mm
Package Level 1 Depth / Length222 mm
Package Level 1 Height148 mm
Package Level 1 Gross Weight1.6 kg
Package Level 1 EAN6417019131573
Technical
Cable Cross-Section1.5 ... 35 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xM32+M16 / 2xM32+M16
ColorRAL7035
Connecting Capacity Main CircuitScrew Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 80 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorRed / Yellow
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts0 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO0
Number of Poles6P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of Neutral TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 4.5 W
Rated Impulse Withstand Voltage (Uimp)1.5 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie)(500 V) 80 A
(380 ... 415 V) 80 A
(690 V) 80 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 63 A
(500 V) 45 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 37 kW
(500 V) 37 kW
(690 V) 18.5 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 1.4 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 1 kA
Recommended Screw DriverMain Circuit Pozidriv 2
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 2 N·m
Wire Stripping Length13 mm
Technical UL/CSA
Wire Stripping Length13 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening TorqueMain Circuit 2 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA022401R7260 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value80 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value63 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value80 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value1 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value37 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value37 kW
Feature nameNumber of poles (EF001391)
Feature value6
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
