ABBManual Switches1SCA022401R7180 ABB Int. Boxed disconnector OTP45BA6M

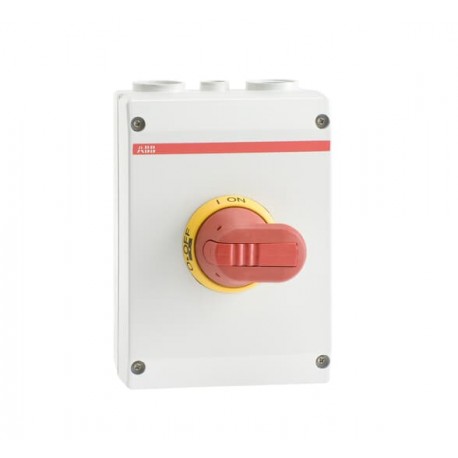

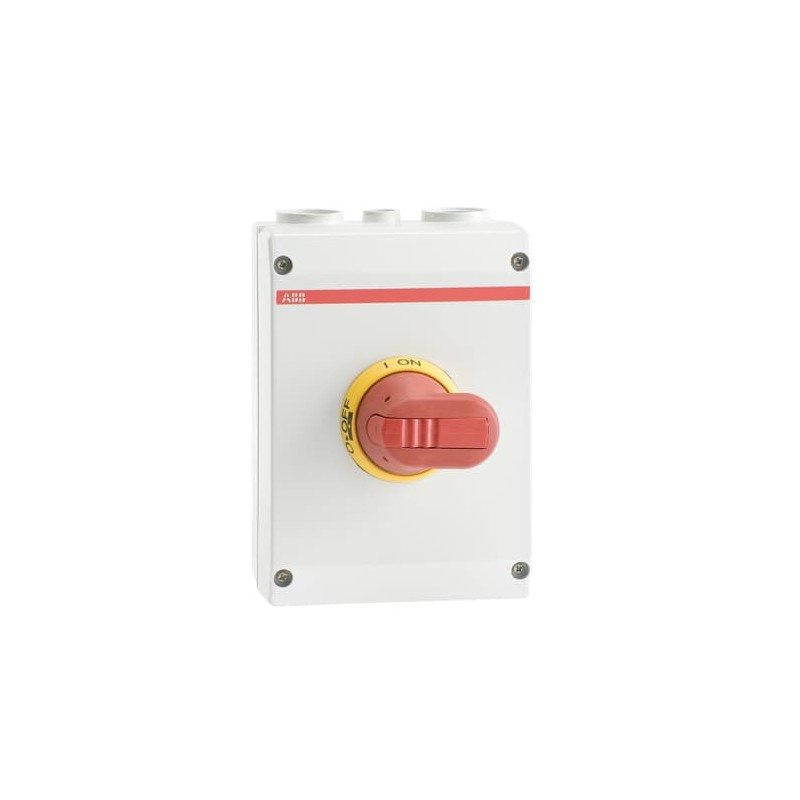

ABB 1SCA022401R7180 1SCA022401R7180 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022401R7180 ABB Int. Boxed disconnector OTP45BA6M

Reference: 1SCA022401R7180

Manufacturer: ABB

Description:

Int. Boxed disconnector OTP45BA6M
OTP45BA6M Enclosed Switch Disconnector

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 193,06 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP0d14433d-eae5-4666-b60b-f0dd1f073364 Finland
Simplified SCIPe8dc22b6-da2a-4697-a4c8-b9753d6157c7 Germany
f09bd39c-4931-4294-b442-da15c5f8a10a Estonia
1be198a5-1519-4262-8b71-42d9fca60320 Germany
8ceb11cb-ffe0-48cd-924e-5560c0119a8d Denmark
daca818b-84b5-40ff-bca1-1b9245dac113 Germany
477fae58-dd6e-41f4-bc75-e3d7d734aecd Croatia
8021d3f1-7c87-47e8-ba07-583780cfd50b Czech Republic
90529444-b9b9-4087-bcb6-aa1ad82f9015 Belgium
5c79e63d-1e73-4168-b9c1-acc82e222262 Hungary
6372ed3c-e122-4423-b9d6-eb51ed94d1d3 Bulgaria
7de7d89e-ba24-406d-bc34-ae8ef3481582 Sweden
ce415825-d4aa-43c3-aafc-7cc07be6e4a0 Germany
0642bb61-84e3-4e0a-8e88-c85a08d7b8a0 Sweden
dd26dc6a-f612-4dc7-abcb-9afa9766f744 France
48a7ad36-754e-408e-9e42-8060e53bf54c Poland
b0ee1936-b0a5-4535-a8f2-dae5d5b8f0ab Poland
7ee5fd72-60ec-4e47-92ab-4bb5ac04b0c3 Belgium
eda44c4a-3c10-481e-bad5-6e70b0abfa86 Italy
c93b4806-6628-4d3f-86da-5db4c52b8158 Greece
1882f794-b7e8-46ad-a98f-f286c0962826 Germany
fb657374-e373-4750-a5ab-e139cbd693a2 France
40992d6b-482f-4785-94c0-da8fac3d8529 Hungary
cf772aa0-6c2d-4afa-b70b-01f30df115da Spain
5b14f4bf-e32b-4642-a612-b47e341345f6 Netherlands
0b5652ff-03a3-470d-b8ac-7cfe3a3fd2e1 Portugal
cff7f1a2-0c03-4cb3-a711-4c6263ed27ba Norway
eb3f06ff-f152-402e-b436-0f53fc86643b Poland
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340002M0012
Mechanical DrawingsOTPK201490PM32.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTP63GBA6B
Country or Territory of OriginFinland
Dimensions
Product Net Width145 mm
Product Net Height200 mm
Product Net Depth / Length90 mm
Product Net Weight1.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width162 mm
Package Level 1 Depth / Length222 mm
Package Level 1 Height148 mm
Package Level 1 Gross Weight1.6 kg
Package Level 1 EAN6417019131566
Technical
Cable Cross-Section1.5 ... 35 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xM32+M16 / 2xM32+M16
ColorRAL7035
Connecting Capacity Main CircuitScrew Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 63 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorRed / Yellow
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts0 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO0
Number of Poles6P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of Neutral TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 1.5 W
Rated Impulse Withstand Voltage (Uimp)1 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie)(500 V) 63 A
(380 ... 415 V) 63 A
(690 V) 63 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 45 A
(690 V) 45 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 45 A
(500 V) 45 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 22 kW
(500 V) 22 kW
(690 V) 15 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 1.4 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 1 kA
Recommended Screw DriverMain Circuit Pozidriv 2
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 2 N·m
Wire Stripping Length13 mm
Technical UL/CSA
Wire Stripping Length13 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening TorqueMain Circuit 2 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA022401R7180 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value63 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value45 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value63 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value1 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value22 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value22 kW
Feature nameNumber of poles (EF001391)
Feature value6
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
