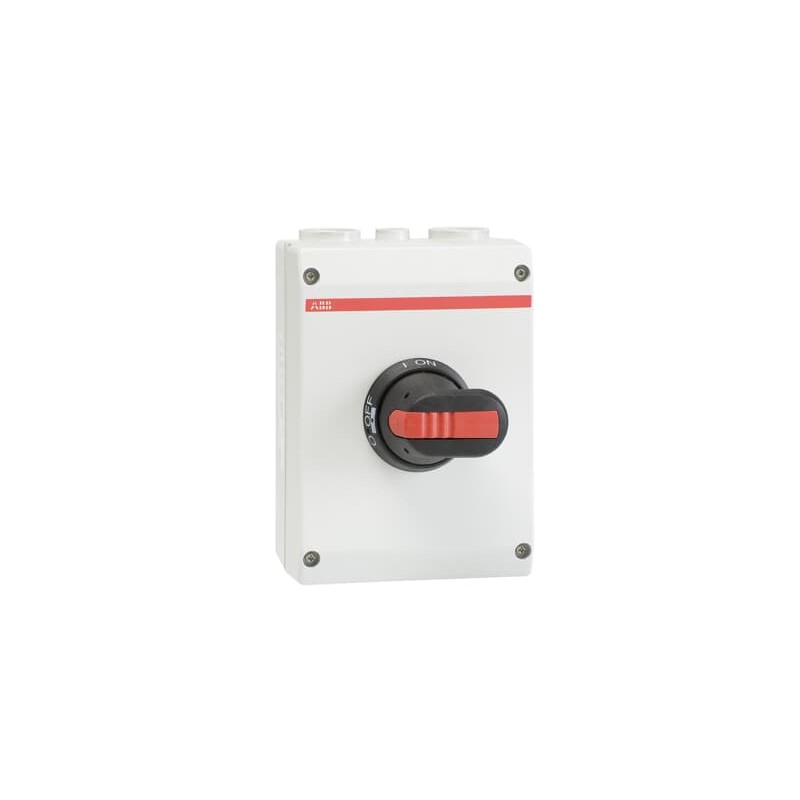

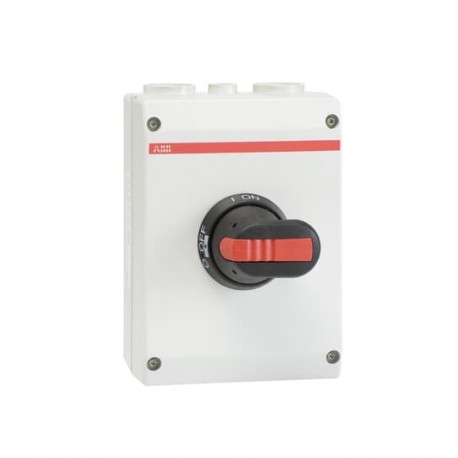

1SCA022401R6110 ABB Int. Boxed disconnector OTP45B6M

Reference: 1SCA022401R6110

Manufacturer: ABB

Description:

Int. Boxed disconnector OTP45B6M
OTP45B6M Enclosed Switch Disconnector

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 193,06 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPff99f971-0f2b-4047-aba8-8eddcc9f3ac7 Finland
Simplified SCIP909dbfc2-2b5b-40cc-b253-4651329ada2b Germany
e9fd1295-aceb-4b0d-8eb8-be80086211e7 France
fc734850-979f-4cc5-8d1f-be478a8559c4 Poland
2c8064b5-5915-4ccb-b089-8e058b9eada5 Norway
1c853d76-b0dd-4cf4-92c0-cc1d838738f8 Belgium
21b9ba9d-6c60-4039-97f5-a8bd77756657 Italy
0267dc68-2d05-45c2-9d6c-1182f47aacf6 Germany
78d1b8d2-33d8-4bdf-989a-08aa1b007b6c Denmark
759605a3-660b-4478-b9f2-6383b79cac54 Germany
5cb3c394-6b22-4fbf-a8cc-df480d57b1a7 Croatia
5c3517b7-609b-43e9-94d8-635231341eba Czech Republic
4ba77c2e-469b-4b4e-b74f-bcf53b1f85a4 Poland
67e3dd8f-efbf-4853-a41e-ec71c1eaf32d Netherlands
179c3785-e320-4437-b654-c260770c013e Hungary
2e2e617f-8a5a-4c8d-8e7b-a65642c470b3 Estonia
7031a001-02e1-40cc-ba33-e28d99021832 Greece
2b619cca-fcb4-4ace-9821-df8473a19743 Portugal
e6a2c32b-daa4-4c46-80a1-ebeeb3858ecd Bulgaria
b7a0ec59-b9dc-41a4-9003-921e86820baf Sweden
def69059-c1fb-4890-8845-7d64235b6b36 Sweden
b70ad341-f1d5-4717-8290-c55ff80d98e4 Germany
b6b9ac58-5717-4480-8171-3ab60b62cf16 Germany
e3a96eb1-3bed-457a-850f-ba52ed1a8065 France
dbfa88af-e504-4778-b8c7-e36a2baff5bf Hungary
eaa7a6a4-d47f-4e39-81e6-932884e510c5 Spain
e87a5b0c-9791-4997-9f32-ce27004ec22c Belgium
cc542116-5206-4e41-ae78-45054a7a03c0 Poland
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340002M0012
Mechanical DrawingsOTPK201490PM32.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTP63GB6B
Country or Territory of OriginFinland
Dimensions
Product Net Width145 mm
Product Net Height200 mm
Product Net Depth / Length90 mm
Product Net Weight1.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width162 mm
Package Level 1 Depth / Length222 mm
Package Level 1 Height148 mm
Package Level 1 Gross Weight1.6 kg
Package Level 1 EAN6417019131467
Technical
Cable Cross-Section1.5 ... 35 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xM32+M16 / 2xM32+M16
ColorRAL7035
Connecting Capacity Main CircuitScrew Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 63 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorBlack
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts0 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO0
Number of Poles6P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of Neutral TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 1.5 W
Rated Impulse Withstand Voltage (Uimp)1 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 45 A
(690 V) 45 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 45 A
(500 V) 45 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 22 kW
(500 V) 22 kW
(690 V) 15 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 1.4 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 1 kA
Recommended Screw DriverMain Circuit Pozidriv 2
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 2 N·m
Wire Stripping Length13 mm
Technical UL/CSA
Wire Stripping Length13 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening TorqueMain Circuit 2 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA022401R6110 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value63 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value45 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value63 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value1 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value22 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value22 kW
Feature nameNumber of poles (EF001391)
Feature value6
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
