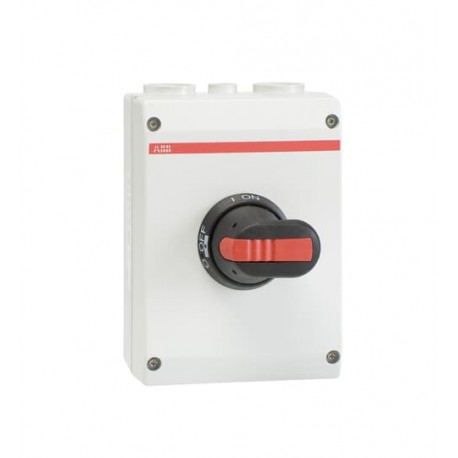

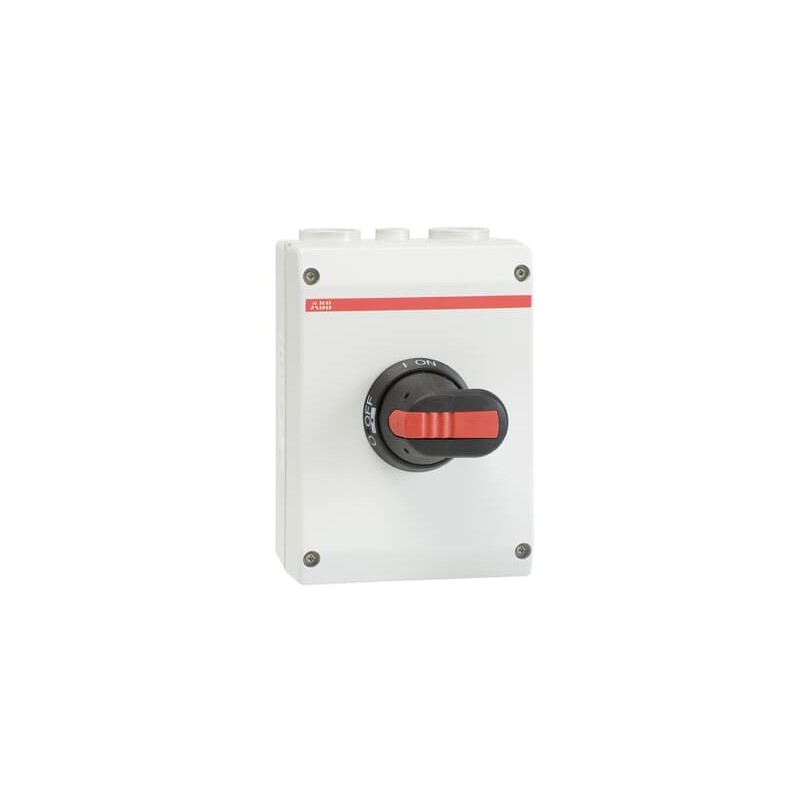

1SCA022401R1900 ABB Int. Boxed disconnector OTP36T6M
1SCA022401R1900
ABB
Int. Boxed disconnector OTP36T6M
OTP36T6M Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f364d620-c718-49f9-8b82-36f90caa4222 Finland |
| Simplified SCIP | 909e0a5e-5b54-493a-8d48-3eb3b8100e29 Germany |
| 13c7df6f-73ba-409e-b3ec-89a11590f4e1 Poland | |
| 3409ab29-527c-4a07-966f-1c248ae7937a Italy | |
| cc2042d3-4376-486a-bee0-2b9b814dd579 Germany | |
| 1a71a30b-b916-40a2-aa9e-5e88f82e461d Netherlands | |
| e845ee08-88bb-4436-99c0-66e6a87e7244 Poland | |
| c0d9a0e3-bca7-4c81-b2ad-f05d992a7da4 France | |
| 6fcccc41-577f-4a5d-974f-81242a3f5f9d Sweden | |
| 98ef9c56-27fe-4d47-bf14-da9aeaf9b521 Sweden | |
| 6f591b7a-d4a4-4f00-b766-9befc6903a19 Greece | |
| 6444fef8-8229-4c90-bf78-0b29d1ef5949 Portugal | |
| fe6e2cb5-1112-4f52-ab5c-7863c158c1b8 Bulgaria | |
| def34377-676d-492a-988d-fbfff8d7cb1e Poland | |
| 8f2f2139-e507-4577-a698-a591a8f02fdc Estonia | |
| 6cd15de8-1fcf-4b46-b4a4-df2f40ab559c Hungary | |
| 998d0ece-97de-434f-a142-b4508f7cc32b Belgium | |
| a278629d-6fc4-4da8-8ef7-2720841b240b France | |
| 5691ffdc-6755-4813-bcd2-6026cd3bd3a9 Germany | |
| d90f8c93-2d59-4296-9fc6-dbca44bf29f6 Belgium | |
| cb6f42be-027e-42c0-816f-0e296e1ad71b Germany | |
| 21889a16-6b7f-435f-bd24-f3b142d221f8 Czech Republic | |
| 3a6588db-4a6b-4e64-a351-8ddd97bfbb9b Croatia | |
| a4c5eeb7-386d-4230-8d53-1fefad6399d6 Germany | |
| 6a4f8890-e833-4738-a86c-04b31cdccecd Denmark | |
| 45df5da1-e61b-4e25-a83a-eb2f4fdebd7d Norway | |
| 79ff202e-3a94-48fc-a9ce-07a92e808b5f Spain | |
| 415800df-09ba-4b86-9b0c-c99f03b7afa8 Hungary | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340002M0012 |
| Mechanical Drawings | OTPK201490PM32.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Last Ordering Date | 2026-08-31 All Countries |
| Replacement Product ID (NEW) | OTP40GT6M |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 145 mm |
| Product Net Height | 200 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 1.2 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Depth / Length | 222 mm |
| Package Level 1 Height | 148 mm |
| Package Level 1 Gross Weight | 1.3 kg |
| Package Level 1 EAN | 6417019131047 |
| Technical | |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Top and/or Bottom |
| Cable Outlets Per Side | 2xM32+M16 / 2xM32+M16 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm² |
| Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 80 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 6P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 4.5 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 45 A |
| (500 V) 45 A | |
| (690 V) 20 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 22 kW |
| (500 V) 22 kW | |
| (690 V) 15 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 2.1 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | 13 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 13 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 2 N·m |
| Certificates and Declarations | |
| BV Certificate | 1SCC340018D0204 |
| Declaration of Conformity - CE | 1SCC340003D2704 |
| DNV GL Certificate | 1SCC340045D0203 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642285 |
| E-Number (Norway) | 1428001 |
| E-Number (Sweden) | 3140174 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 750 V |
| Rated operating voltage (EF001435) | 750 V |
| Rated permanent current Iu (EF001389) | 80 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 45 A |
| Rated short-time withstand current lcw (EF007050) | 1.5 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 22 kW |
| Switching power at 400 V (EF009166) | 22 kW |
| Number of poles (EF001391) | 6 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
