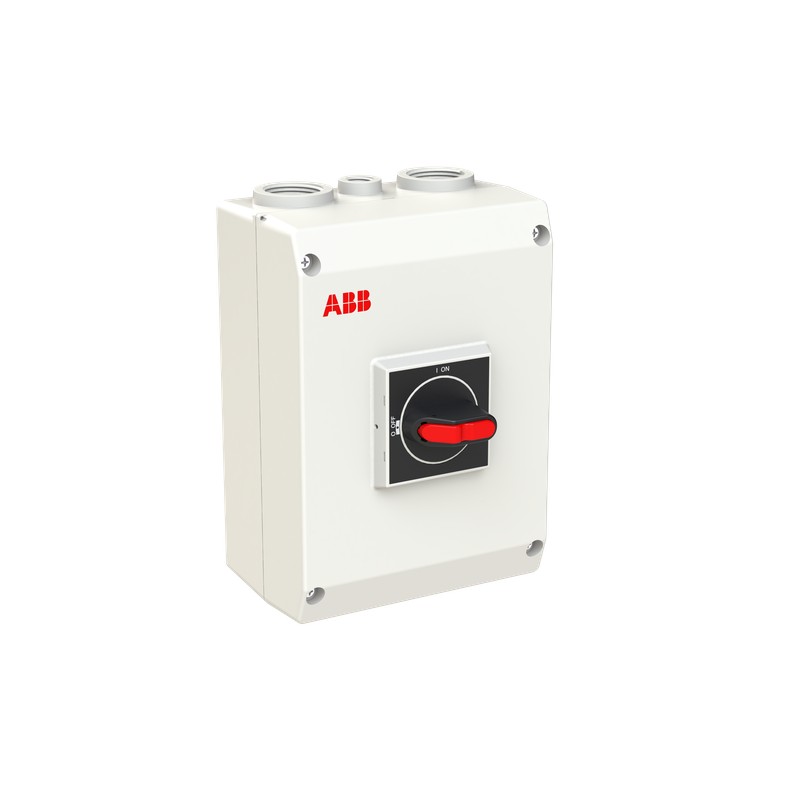

1SCA022401R0170 ABB Int. Boxed disconnector OTP36T3M
1SCA022401R0170
ABB
Int. Boxed disconnector OTP36T3M
OTP36T3M Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 649e1352-462f-498e-9f12-33ca03c2cc8d Finland |
| Simplified SCIP | 81748dde-8c64-4b13-a657-7e27c2f92505 Germany |
| c295175f-bdb6-4a44-904b-3760508cc742 Poland | |
| 57f937ba-817e-43e5-aa83-e924bef14200 Italy | |
| cbdb00f5-8247-48e2-aa69-a1eefbdabeec Germany | |
| 5e84494b-8955-442a-a5f8-938dae9c3aa0 France | |
| 0d76b919-3f1d-438d-91e6-78a8299cda5f Germany | |
| f3bd5115-0236-4ba3-a768-cda013d1b8d0 Netherlands | |
| a8ce839c-d1ef-4ab4-9883-5ce30b163085 Poland | |
| 4b621b1a-2d42-4684-a019-761f35791f8a Greece | |
| 459d63cb-5101-4478-89bb-5513757f2bda Poland | |
| 8637ffce-3d10-4899-b154-b023bd219a18 Portugal | |
| d8dc8267-d8e9-4666-b7b6-529b395217f8 Bulgaria | |
| 73a06e3e-f88e-428e-b4c5-5d5e7cb4ec9a Estonia | |
| 72dae5f9-f7f8-4198-b3de-d205d5c35601 Sweden | |
| f316c984-2157-413c-a21c-3e319ee5c076 Hungary | |
| 7904f16e-1d30-4e5e-9e34-32b90ff99698 France | |
| 38145c30-69e6-48be-8c7b-edf30e0471ff Belgium | |
| 2dacf266-2b59-4986-8692-6e040c7f2f1d Sweden | |
| 294c9647-7a7c-4042-8604-363be4012fe1 Norway | |
| ac758ce4-1da1-4e70-be1e-0fe4a7ea8f7a Germany | |
| 232946b6-0f54-4c11-8fde-5cb6dd1b9891 Czech Republic | |
| 61b9e1e2-51a9-49c9-a717-29729b251783 Croatia | |
| 3a14a22b-ee71-4fda-9576-708e7a004246 Germany | |
| 922734a9-cab2-408a-a3c6-c249dc0e42d9 Denmark | |
| 0447708d-e42e-4e09-8441-7ea5c5f7f849 Belgium | |
| c295e0ca-59d8-473e-8b77-da1c7aad39d7 Hungary | |
| 43a20a45-a27c-4140-b427-bb966b172548 Spain | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340002M0012 |
| Mechanical Drawings | OTPK201490SM32.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Last Ordering Date | 2026-08-31 All Countries |
| Replacement Product ID (NEW) | OTP63GT3M |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 145 mm |
| Product Net Height | 200 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 0.9 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Depth / Length | 222 mm |
| Package Level 1 Height | 148 mm |
| Package Level 1 Gross Weight | 1 kg |
| Package Level 1 EAN | 6417019130866 |
| Technical | |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM32+M16 / 2xM32+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm² |
| Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 80 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Selector handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 4.5 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 45 A |
| (500 V) 45 A | |
| (690 V) 20 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 22 kW |
| (500 V) 22 kW | |
| (690 V) 15 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 2.1 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | 13 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 13 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 2 N·m |
| Certificates and Declarations | |
| BV Certificate | 1SCC340018D0204 |
| Declaration of Conformity - CE | 1SCC340003D2704 |
| DNV GL Certificate | 1SCC340045D0203 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642255 |
| E-Number (Norway) | 1428000 |
| E-Number (Sweden) | 3140154 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 750 V |
| Rated operating voltage (EF001435) | 750 V |
| Rated permanent current Iu (EF001389) | 80 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 45 A |
| Rated short-time withstand current lcw (EF007050) | 1.5 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 22 kW |
| Switching power at 400 V (EF009166) | 22 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
