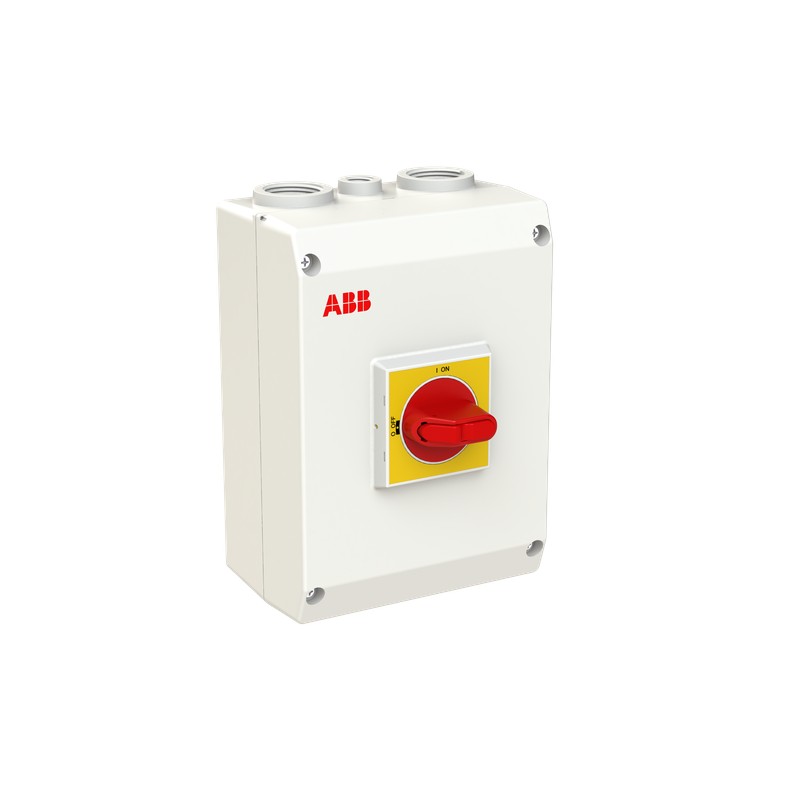

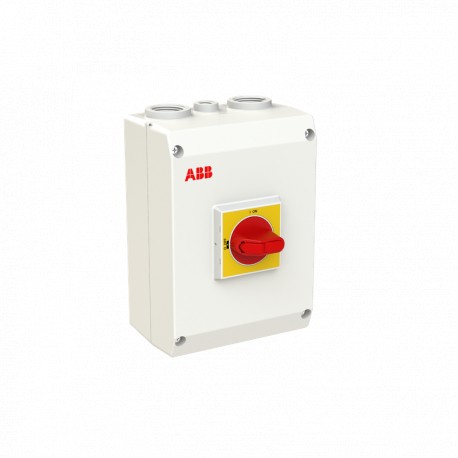

1SCA022399R6670 ABB Int. Boxed disconnector OTP25A3M

Reference: 1SCA022399R6670

Manufacturer: ABB

Description:

Int. Boxed disconnector OTP25A3M
OTP25A3M Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 107,48 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPa78e9987-968a-4955-bca3-03ab470c4063 Finland
Simplified SCIP64136a4f-478e-40fb-960f-8269f2b3a9d0 Germany
4ac3a2d1-90a0-4b56-98fb-410d294d1adc Poland
fb0a1573-7afe-4f7d-ace7-30bcffb34d0a Italy
d03bda24-2bb1-4fd2-9c29-f33be7793e77 France
3b6ba569-d8bb-454b-a870-bc6cfd4c23c5 Germany
6ad45401-b0f7-44f4-982f-30d91666e8bd Netherlands
66e538e0-d340-4e3c-bd92-cfc0adfbeec0 Poland
00886c9a-aeb9-48c4-8aeb-5d7e66126fbe Portugal
49f084dc-c1b2-4556-82ca-2e739180f377 Sweden
efedeef6-5b1e-4390-bfd8-457374b298e2 Hungary
b98c5fc3-4de0-472f-ab8d-5fa0ef26f48f Bulgaria
d1650c1f-b9e7-41b7-8d34-ba9d77cb3064 France
c5c40881-11c6-460b-9883-198c014d2824 Poland
baf190c0-88ac-4db6-a513-d61dc51f0c5a Belgium
7677ba6f-b10b-4cd1-ac37-7b2358170479 Sweden
729e4f46-4c96-45d7-98d2-71ff15f52f88 Estonia
3fe403d1-d23b-4206-8f3a-81adb72632a7 Germany
36594347-669b-4a80-942b-71e0e6900de5 Norway
83d668fe-edf3-4e48-b5fb-d621fd8e4312 Denmark
28324b10-84f1-42c4-849f-964c5e2c0c01 Greece
f794e7d5-4cc0-491e-a1a7-94a8fe2c8685 Germany
0dcf8080-e537-4d6f-bbce-0cd0c9599c47 Spain
393a6647-a789-41f5-bd32-6dcf6c538a4d Belgium
285567f9-3b7a-4cf6-8677-4126c6f4e7f6 Czech Republic
ffde2ab1-c47f-4636-acc5-14c3a6be080c Germany
f3484dca-5b2b-41c3-9053-da01b335bc91 Croatia
47824549-8648-41b9-8fd4-2122c720aa35 Hungary
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340002M0012
Mechanical DrawingsOTPK201490SM32.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTP40GA3M
Country or Territory of OriginFinland
Dimensions
Product Net Width145 mm
Product Net Height200 mm
Product Net Depth / Length90 mm
Product Net Weight0.9 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width162 mm
Package Level 1 Depth / Length222 mm
Package Level 1 Height148 mm
Package Level 1 Gross Weight1 kg
Package Level 1 EAN6417019130231
Technical
Cable Cross-Section0.75 ... 10 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xM32+M16 / 2xM32+M16
ColorRAL7035
Connecting Capacity Main CircuitScrew Clamp 0.75 ... 10 mm²
Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 63 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorRed / Yellow
Handle TypeSelector handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts1 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO1
Number of Poles3P
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 2.8 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 45 A
(500 V) 45 A
(690 V) 45 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 30 A
(500 V) 30 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 15 kW
(500 V) 15 kW
(690 V) 15 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 1.4 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 1 kA
Recommended Screw DriverMain Circuit Pozidriv 2
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 2 N·m
Wire Stripping Length13 mm
Technical UL/CSA
Wire Stripping Length13 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening TorqueMain Circuit 2 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3642264
E-Number (Norway)1429402

ETIM for 1SCA022399R6670 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value63 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value30 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value1 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value15 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value15 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value1
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
