ABBManual Switches1SCA022371R3040 ABB Int. Boxed disconnector OTP75T6B

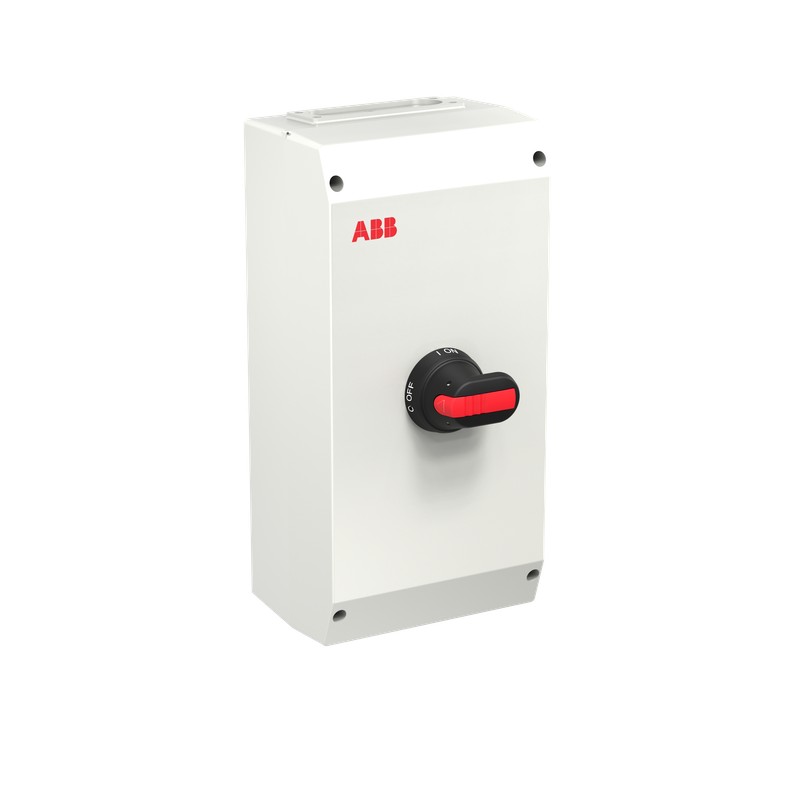

ABB 1SCA022371R3040 1SCA022371R3040 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022371R3040 ABB Int. Boxed disconnector OTP75T6B

Reference: 1SCA022371R3040

Manufacturer: ABB

Description:

Int. Boxed disconnector OTP75T6B
OTP75T6B Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 311,11 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP26e0f388-7d0c-477b-ae4f-b67d525c97da Finland
Simplified SCIP8aaad9c3-41c6-485d-9839-aed15cd993a4 Germany
d1286236-1562-46c7-b95d-5df8c3b2e5f3 France
2d7ca703-1793-428c-8ab1-040fff3c32cc Sweden
8c84e6fb-8a39-4ad7-95a0-b313a03a9bf4 Poland
a3e9bf50-db69-4812-9698-b018254f562f Portugal
aad09f28-e582-42f2-96d4-9d75659787a5 Greece
2d959ce2-e8b9-4514-af46-2ec5366eaeb9 Norway
59745345-4e5b-4e6f-afb4-cdc74cbdd74a Netherlands
6242ec24-635f-4d8d-8ea9-f17e37beeb71 Denmark
7818cf8e-d163-4632-8d8c-55782e652baf Czech Republic
c7e2b70f-33ff-48fc-ba65-4f44b499180a Poland
db4520db-7ae1-476d-a58f-3b05f16c8d07 Spain
a8d18b26-43c1-424f-a0b1-bf5cedf34630 Croatia
de2553b0-753e-499d-8ef7-a86ffd8982ad Germany
44e0fd75-f78f-4553-bfaf-a6f802a6a8fd Belgium
528045f6-fa77-4631-8dfc-33efeb5bab37 Sweden
6c897833-30b0-45f5-ae8b-00842e237d0c France
094dcfab-7b15-4011-b6d8-62ed7bdbe54b Germany
6a9abd87-c4b6-4129-831a-13d9f23a3bdc Germany
6f84885c-fb0f-4616-8525-bea3af6a216f Hungary
d61ea9a1-1372-410c-87d9-4b4ca1fecac3 Germany
43262eac-6588-4164-ac0f-80cf69615ad5 Hungary
b94f4778-2e38-42d1-b360-d317af5bb611 Estonia
c4fc0618-6a6e-488a-b68d-ee9531644e39 Italy
e70210b3-e185-4a03-b87f-2f33757195a0 Poland
b8553fb9-4dae-4415-b18b-c06d417554a7 Belgium
4e528900-12f3-4f37-a0ca-1640d3696b74 Bulgaria
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340002M0012
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTP80GT6B
Country or Territory of OriginFinland
Dimensions
Product Net Width200 mm
Product Net Height400 mm
Product Net Depth / Length140 mm
Product Net Weight3.2 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width213 mm
Package Level 1 Depth / Length417 mm
Package Level 1 Height197 mm
Package Level 1 Gross Weight3.3 kg
Package Level 1 EAN6417019119502
Technical
Cable Cross-Section10 ... 70 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per SideI-flange / I-flange
ColorRAL7035
Connecting Capacity Main CircuitScrew Clamp 10 ... 70 mm²
Screw Clamp / PE Terminal 4pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 115 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorBlack
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts1 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO1
Number of Poles6P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of Neutral TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 100 A
(500 V) 100 A
(690 V) 100 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 80 A
(500 V) 60 A
(690 V) 40 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 37 kW
(500 V) 37 kW
(690 V) 37 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 3.6 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kA
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 6 N·m
Wire Stripping Length20 mm
Technical UL/CSA
Wire Stripping Length20 mm
Tightening TorqueMain Circuit 6 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3642286
E-Number (Norway)1428225
E-Number (Sweden)3140176

ETIM for 1SCA022371R3040 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value115 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value80 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value2.5 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value37 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value37 kW
Feature nameNumber of poles (EF001391)
Feature value6
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value1
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
