ABBManual Switches1SCA022340R3790 ABB Int. Boxed disconnector OT1000BLCC3TZ

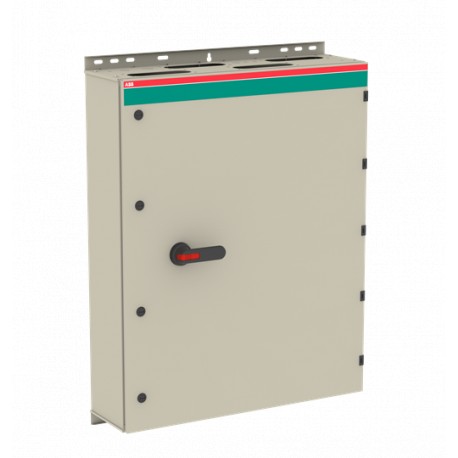

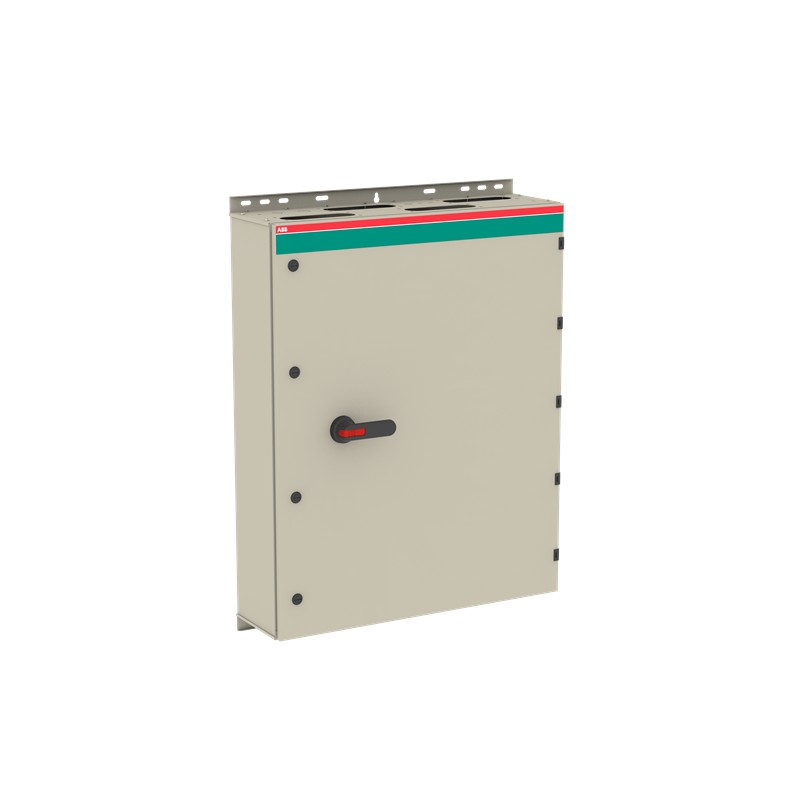

ABB 1SCA022340R3790 1SCA022340R3790 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022340R3790 ABB Int. Boxed disconnector OT1000BLCC3TZ

Reference: 1SCA022340R3790

Manufacturer: ABB

Description:

Int. Boxed disconnector OT1000BLCC3TZ
OT1000BLCC3TZ Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 6.928,61 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP4b32a7f1-c392-4a9b-8396-4293c35278d8 Finland
Simplified SCIPc003c883-45af-4f0d-88af-e76da7f3ce0e Germany
64862249-f3e9-4fac-b639-d0d579df2138 Belgium
cc8ff670-b6b3-4240-9e51-35fcba5cf219 Denmark
dad3e157-6036-47d5-b865-295636f4218b Poland
e2ede05c-143f-4760-b1fd-0b1dd9f6df82 Netherlands
f15510b5-87cc-4c02-ac34-7da0f52f3f4a Estonia
0dcdd8c4-ed6c-482a-a289-cb4485b588de Greece
adbce3df-cc08-4be9-9f13-b2f783404c3b Portugal
18537043-bb58-4440-9e3d-c3b146fb6abd Poland
59d4b9c4-3db4-4386-8faf-92097f972322 Spain
2230af04-1fb2-43b9-bce3-6a4090dba780 Croatia
276a2122-8197-4a12-9ade-f0f0b27dcf91 Germany
9c00e859-5725-4214-8ddf-4995d128d96f Norway
7b03508f-e8a9-4f3a-8821-cba83a17bc58 Germany
1d76932d-86a0-4fad-9f7d-33fe1329f7c3 Hungary
2b939dc5-5d74-4691-9963-bae1385a3160 Hungary
95315135-672a-41c3-a128-89cfb439a79b Sweden
3a48ee31-4aa5-44d1-b8d7-a25760fc34d3 France
72be13e1-79bd-4f82-951f-1cfce382ac3c Germany
4d74c687-3a1b-494d-a611-654c35b4689b Bulgaria
1162f552-8e4e-4f74-a948-85d842cc1409 Germany
524b3ffd-3b52-4d67-8f3f-baa4701a77e7 Czech Republic
5b8ac922-3a45-4a0c-acd5-27b059f76efa France
a1c91f51-5c5f-4e0a-82af-17ab8ebe2d5c Italy
b43506a4-330b-4d02-8a23-deedf8a9e6e6 Poland
c581cc12-0668-40e2-baae-48d968214ccb Belgium
e1b10f0b-ac75-4bb5-af4c-7542e38b74a9 Sweden
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340016M0005
Mechanical DrawingsOTKM128033P6C.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width800 mm
Product Net Height1200 mm
Product Net Depth / Length330 mm
Product Net Weight62 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width815 mm
Package Level 1 Depth / Length1310 mm
Package Level 1 Height425 mm
Package Level 1 Gross Weight67 kg
Package Level 1 EAN6417019115382
Technical
Cable Entry PositionTop/Bottom
Cable Outlets Per Side6xC-flange / 6xC-flange, Knock-outs: 3x10mm, 12.5mm, 2x20.5mm, 2x25.5mm, 2x32.5mm
Connecting Capacity Main CircuitHole Diameter 12 mm
Screw Clamp / PE Terminal 10pc,25 ... 120 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 1000 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialSteel sheet
Handle ColorBlack
Handle TypePistol handle
Impact Resistance RatingHousing IK09
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts2 NO, 1 NC
Neutral TypeNo Neutral Terminal
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO2
Number of Poles3P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 19 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 1000 A
(500 V) 1000 A
(690 V) 1000 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 1000 A
(500 V) 1000 A
(690 V) 1000 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 560 kW
(500 V) 710 kW
(690 V) 1000 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 110 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kA
Recommended Screw DriverMain Circuit M12
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 75 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M12
Tightening TorqueMain Circuit 75 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340042D2703
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
E-Number (Finland)3642733
E-Number (Norway)1429118
E-Number (Sweden)3140618

ETIM for 1SCA022340R3790 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value1000 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value1000 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value50 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value560 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value560 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
