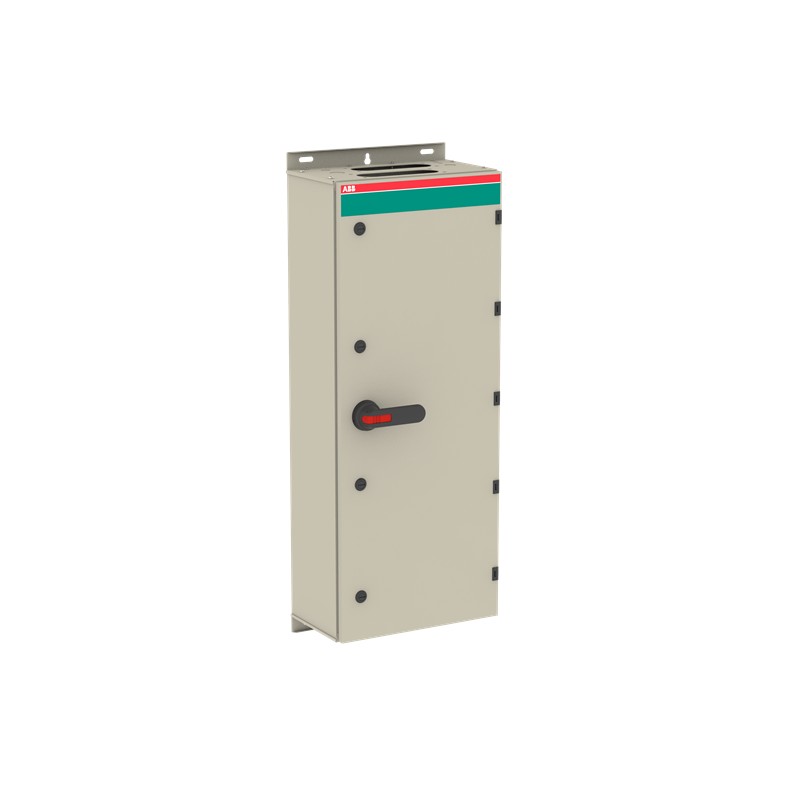

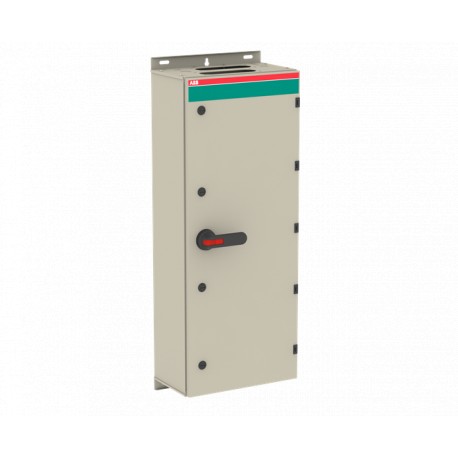

1SCA022340R2390 ABB Int. Boxed disconnector OT630KLCC3TZ
1SCA022340R2390
ABB
Int. Boxed disconnector OT630KLCC3TZ
OT630KLCC3TZ Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 61872965-bce2-42e8-8c0d-f91b20ed4006 Finland |
| Simplified SCIP | 03d08046-7af2-47aa-b6dd-f1ff69935e04 Germany |
| bbf6dc04-d958-4bd9-b9fc-d2762e6da8a0 Belgium | |
| af34e044-6680-48da-b4f3-c56a78bde458 Italy | |
| 2b2f3cf6-3d17-4d79-b7e2-e15f52c0a66b Sweden | |
| ab872207-2058-48e9-a9f8-3125620b4f9b Belgium | |
| b1f94c8c-c163-4a63-b798-a44bc9760bd2 Poland | |
| 577a8b2d-c604-40f2-a2ff-2ce67b3d6fa3 Spain | |
| 2c3ac2d1-b42e-4a12-8aff-082618d89c93 Portugal | |
| 776f1895-a02e-4080-9175-23b1c2a76cf7 Bulgaria | |
| 931c47e7-6f78-4661-9874-69bd366f95bc Hungary | |
| c9895452-23f4-4de6-a437-557af9aab50d France | |
| 5d69649d-b55b-4f64-9dbb-e17481f97f75 Greece | |
| 5baaea42-b976-488b-8527-4452e4857d01 Croatia | |
| 3388542d-a9be-4095-9f15-b5b396432948 Poland | |
| de91a00b-9d9d-4148-bdf2-6812c7183606 Czech Republic | |
| bb53ba1a-0148-4e60-8020-8d86afe10d3b Netherlands | |
| 25fe4985-d582-4ce3-a211-2c8067b43db4 Norway | |
| 27de0452-8359-4a8f-81aa-062b3e956502 Poland | |
| ce9fab5c-4553-4cd1-858b-08ee465c4db9 Estonia | |
| d49b2ad1-f513-4b58-bc81-43634a3e1bfd Hungary | |
| 919a115b-5c02-4bab-94db-7631a2c4d946 Denmark | |
| 0bf95128-7dbc-4859-be41-fdb1f8b918a9 Germany | |
| fb2cbc2f-b99c-4e22-b144-2966e889469b Sweden | |
| c7e65717-0562-4740-96e1-7e7d31db5100 France | |
| cc5a4f64-902a-4345-b34c-08acd8a848d9 Germany | |
| 62708f02-fb79-4e48-80e4-b12b28e7f8d9 Germany | |
| e4d1be02-11f1-451d-9439-9e4f266771d5 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM104023P2C.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 29.35 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 1110 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 31.8 kg |
| Package Level 1 EAN | 6417019116556 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xC-flange / 2xC-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 25 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A |
| (500 V) 570 A | |
| (690 V) 570 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A |
| (500 V) 570 A | |
| (690 V) 570 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW |
| (500 V) 400 kW | |
| (690 V) 560 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 75 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340029D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642731 |
| E-Number (Norway) | 1429114 |
| E-Number (Sweden) | 3140614 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 570 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 570 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 315 kW |
| Switching power at 400 V (EF009166) | 315 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
