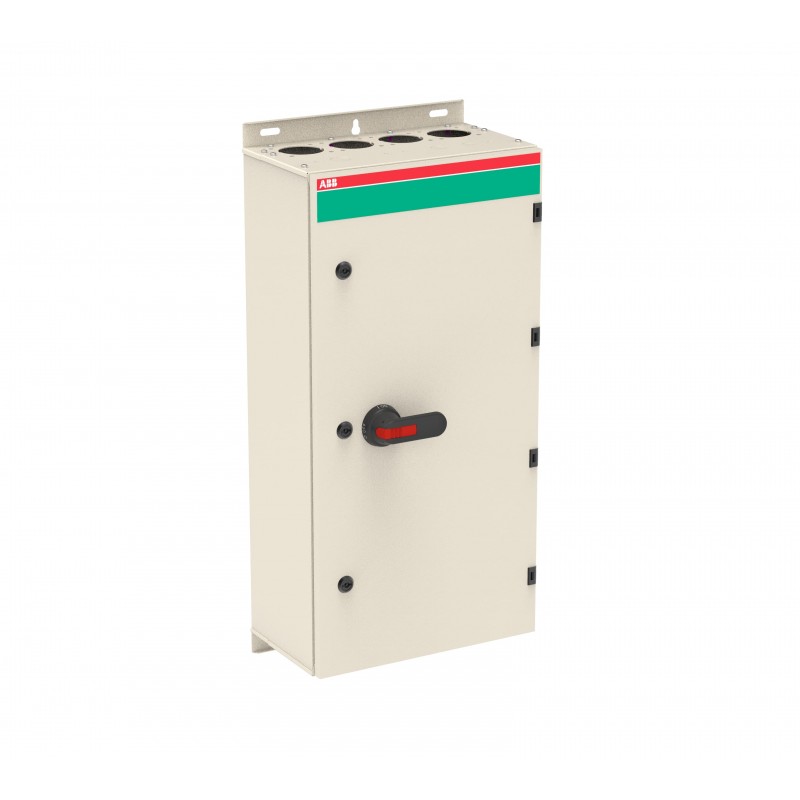

1SCA022340R1910 ABB Int. Box disconnector OT400DLRR3TZ
1SCA022340R1910
ABB
Int. Box disconnector OT400DLRR3TZ
OT400DLRR3TZ Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f7bb3458-100f-4bd1-96c8-2821ec67675e Finland |
| Simplified SCIP | f9216514-6f9e-4057-847b-64f11760a6ef Germany |
| f5d017eb-dfa3-429e-b399-5b0bb1f723d4 Denmark | |
| 91855d18-3d4e-4c63-9899-461428f0eeea Germany | |
| abe0b548-109d-4b07-9683-46700c1f8c2a Germany | |
| 73c66c01-1ca6-4ae0-b3b4-148fff812cd8 Estonia | |
| 9f7c69f1-48ab-4518-9e79-f2590d3b6f74 Hungary | |
| fd5342fc-e8f1-4764-a631-4dede29d91c8 Croatia | |
| b6c41807-983f-4dc2-90e4-7d4a8e38c0ac Poland | |
| 64ba16e7-5c86-4d9b-9f1e-4562e21e0a50 Czech Republic | |
| 9a979c9e-4706-46fe-9b5c-28fd32b126b7 Greece | |
| f2ff22f9-f2de-4e0d-a580-e32b5a70ca61 Poland | |
| 5ceb459a-8d38-4f69-8968-0671784def55 Netherlands | |
| 102c08b5-622f-4f46-a90b-0bdec25c8f2f France | |
| cfc4ba3d-bc2b-42fb-a783-5bcef37f863f Hungary | |
| 1c97df44-164c-46de-8853-5842d59f181c Portugal | |
| 0c3332d0-f31a-4ca6-9ac8-a29bb9320917 Spain | |
| 72363793-d2a5-4540-8c2b-eb814156e73f Germany | |
| 8e0975b3-7cf8-4444-9494-666db8b271de Sweden | |
| 6cdb8b7c-693c-4537-9073-da01d600a509 Germany | |
| dec3fb57-488d-41a4-ae96-efdd7bb613c9 Norway | |
| 42479820-a9d9-421c-abea-a8339df9fe7a Italy | |
| 38604202-115e-4cad-9f52-edecbbfbab65 Belgium | |
| 0bbf21ed-d4d8-4765-9cc1-5eb95c16cf6e Poland | |
| b3fd0df3-6c49-4c2e-8774-fdde6bd7631b Bulgaria | |
| 83b82e3b-4e6c-41a0-a837-41312807c611 Sweden | |
| 50fe86bc-f7b0-4db9-98f5-f72c522e1ea4 Belgium | |
| 1914f7bf-c45d-4ad1-9f9a-7bff51bc8b89 France | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM804023P4R.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 800 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 25.55 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 910 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 27.7 kg |
| Package Level 1 EAN | 6417019116402 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW |
| (500 V) 280 kW | |
| (690 V) 355 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 44 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M10 |
| Tightening Torque | Main Circuit 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642709 |
| E-Number (Norway) | 1429132 |
| E-Number (Sweden) | 3140632 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 400 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 400 A |
| Rated short-time withstand current lcw (EF007050) | 15 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 220 kW |
| Switching power at 400 V (EF009166) | 220 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
