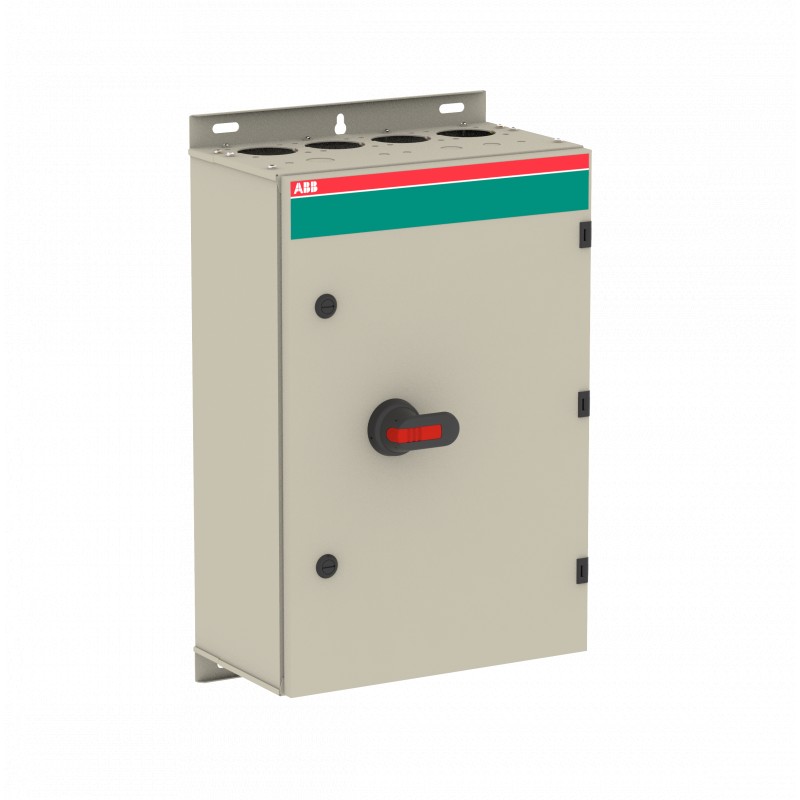

1SCA022340R1150 ABB Int. Boxed disconnector OT250KLRR3TZ
1SCA022340R1150
ABB
Int. Boxed disconnector OT250KLRR3TZ
OT250KLRR3TZ Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 524dbbc1-c27f-457d-8413-fe1c3404757c Finland |
| Simplified SCIP | f641cba6-0d86-40fe-954a-f75771127846 Germany |
| e6d7500b-e5ef-4a83-bb2d-d2390c5db87c Poland | |
| ea33336e-1f93-4163-a299-224a55c47da9 Italy | |
| 17acdd8c-5096-4586-a391-a18efe0a28a1 Belgium | |
| a936dc0f-069b-4f29-b72f-6884b024697a Germany | |
| f136c7d6-d3ad-4271-8529-2ba22ce7f429 France | |
| d428dfdd-63df-42fd-8b1e-93129a686490 Germany | |
| 2ec0f0a9-ed9c-45c2-b369-b7ff71f90696 Greece | |
| e230d242-62f6-4049-9a9c-4fa373fce7b2 Portugal | |
| 102d555d-b5be-495b-b6e1-8e00eef93a5e Poland | |
| b37b650f-2fcc-481d-9a75-43d82466c6f5 Netherlands | |
| 4d11e910-7a91-42d2-95ff-3956aca5b8a0 Bulgaria | |
| 39de5836-ec63-409a-86c9-fae294c66cf9 Poland | |
| cf030adf-204c-4113-8ff0-0033c586d466 Sweden | |
| a42b77a2-a163-45c6-8bc6-2515a57b4d7b Hungary | |
| abe3f121-c739-4495-92e3-628687cd683d France | |
| c30a1a44-0e19-48bb-a233-b604e693f094 Sweden | |
| e40771c8-98eb-4c1b-b269-92c06a77a7c3 Estonia | |
| ac8d9fb8-437b-460b-a5a0-fa55401a59a7 Germany | |
| f8aa848c-d9ef-46ec-9d14-134e51b28df8 Norway | |
| a5e482f4-9155-4cbf-9fc2-a87f13cfcdb2 Belgium | |
| 0b3dce6b-d3b1-4f27-8161-72e3b8dcc80c Denmark | |
| 33beef0c-2450-4a4e-835a-5172996ce9b2 Croatia | |
| 5f78de5c-6cdc-4fc0-8667-b9b4035563ed Germany | |
| a46b386e-ca06-4fe1-bdf6-88d24a031d2c Czech Republic | |
| 922d68e5-b0aa-44ee-964b-65f0898eab36 Hungary | |
| d5494ebe-98d8-4320-9a80-8d037b3ba7d4 Spain | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM604023P4R.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 19.91 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 21.6 kg |
| Package Level 1 EAN | 6417019116112 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 4pc,10 ... 70+4pc M8 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW |
| (500 V) 160 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642705 |
| E-Number (Norway) | 1429128 |
| E-Number (Sweden) | 3140628 |
