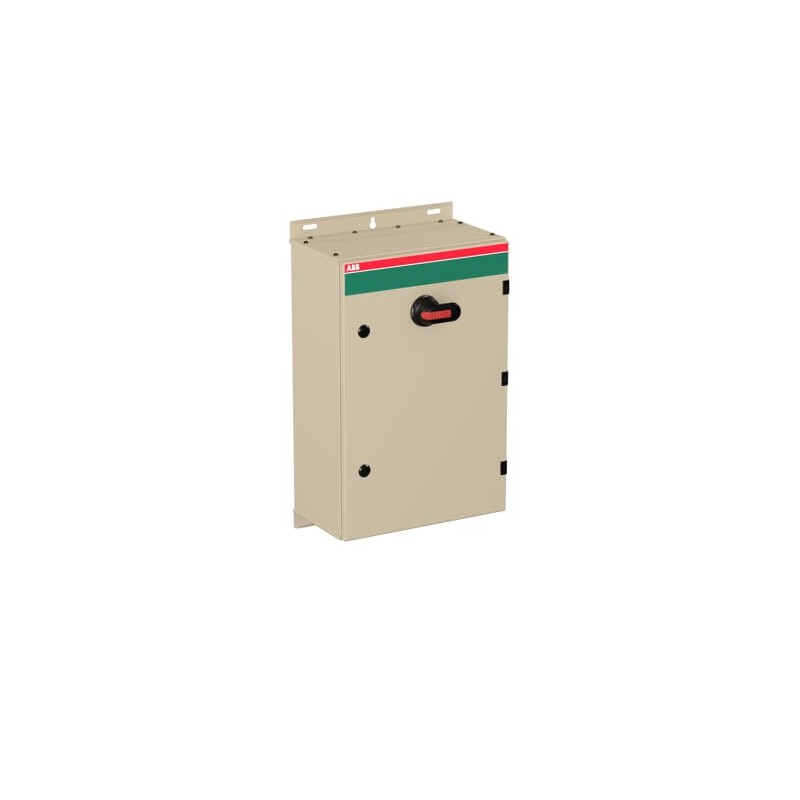

1SCA022281R6820 ABB Int. Boxed disconnector OT200KAUR3TZ
1SCA022281R6820
ABB
Int. Boxed disconnector OT200KAUR3TZ
OT200KAUR3TZ Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 026a69e8-a1d3-4e17-8ec7-b39c58afc7bd Finland |
| Simplified SCIP | eb7b2ced-85ce-48de-884f-44c2abf284a8 Germany |
| 933335bd-6610-4809-8f40-8419ac1f37e8 Poland | |
| c3e206fd-ba67-4b7a-8cd3-f9e19b4ca3cb Italy | |
| d32ae6f5-0ea3-432c-9b6d-24ab641817b9 Sweden | |
| 6a67576a-3716-4305-b563-3b5addc76388 Hungary | |
| 6c3980c3-f0f8-498d-a924-fb7d28f01ac5 Netherlands | |
| 8831fcc7-109d-4cdc-897c-4277d5593605 Poland | |
| 2dc8c75a-938c-4f47-85c0-34e96b36d1ea France | |
| 8dd53dd8-0469-44a9-8510-11f03bb07011 Greece | |
| 1c1c209d-ae78-471e-8f45-f6a8720d460b Bulgaria | |
| 295cdfd8-a90e-4e6a-bc2e-dcd73e1fb8b5 Poland | |
| 38020681-62eb-47c6-9eef-8bbf30e4bb88 Estonia | |
| 60269d63-8641-4b26-82c3-4af5c52435a1 Sweden | |
| ac946b0a-b280-40ad-9ec0-5a44082c297e Czech Republic | |
| 7cf6af2a-c1f1-454e-a147-cb8d365a7c1d Portugal | |
| c54b16ae-3bd9-4fde-800d-24f4dd65df46 Germany | |
| 90121039-08e6-4a69-818b-c79e653f6b26 Germany | |
| edd310cb-aac2-445a-8cb9-cf07d7bd5ae3 France | |
| ed18a0be-abac-47f8-8f56-b451409a7d0b Belgium | |
| 4526634b-bb8d-43f2-9504-70af7ce221e0 Croatia | |
| cf72925a-d8b8-4c6c-81ca-9cc0f675636c Belgium | |
| 36a6e023-cf70-434b-867b-e1701d85bad5 Germany | |
| 775aa0bc-377a-44d2-8a31-65d5c6e56432 Norway | |
| 923094c2-b46b-42d6-b82e-cf15cde58d8c Denmark | |
| 1794b8d0-0071-47b8-a159-83697a348335 Germany | |
| 65dfee2b-591f-468b-9ea3-3d0c52733bfc Hungary | |
| 9cd5947c-0354-4be1-b017-1bc22131b706 Spain | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM604023PBL4R.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 21.91 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 23.6 kg |
| Package Level 1 EAN | 6417019070391 |
| Technical | |
| Cable Entry Position | Bottom/Bottom |
| Cable Outlets Per Side | Blank / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Bottom In - Bottom Out |
| Position of PE Terminals | Bottom In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| (500 V) 132 kW | |
| (690 V) 160 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642803 |
| E-Number (Norway) | 1429146 |
| E-Number (Sweden) | 3140666 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 200 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 200 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 110 kW |
| Switching power at 400 V (EF009166) | 110 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
