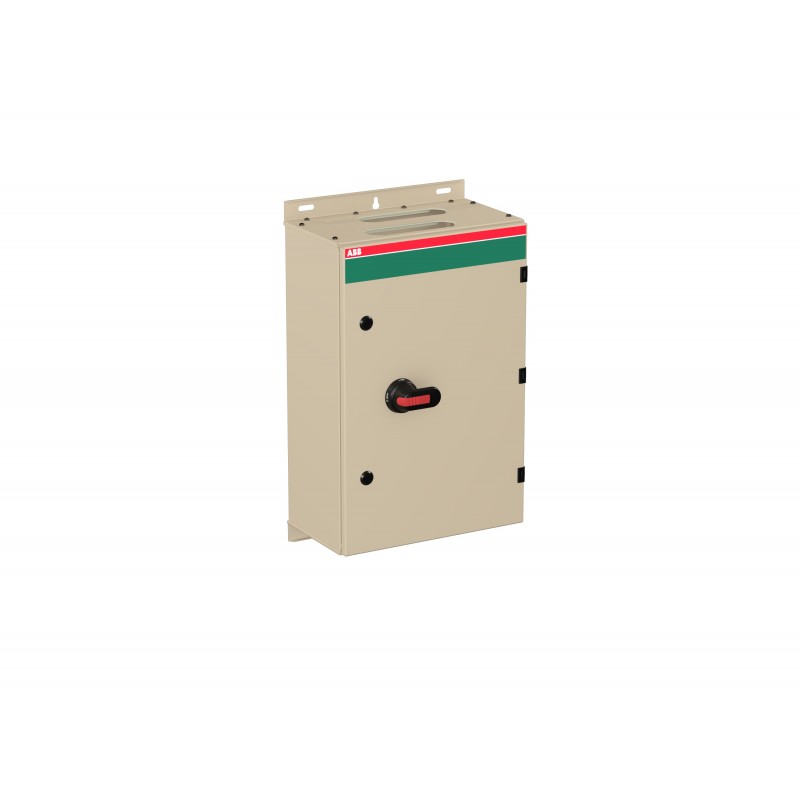

1SCA022281R5850 ABB Int. Boxed disconnector OT315KLCC3TZ
1SCA022281R5850
ABB
Int. Boxed disconnector OT315KLCC3TZ
OT315KLCC3TZ Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 02111b7d-d14a-4f90-bc44-cfbf9b1b56c6 Finland |
| Simplified SCIP | b29f9ac4-58bc-459e-a508-0218e6b06db2 Germany |
| 679626b0-f6a4-4016-80c7-e3b4faa80387 Poland | |
| 591ac1f4-9186-442b-a8fc-5a323788810e Belgium | |
| 9ac66def-3cdd-4935-9ca2-34a11fed1711 Hungary | |
| 4deb7650-40f7-49b7-8cb3-066dad31d24d Spain | |
| d2d2c503-3b09-4cf6-bf9e-703e7c4997ad Sweden | |
| 93bb9ac3-6198-42cd-b410-ad53bf464fba Estonia | |
| 0cd1df28-a7b8-487b-9b78-c4ff3f5a7314 Sweden | |
| 7019fda5-b6ae-49bb-99ef-e205919dca53 France | |
| 23d19542-a81c-40a5-926d-17d9acc62d2b Netherlands | |
| 72e5b010-f2a5-42b4-80a3-4dc311d9294b Poland | |
| 157cc848-7053-4746-9ab9-04beb16c4330 Greece | |
| edbafe81-500f-4bef-bf0b-413b310e8e43 Bulgaria | |
| 01eac6fc-79dd-40a8-875f-f8085cfe8c2d Poland | |
| af485235-fc67-49f4-b138-39317d6a081f Portugal | |
| 83455545-290e-443e-acfc-e0177c318553 Hungary | |
| d1eb2094-405a-4d89-9e52-de11e84c7872 Czech Republic | |
| dcdc1df8-0779-44ab-9617-c8f0cecbb8a9 France | |
| d4a9b0a1-4782-4c45-a849-57ff71a12088 Germany | |
| 8510cefa-e0d6-438d-bfe7-46e7f4d7bdf6 Germany | |
| 0449ef19-93ac-4d03-8a52-83b98c60f46c Denmark | |
| df8a31b2-6f21-4c51-91ca-1cae42970dff Germany | |
| 822d6d3a-166f-4c51-a2aa-5d64123fdc9e Belgium | |
| 58d18729-575d-455f-9659-a967f4d56557 Croatia | |
| c5e6e1fc-9c8a-41a4-abe6-7853719b7a3c Italy | |
| 73fa116e-140e-434b-acca-1231e1e0199a Germany | |
| 9f62627d-baa3-4440-a5d2-1fd8a0ddc7e8 Norway | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM604023P2C.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 19.91 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 21.6 kg |
| Package Level 1 EAN | 6417019070346 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xC-flange / 2xC-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm |
| Screw Clamp / PE Terminal 4pc,10 ... 70+4pc M8 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 160 kW |
| (500 V) 200 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 44 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M10 |
| Tightening Torque | Main Circuit 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642727 |
| E-Number (Norway) | 1429110 |
| E-Number (Sweden) | 3140610 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 315 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 315 A |
| Rated short-time withstand current lcw (EF007050) | 15 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 160 kW |
| Switching power at 400 V (EF009166) | 160 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
