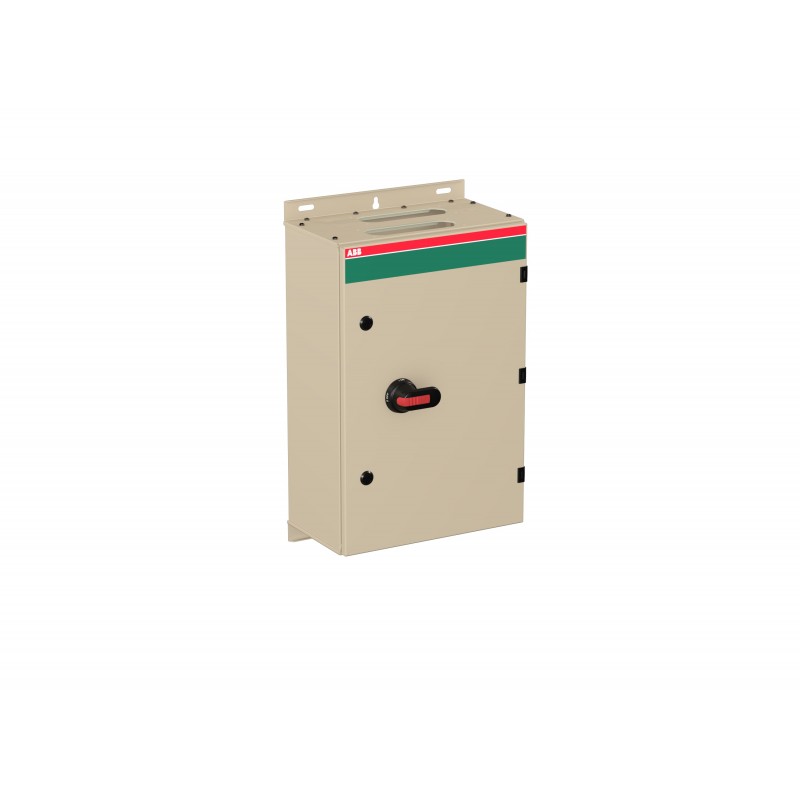

1SCA022281R5420 ABB Int. Boxed disconnector OT200KLCC3TZ

Reference: 1SCA022281R5420

Manufacturer: ABB

Description:

Int. Boxed disconnector OT200KLCC3TZ
OT200KLCC3TZ Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.110,88 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP11c71cd7-7a20-4bf9-9743-6ae0269e13e6 Finland
Simplified SCIP3a05348a-8877-4c76-b6b7-56f5ea0e9294 Germany
f105de05-bb44-4694-bc8a-2e20898386cc Poland
9395a740-08ee-4a9b-aafe-52051835b13e Italy
1ff61834-2dd1-48aa-b7fb-ee9681e1c42f France
2a7d4eb3-ec63-494d-afa5-8edaeadac0df Poland
d60c796e-2494-4ace-a131-cdd24b61bb41 Netherlands
16c964c7-53a2-495c-9f7c-5131dc4277bf Hungary
24a792ed-98ed-4175-b8ce-3a93fbad5615 Sweden
9144f09b-184c-4974-b6f3-497209cca9ec Greece
9c479802-3462-4011-a099-27123e4499d2 Poland
d6a76f6c-6bff-4edc-9994-1e0ce19a3cdb Portugal
459dfa34-47d0-4b7d-945b-211f864285de Bulgaria
a77132da-caf1-4ec9-9126-62dc2da89c08 Estonia
84a1e720-a12f-4457-8cb8-d54e252a326b Sweden
565fa80b-7107-4cc9-864d-5ddbaa06928a Czech Republic
e6ce435f-ede6-4d66-9d2d-7dfab103a71d Germany
b2a7affc-87aa-411a-ad68-1f2594fdf861 Germany
5a88e11f-e0d1-4cde-9efd-6108fe754c20 France
8652e837-7613-4282-97cb-7290d776183a Belgium
d922c263-b731-4dbb-9485-870458e85373 Belgium
8fdb66ea-5df5-482f-91b9-3c7ce0495a65 Croatia
116da4f7-a3b3-4b09-ae30-fd920d7386e7 Germany
994b5388-de1a-48eb-a433-3b926d1d7ba7 Germany
82a456ca-64a7-4b13-b639-28d0043f4478 Norway
005a5746-bb13-406f-b26c-b1c8b8b89288 Denmark
14cd13d9-4f9f-4bae-b6fa-2c164f6b24a0 Hungary
c8a2531e-56d1-44d6-a672-a717f54e1ad4 Spain
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340016M0005
Mechanical DrawingsOTKM604023P2C.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width400 mm
Product Net Height600 mm
Product Net Depth / Length230 mm
Product Net Weight19.31 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width415 mm
Package Level 1 Depth / Length710 mm
Package Level 1 Height325 mm
Package Level 1 Gross Weight21 kg
Package Level 1 EAN6417019070322
Technical
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xC-flange / 2xC-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm
ColorRAL7032
Connecting Capacity Main CircuitHole Diameter 8 mm
Screw Clamp / PE Terminal 2pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialSteel sheet
Handle ColorBlack
Handle TypePistol handle
Impact Resistance RatingHousing IK09
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts2 NO, 1 NC
Neutral TypeNo Neutral Terminal
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO2
Number of Poles3P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (Inc)40.5 kA
Rated Insulation Voltage (Ui)750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 160 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Recommended Screw DriverMain Circuit M8
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 22 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M8
Tightening TorqueMain Circuit 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340025D2704
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
E-Number (Finland)3642723
E-Number (Norway)1429106
E-Number (Sweden)3140606

ETIM for 1SCA022281R5420 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueYes
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value200 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value200 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value200 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value110 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value110 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameHousing colour (EF000136)
Feature valueOther
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameWith pre-assembled cabling (EF016444)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWidth (EF000008)
Feature value400 mm
Feature nameHeight (EF000040)
Feature value600 mm
Feature nameDepth (EF000049)
Feature value230 mm
