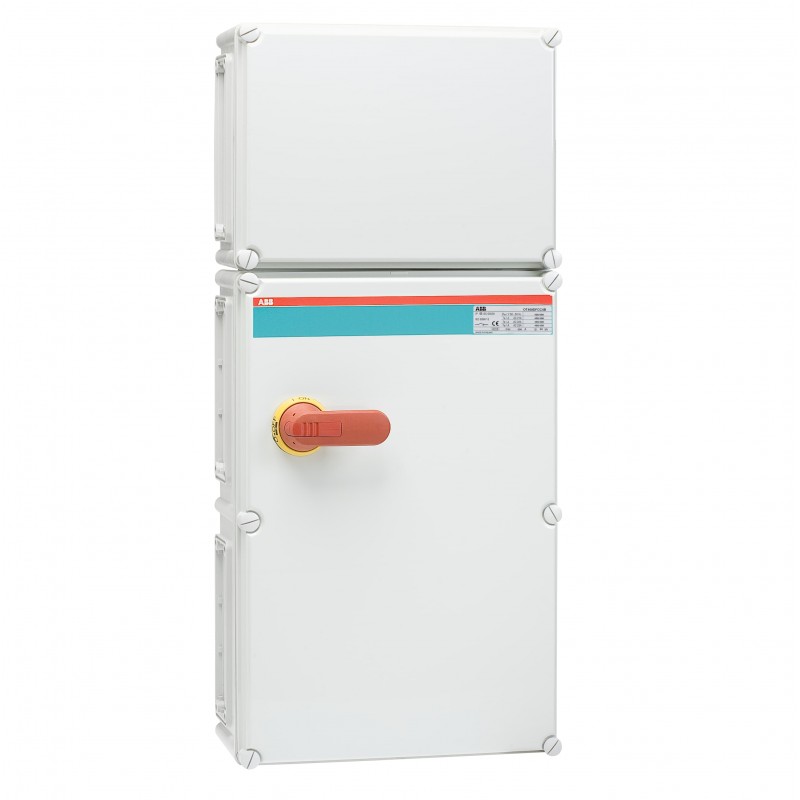

1SCA022278R3120 ABB Int. Boxed disconnector OT400DFCC3A
1SCA022278R3120
ABB
Int. Boxed disconnector OT400DFCC3A
OT400DFCC3A Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d66531c7-2104-4bcc-9ff2-e7914791ecde Finland |
| Simplified SCIP | b4d3216b-64aa-492b-b4e0-1d1eb681f50c Germany |
| ba2d0935-81a9-418f-9f64-e319cbb71710 Germany | |
| 557cd5fc-ff5c-4952-a30a-a3b7da97d432 Italy | |
| e5aafe2c-9584-40a8-9e64-274bd82e48a0 Poland | |
| c7a86f64-89a6-457c-964a-0951aade1a64 Norway | |
| ba3c1961-3dca-4279-94eb-612b4f128ffb Hungary | |
| fec02772-98fe-4dc6-bdad-5e4f3cae58c7 Estonia | |
| d07fb61d-fb98-4207-89d7-fe997fb13741 Poland | |
| c628038c-3b2d-45b2-9ba1-ad37ef6dfe4d Portugal | |
| 148a68dd-b18d-4a12-b919-96cb4ab912b4 Czech Republic | |
| f5f2cc89-fc25-42d0-94e7-e5d7a6bc6d2a Croatia | |
| 5f9d8ade-6e3a-414c-9809-daef8a13867d Greece | |
| 655a1a5c-c742-4e32-8ac3-d8e73b0260c3 Netherlands | |
| 2cda083c-48fb-4ea8-a10e-add387664c3c France | |
| b55be6a7-21f4-4126-b450-5259e8087173 Hungary | |
| e0c0be52-cc97-4db5-a5cc-6cb1bb7605cc Bulgaria | |
| dbbf4de9-1111-47a7-ba1c-b35c3ecfd142 Spain | |
| e9f01347-e332-4662-91ab-db59e4adbbd0 Belgium | |
| 6cfb01d0-8749-43ec-8f2b-21ff371be19e Belgium | |
| ba6bfca6-11f6-422a-96d4-a6de6ca52259 Poland | |
| f23e135a-c092-45a4-b114-678db727767a Sweden | |
| bc5488f7-fcb5-4d1c-8835-81912bd9bab8 Germany | |
| 0c30e527-7d8f-403e-8a81-c42ef3428794 Germany | |
| c778cfe5-970b-438c-a4b4-27f157e336db Denmark | |
| 7b71ba6b-650b-4d55-8b35-6217096bfc1a Germany | |
| 47d1e395-ba08-4aa4-8c3b-b1b9214435b2 Sweden | |
| 53ed0b84-747b-4f56-88c2-f0e0051ba434 France | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 380 mm |
| Product Net Height | 840 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 13.806 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 910 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 16 kg |
| Package Level 1 EAN | 6417019064468 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW |
| (500 V) 280 kW | |
| (690 V) 355 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 44 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M10 |
| Tightening Torque | Main Circuit 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 400 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 400 A |
| Rated short-time withstand current lcw (EF007050) | 15 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 220 kW |
| Switching power at 400 V (EF009166) | 220 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
