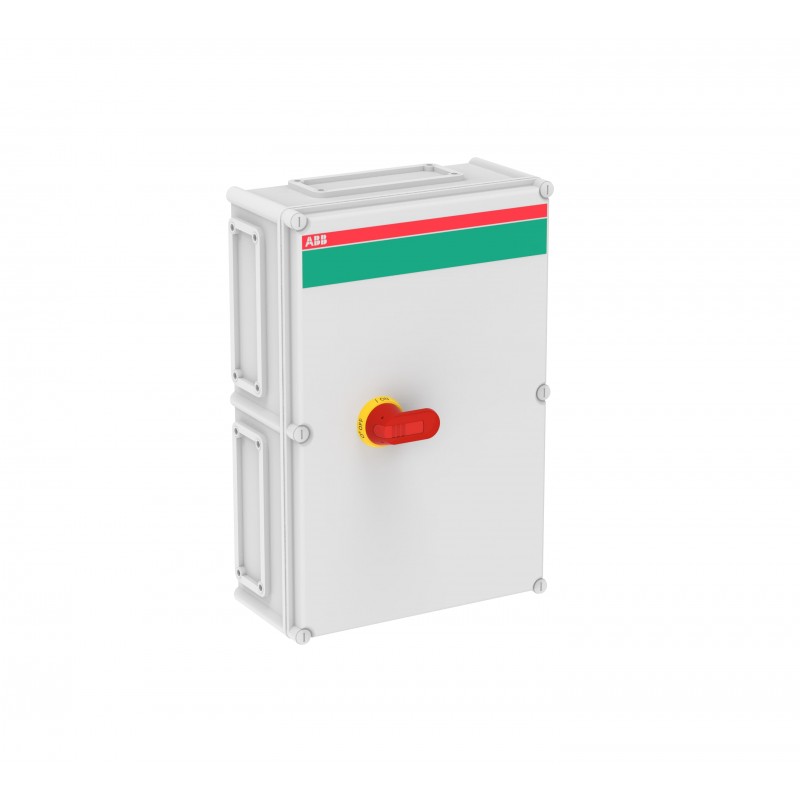

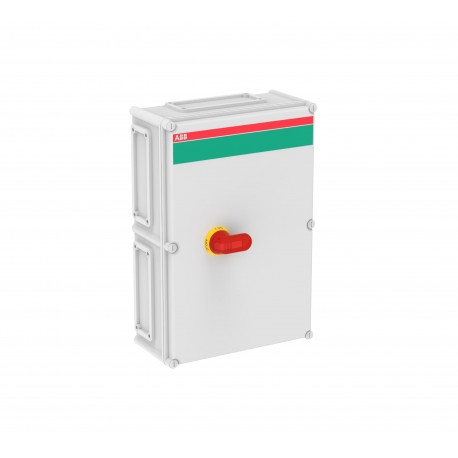

1SCA022278R2580 ABB Int. Boxed disconnector OT315KFCC3A
1SCA022278R2580
ABB
Int. Boxed disconnector OT315KFCC3A
OT315KFCC3A Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | be96cf5a-0772-4fd9-ae82-87fd190e6b26 Finland |
| Simplified SCIP | 3eee0f41-2bba-4223-979e-c2d6443680fc Germany |
| 8923f290-82c9-48c6-a753-5a1ac6b689eb Germany | |
| f8e1ea76-9ebf-4424-827e-255879c5f23e Portugal | |
| 09346227-b9a7-4239-a183-3dea4cb92c56 Poland | |
| 8497bc4b-9291-40a6-a896-ec988810699a Bulgaria | |
| ca07416c-4ad7-4ea4-8f32-88b8eb4f135e Spain | |
| f460cf2d-eaaf-49a7-8c80-ae84f7c4669b Norway | |
| 87adbb02-3b53-452a-b215-29b160b8c670 Belgium | |
| cbcf1b58-3ef0-419e-b2ce-8693fd996392 Poland | |
| 47509fea-e876-4459-9a23-1b1c2662c4fa Sweden | |
| f6ed42b5-cd36-4e1e-ba36-2f2316cb13cb Germany | |
| 6da92a0d-6983-4bc4-9022-007ddbb54160 Hungary | |
| f233756f-2d6c-4a95-80f4-94617b231a37 Italy | |
| 3e8f6f52-c4b0-4843-9069-f0e0bcc58b7c Germany | |
| 87adbb02-3b53-452a-b215-29b160b8c670 Belgium | |
| 24b8b3ba-cdef-402a-999a-af01ce2fd2a0 France | |
| 3efc53dd-fa48-4ef6-baad-e9d431dc6336 France | |
| fc94ad37-e7c6-43db-8ff8-70256e397282 Denmark | |
| ca07416c-4ad7-4ea4-8f32-88b8eb4f135e Spain | |
| cbcf1b58-3ef0-419e-b2ce-8693fd996392 Poland | |
| f8e1ea76-9ebf-4424-827e-255879c5f23e Portugal | |
| 11ae7816-d4da-42c9-ae96-f5afe1fdbcd3 Greece | |
| f33f6d6c-d303-4886-b875-132889ffef8d Estonia | |
| a3e177b6-deba-4775-93be-2a6a7bde0f17 Hungary | |
| 56812a2e-8245-47a9-9fcb-669de59846f5 Germany | |
| 16afc393-a0fe-47fa-a3a3-c7eba2b9b12a Sweden | |
| 24b8b3ba-cdef-402a-999a-af01ce2fd2a0 France | |
| a3e177b6-deba-4775-93be-2a6a7bde0f17 Hungary | |
| f6ed42b5-cd36-4e1e-ba36-2f2316cb13cb Germany | |
| 494ef0cb-0741-4b94-aaae-ecc7d9f2ec26 Netherlands | |
| 10958e09-a974-4018-a35d-d09a69072d75 Poland | |
| 4a4e8a47-ab53-47ad-bb24-7db5c6da0e05 Czech Republic | |
| 11ae7816-d4da-42c9-ae96-f5afe1fdbcd3 Greece | |
| f33f6d6c-d303-4886-b875-132889ffef8d Estonia | |
| 4a4e8a47-ab53-47ad-bb24-7db5c6da0e05 Czech Republic | |
| 8972a32d-5935-4fee-9020-8d9f20232f56 Croatia | |
| 10958e09-a974-4018-a35d-d09a69072d75 Poland | |
| 8923f290-82c9-48c6-a753-5a1ac6b689eb Germany | |
| f233756f-2d6c-4a95-80f4-94617b231a37 Italy | |
| 8497bc4b-9291-40a6-a896-ec988810699a Bulgaria | |
| 494ef0cb-0741-4b94-aaae-ecc7d9f2ec26 Netherlands | |
| f460cf2d-eaaf-49a7-8c80-ae84f7c4669b Norway | |
| 148a060b-a2a0-4046-8801-c033605999ca Belgium | |
| 148a060b-a2a0-4046-8801-c033605999ca Belgium | |
| 09346227-b9a7-4239-a183-3dea4cb92c56 Poland | |
| 47509fea-e876-4459-9a23-1b1c2662c4fa Sweden | |
| 8972a32d-5935-4fee-9020-8d9f20232f56 Croatia | |
| fc94ad37-e7c6-43db-8ff8-70256e397282 Denmark | |
| 3e8f6f52-c4b0-4843-9069-f0e0bcc58b7c Germany | |
| 6da92a0d-6983-4bc4-9022-007ddbb54160 Hungary | |
| 3efc53dd-fa48-4ef6-baad-e9d431dc6336 France | |
| 56812a2e-8245-47a9-9fcb-669de59846f5 Germany | |
| 16afc393-a0fe-47fa-a3a3-c7eba2b9b12a Sweden | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Mechanical Drawings | OTPK563818PII.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 380 mm |
| Product Net Height | 560 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 7.766 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 9.7 kg |
| Package Level 1 EAN | 6417019064437 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 160 kW |
| (500 V) 200 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 44 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M10 |
| Tightening Torque | Main Circuit 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 315 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 315 A |
| Rated short-time withstand current lcw (EF007050) | 15 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 160 kW |
| Switching power at 400 V (EF009166) | 160 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
