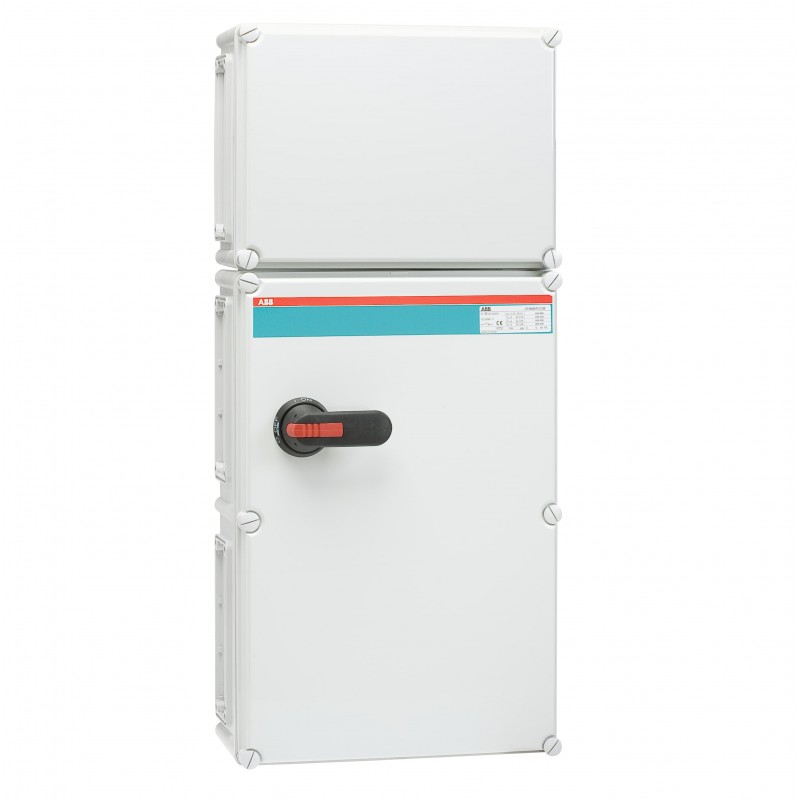

1SCA022277R0490 ABB Int. Boxed disconnector OT400DFCC3T
1SCA022277R0490
ABB
Int. Boxed disconnector OT400DFCC3T
OT400DFCC3T Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 3fba797c-37e6-485d-b2b9-f5c5f3da3053 Finland |
| Simplified SCIP | a896705e-e89d-4fc2-bb45-cfbbc2113123 Germany |
| 33a6131a-e412-4906-9093-8771f82a16ad Norway | |
| 7fb0dc93-bb96-4040-b7c4-837652850a61 Hungary | |
| a82183b5-3266-40bb-bf6a-9251aa17685c Estonia | |
| 57074bea-f833-4840-bc68-c5358a56c807 Croatia | |
| 2893db37-5192-4f7f-a276-0d49edfd0770 Greece | |
| b0d84869-240b-4e49-9299-737d45a92fc2 Netherlands | |
| d19a2106-89df-4f74-a127-7cfc8df8783f Czech Republic | |
| 3280c8f3-d8da-4a76-8813-9f7e2d6c07db Poland | |
| 5271e441-926b-4137-b18e-0ce9d111a5a8 France | |
| 76e54d9c-8006-4d81-a020-11e57d0b6c87 Spain | |
| 93ecc24a-8def-407f-96a7-72832c1fa7b4 Bulgaria | |
| 85b2da21-bced-4da6-9556-992e76a3930f Portugal | |
| 4409a7ce-e86a-4c14-ba07-facd2ace16cf Hungary | |
| aedc0196-a7cc-438d-9f3f-a645daf4eefc Germany | |
| e260ac80-7e59-49cc-9b9d-8c55f42c30bd Italy | |
| 9436fe95-b05b-429d-aa03-46691a60af94 Belgium | |
| d7851f1e-3cf0-40a2-863b-16db9a625fc2 Poland | |
| d5707dbe-e48a-4228-8e1c-ba3bef8426c6 Sweden | |
| 3693534e-1859-49dd-9348-305e8b34da63 Belgium | |
| f01840e2-f478-484d-8e61-69cf2c7aee89 Germany | |
| 97f5e049-7983-4db7-aaaf-aa5028f0ba2a Poland | |
| 778cddd3-5549-40fc-9a47-31cfa3070ab5 Germany | |
| 5dc70f57-00f6-4cb8-992f-c75e6d068cfa Germany | |
| b0d0dc25-afdb-4ca6-a720-b84be62f8392 Denmark | |
| 9018717d-cdfb-4d01-8e80-d58ad97f8f9c France | |
| 11889ba3-7b24-4c7a-8a35-cfff3f1e49b2 Sweden | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 380 mm |
| Product Net Height | 840 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 14.206 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 910 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 16.4 kg |
| Package Level 1 EAN | 6417019063331 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW |
| (500 V) 280 kW | |
| (690 V) 355 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 44 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M10 |
| Tightening Torque | Main Circuit 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642416 |
| E-Number (Norway) | 1429312 |
| E-Number (Sweden) | 3140234 |
