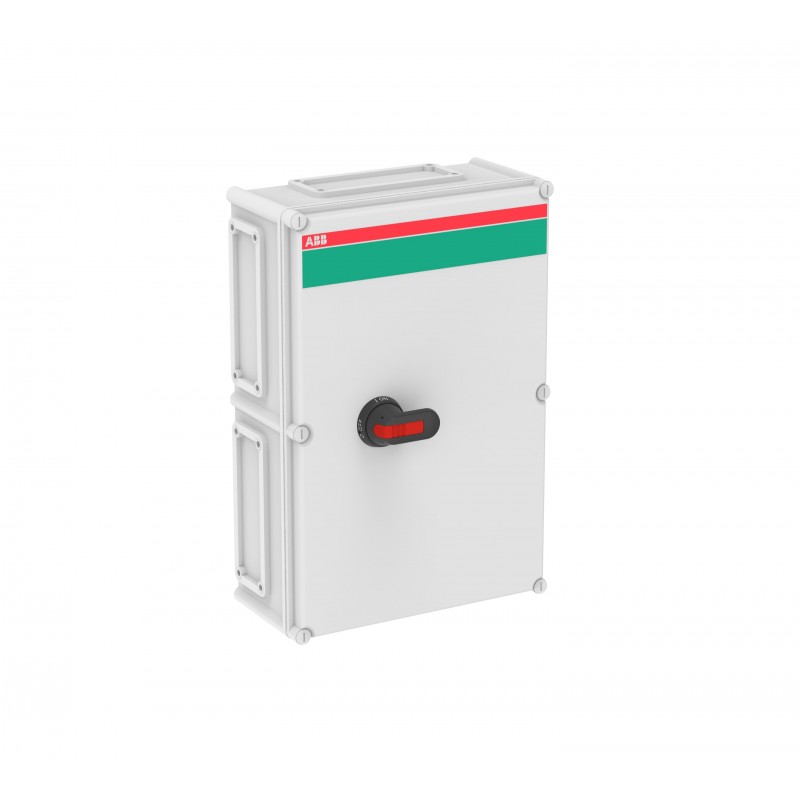

1SCA022277R0220 ABB Int. Boxed disconnector OT315KGCC3T

Reference: 1SCA022277R0220

Manufacturer: ABB

Description:

Int. Boxed disconnector OT315KGCC3T
OT315KGCC3T Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.845,13 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP0854d0ee-50d4-4938-99e8-1c3a71437af6 Finland
Simplified SCIP617c639f-b86f-4234-aabb-f59502e1ab60 Germany
5a3bbba8-af23-4feb-a212-303d9db6e762 France
4dce9729-ebc4-40ae-a814-8fa1fcc6a757 Poland
f42274ab-94f0-489a-a336-5d8b3a5c47ee Poland
baf2c238-11dd-47b2-b930-4bf84ce7707d Bulgaria
3ae470c0-5fb0-4adc-9872-4b3402914154 Portugal
3610cf18-8cbe-4cd5-8e5d-cccaf07619cc Denmark
557e2ae6-3ee2-4c1d-861f-897e5f2787af Sweden
cd361a9e-97d2-4700-a53b-66b50f48b728 Greece
9c867b92-03e9-432c-83c1-473d7e416c4d Croatia
7214a3d0-582a-4c7f-9904-5ce49ab4d691 Czech Republic
25f534df-0e7a-44fd-80b9-760ea24d7675 Belgium
84b23cfa-f431-4875-a29c-8383d528b977 Poland
3dc3d828-8e01-40eb-a87f-08b33aeb7cc9 Norway
4512dbff-7e78-4d84-bc8a-318663ebdfe6 Hungary
a228dcf2-be9b-43d8-9318-3a7d651eb33e Italy
7ad910a4-6ebb-4d16-9fcd-de00756a1599 Spain
6c9d7b6b-bbca-45a6-b6a1-1ba5bb5ef483 Hungary
23d60ecb-b779-47db-8d89-b83393a0a240 Netherlands
6937628f-a50e-4e61-8c6e-6c3d3ed1de22 Germany
0539d41e-dd3c-4535-ba00-d710a8820550 Germany
6185cf85-f8f0-44c7-abb6-7c119b54984c Estonia
325e99d6-52d2-4736-87e8-bdc49a53e301 Germany
5ee92bae-468f-4945-a3bf-855413838dea Sweden
fb5ac46c-4206-4e8c-8999-7d3c403395fe France
51f0c1da-5cf0-4cd8-adf5-cee365fc23ab Germany
ad076fb3-2768-42cd-8c08-07049c6bc2be Belgium
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340015M0004
Mechanical DrawingsOTPK563818PII.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width380 mm
Product Net Height560 mm
Product Net Depth / Length180 mm
Product Net Weight7.366 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width415 mm
Package Level 1 Depth / Length710 mm
Package Level 1 Height325 mm
Package Level 1 Gross Weight9.3 kg
Package Level 1 EAN6417019063324
Technical
Cable Entry PositionBottom/Bottom
Cable Outlets Per SideII-flange / II-flange
ColorRAL7035
Connecting Capacity Main CircuitHole Diameter 10 mm
Screw Clamp / PE Terminal 4pc,25 ... 120 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 315 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorBlack
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts2 NO, 1 NC
Neutral TypeNo Neutral Terminal
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO2
Number of Poles3P
Pollution Degree3
Position of Line TerminalsBottom In - Bottom Out
Position of PE TerminalsBottom In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)61.5 kA
Rated Insulation Voltage (Ui)750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 160 kW
(500 V) 200 kW
(690 V) 250 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 15 kA
Recommended Screw DriverMain Circuit M10
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 44 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M10
Tightening TorqueMain Circuit 44 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340025D2704
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
E-Number (Finland)3642413
E-Number (Norway)1429340

ETIM for 1SCA022277R0220 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueYes
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value315 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value315 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value315 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value15 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value160 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value160 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameHousing colour (EF000136)
Feature valueOther
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameWith pre-assembled cabling (EF016444)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWidth (EF000008)
Feature value380 mm
Feature nameHeight (EF000040)
Feature value560 mm
Feature nameDepth (EF000049)
Feature value180 mm
