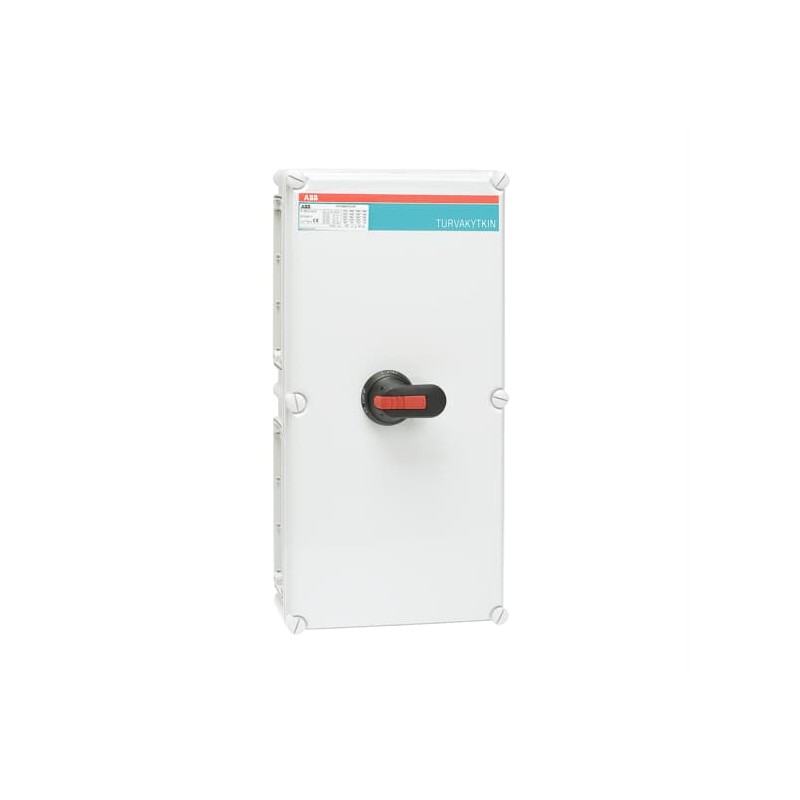

1SCA022276R8830 ABB Int. Boxed disconnector OT250KFCC3T

Reference: 1SCA022276R8830

Manufacturer: ABB

Description:

Int. Boxed disconnector OT250KFCC3T
OT250KFCC3T Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 811,45 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP17fd61fa-5bdf-405f-b479-6e410e31a63d Finland
Simplified SCIPedb7c5ed-91ee-4879-89c3-4ed40ae8612d Germany
89e8acd3-33b3-47c9-a760-d594a45a87f0 Poland
3c5fa5fe-de7b-4097-b6e7-4997cdb53b6f Spain
bfa28274-3760-47c5-b5c3-58198103767b Belgium
73a6b23e-2bda-4e2d-ae99-d43b4475548a Hungary
134c6c9d-d707-4666-b9e8-7ab570805edf Poland
695c241d-f03b-4275-a985-81f056907fc6 Bulgaria
0f93d6a4-3124-4cfa-87de-34ab2bcf25f5 Greece
b9d0e652-f8fc-43fe-98fa-8b52f8e2dda0 Portugal
774c123d-5677-40ff-ba69-333482efe3d2 Sweden
5d8c58f4-80c6-4c1e-8ef0-279c721b51ba Estonia
a9fbefe5-60c4-4f68-8d47-6e21060684d5 Hungary
9f523786-1992-473b-b53d-ef1ef9419772 Poland
b606eca1-d121-404b-a86b-22c72a4806bf France
c3c0839b-1bfb-4b18-8703-1c332424df3d Czech Republic
aa889c2e-4237-4b3d-b1e9-573b0be57f32 Germany
2e4f4b04-9f29-4f06-8101-dc82edc8fced France
b010d8f4-a301-43af-8e70-ae3af9f57e18 Germany
56d30019-d24c-4085-a8a7-341f0ed01bd3 Netherlands
e7921484-446d-41bc-8953-fdf9f36b5dc2 Sweden
b8387355-0060-4a9f-ab74-1877b666ed24 Italy
e009dfcc-8e26-4c43-9277-6dfaff613950 Germany
e7eaad53-84bd-4943-8425-62c4ca58881a Croatia
17114208-0521-4ef0-b305-36d676a0e0bc Belgium
73218bb2-51d6-4f4d-ba28-26dcb446bd93 Norway
b0719754-1cdd-40cc-b945-bde7b8128211 Denmark
1bc80046-df67-4507-8a47-f1dfd7d3162a Germany
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340015M0004
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width280 mm
Product Net Height560 mm
Product Net Depth / Length130 mm
Product Net Weight7.063 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width415 mm
Package Level 1 Depth / Length710 mm
Package Level 1 Height325 mm
Package Level 1 Gross Weight9.3 kg
Package Level 1 EAN6417019063256
Technical
Cable Entry PositionTop/Bottom
Cable Outlets Per SideII-flange / II-flange
ColorRAL7035
Connecting Capacity Main CircuitHole Diameter 8 mm
Screw Clamp / PE Terminal 2pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 250 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorBlack
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts2 NO, 1 NC
Neutral TypeNo Neutral Terminal
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO2
Number of Poles3P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)40.5 kA
Rated Insulation Voltage (Ui)750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 132 kW
(500 V) 160 kW
(690 V) 200 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Recommended Screw DriverMain Circuit M8
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 22 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M8
Tightening TorqueMain Circuit 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340025D2704
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
E-Number (Finland)3642406
E-Number (Norway)1429308
E-Number (Sweden)3140230

ETIM for 1SCA022276R8830 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueYes
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value250 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value250 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value250 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value132 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value132 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameHousing colour (EF000136)
Feature valueOther
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameWith pre-assembled cabling (EF016444)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWidth (EF000008)
Feature value280 mm
Feature nameHeight (EF000040)
Feature value560 mm
Feature nameDepth (EF000049)
Feature value130 mm
